RVS ISO Frame Kit

What if tuning just… wasn’t part of the process?

Built to eliminate resonance, designed for every style of flight, and engineered for pilots who just want to plug in and fly.

The RVS ISO isn’t just a frame—it’s a platform. After 2+ years of refining, crashing, and iterating, this frame delivers:

• Clean flight on a default tune
• Extreme durability without unnecessary weight
• Full modularity for any pilot, and any mission

Whether you’re chasing cinematic lines, aggressive freestyle, or long-range efficiency, the RVS ISO adapts to your need.

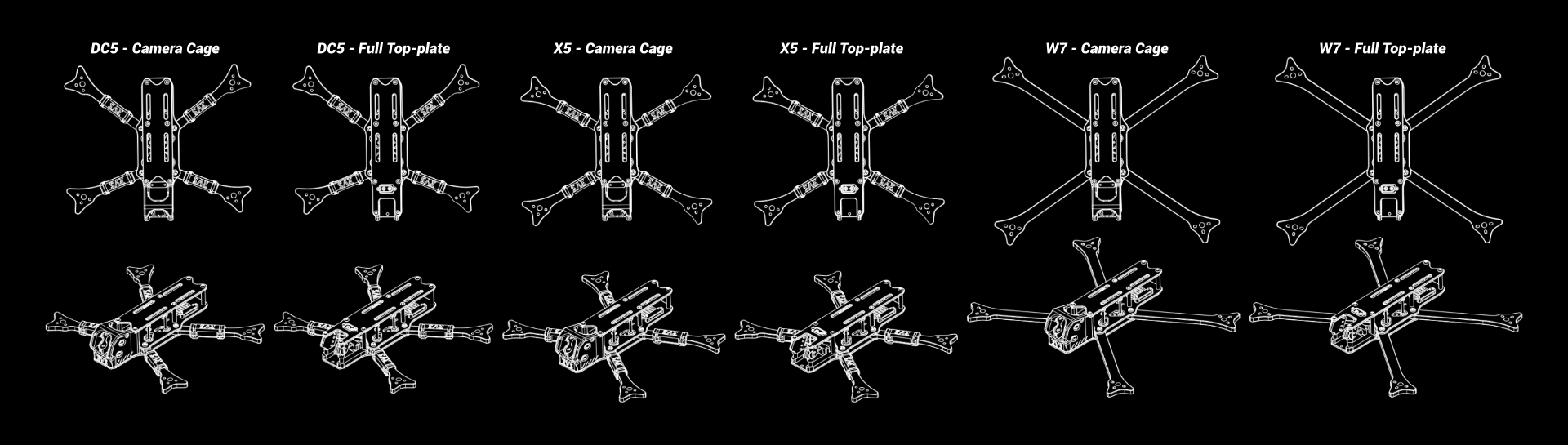

Configuration / Modularity

One Frame. Any Setup.

• DC5 – Smooth, controlled cinematic flight
• X5 – Aggressive freestyle, tuned for peak performance
• Wide 7" – Long-range efficiency and stability

Plus, you can choose a traditional top plate or a camera cage setup for added protection. Swap arms, top plate, or cage in minutes—no rebuilding from scratch.

Performance & Build Features

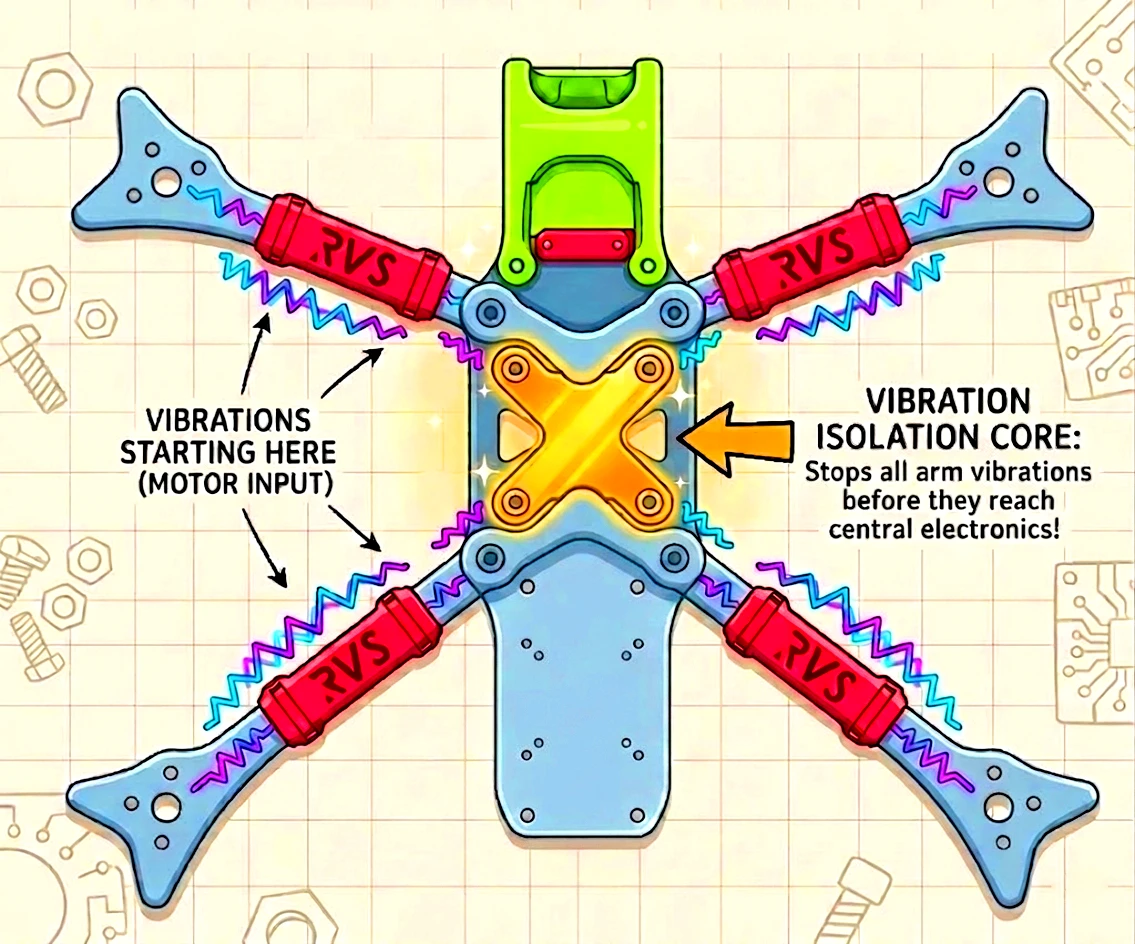

• RVS Isolated Core Technology – Clean flight without PID headaches
• Push Your Tune Further – Designed for pilots who want maximum tuning headroom
• Fully Modular Design – Arms, top plate, and camera cage customizable
• RVS Solder Free System Compatible – Stack and motors (X5 arms only)
• Smooth Chamfered Carbon Fiber – Premium finish and feel
• Center-Mounted Stack – Simplifies wiring and builds
• Full Motor Wire Protection with integrated landing pads
• Single-Screw Arm Swaps for rapid repairs
• Grade 12.9 Hardened M3 Hardware Throughout
• All 3D Files Included – Print, customize, and make it your own
• Compatible with All Mainstream Video Systems

Trust & Credibility

• 30-Day Satisfaction Guarantee* (details below)

If you want a frame that just works—every time you plug in a pack—the RVS ISO delivers.

Build less. Tune less. Fly more.

— Eric

See the Assembly Manual here!

SPECIFICATIONS

• Carbon Fiber Thickness:
  • Bottom-plate: 2.5mm
  • Mid-plate: 2.5mm
  • Top-plate: 2.5mm
  • Arms: 6mm
• Weight: 165g depending on version
• Prop size:
  • DC5 and X5: Up to 5.5"
  • W7: Up to 7.25"
• Motor Mount Pattern: 16x16 M3, 16x19 for W7

ACCESSORIES, PARTS & ADD-ONS

• RVS ISO Base Frame Kit Bottom, Mid and X-Plates w/ hardware
• RVS ISO DC5 Arms (4pk)
• RVS ISO X5 Arms (4pk)
• RVS ISO W7 Arms (4pk)
• RVS ISO Top Plate - Full Top Style
• RVS ISO Top Plate - Camera Cage Style
• RVS ISO 3D Prints
• RVS ISO Arm Guards
• Camera Cage M5 Mount
• Various Antenna & GPS Mounts Options (select 25mm standoff spacing)

PACKAGE CONTENTS

• 1 x RVS ISO Frame Kit with hardware
• 1 x 3D Print Set including:
  • Motor wire covers with landing pads
  • Antenna Mount (Dual direct + SMA style + RX)
  • RX Holder
  • Air Unit Spacer
  • Cap Mount
  • RX Antenna Mount
  • X-Plate Spacer
  • Full Top Plate Version also Includes:
    • Camera Mount
    • XT60E Spacer
    • XT60 Plug (for wire passthrough)
  • Camera Cage Top Plate Version also Includes:
    • Camera Cage w/ TPU inserts (if selected)
    • Antenna Mount for camera cage (Extra M2x12 screw + nut needed if using this)
• 1 x Kevlar Battery Strap Set

30-Day Satisfaction Guarantee

Our 30-Day Satisfaction Guarantee ensures that you can buy the RVS ISO Frame Kit with 100% confidence. If for any reason you're not completely satisfied with your frame within the first 30 days of delivery, simply make a ticket by clicking the lightbulb icon in the bottom left of the page, include your order number and the reason for your return. Once received, you will be provided with return shipping instructions. Please note that the buyer is responsible for the cost of return shipping.
