Walksnail Avatar HD VRX (Standalone)
The Walksnail Avatar VRX transmits 1080P/60fps with industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. Enjoy clear HD video to take your FPV experience to the next level!
Pair with the Walksnail Avatar HD Micro Kit, Walksnail Avatar HD Nano Kit or Walksnail Avatar 1S Nano VTX Kit for an epic HD experience!
Features

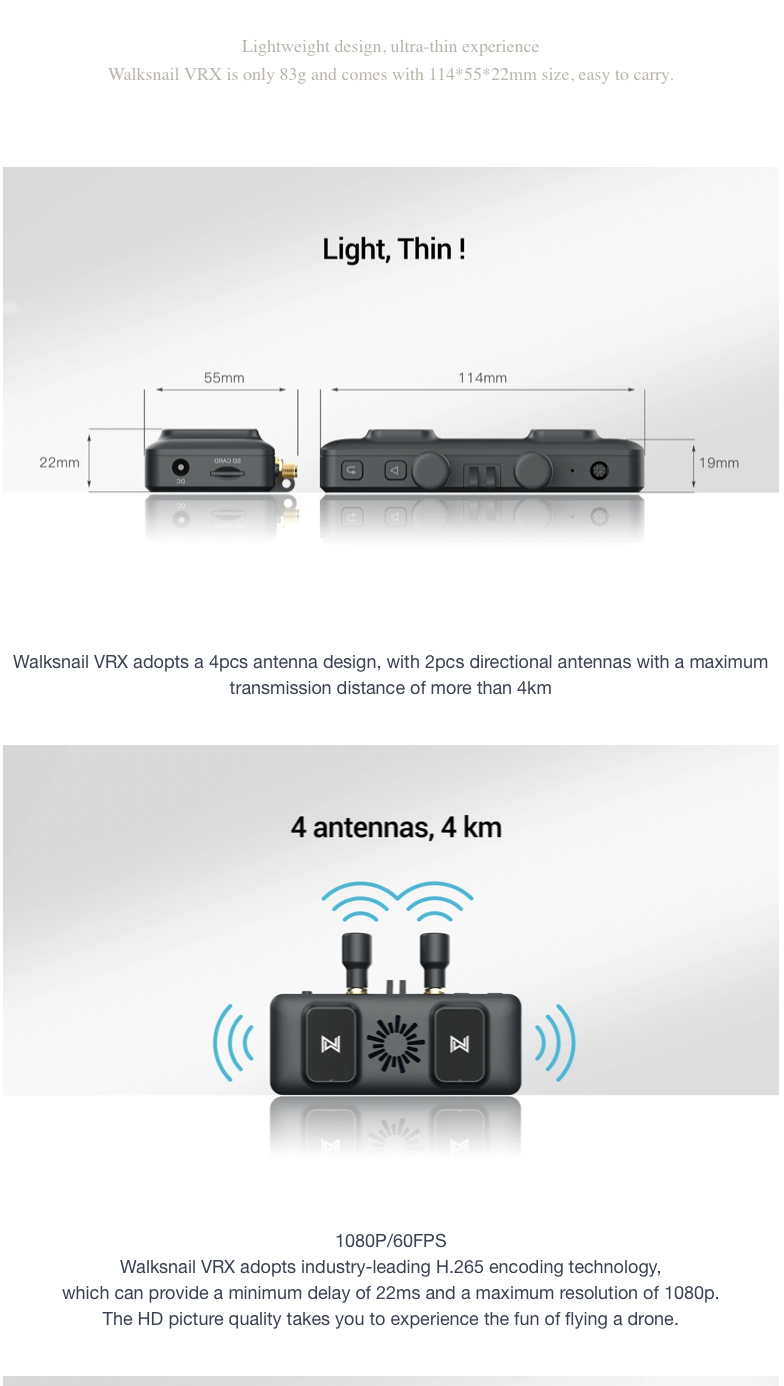

- Lightweight Design - 83g
- Max transmission distance of more than 4km
- Supports 1080P 60FPS or 720P 100FPS
- Supports Betaflight Canvas Mode
- Compatible with Analog Goggles
- HDMI Out

Specifications
Googles Antenna
- Model: Red bird
- Polarization: LHCP
- Bandwidth: 5.6GHz-6.0GHZ
- Average Gain: 1.9dBi
- Radiation Efficiency: ≥97%
- VSWR: ≤1.3
- Cross-Polar Rejection: -15to-30dB
- Connector: RP-SMA
- Dimension: H24.8mm*R15.3mm
- Weight: 4.2g
Avatar HD VRX
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power(EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
- I/O Interface: HDMI, microSD card slot, DC5.5*2.1mm
- HDMI output: 1080p@60fps, 720p@100fps, 720p@60fps
- Power Input: 7-21V(2S-5S)
- SDCard: Support256G
- System: Avatar HD system
Package Contents
- 1 x Avatar VRX
- 2 x Antenna for VRX
1 Review Hide Reviews Show Reviews
-
Simplicity of a little box with HDMI out and flexible power requirements.
Vendor lock-in is a real thing with FPV. You can go in several directions such as Avatar, HD Zero, DJI or Analog. Once locked-in, by definition, it's tough to get out and try something new without significant investment. The Walksnail/Avatar VRX module helps alleviate this by being able to connect to just about any system with HDMI. For me that turns out to be Sky04X Analog goggles with decent screens, but if I change my mind and want to use a high brightness portable field monitor instead, then it's a simple matter of using an HDMI cable. Perhaps a DJI headset with HDMI in? Sure! Is it good enough for racing? Perhaps the latency might be a bit high for professional racing pilots, but for freestyle flying, or just something that's easier on the eyes than analog, the Walksnail VRX paired up with a compatible camera and VTX is a great bargain. Seriously cheaper than DJI03 and thanks to Avatar's 1S VTX solutions, the tiniest drones can be equipped to fly with Avatar/Walksnail HD. With the Avatar VRX, I don't feel locked-in since all I need is an HDMI port and it's go time.
