TrueRC X2-AIR 5.8 MK II Antenna LHCP RP-SMA

$83.99
SKU:
TR-O3

TrueRC X²-AIR 5.8 MK II Antenna LHCP RP-SMA

Following on the latest improvement of the X-AIR 5.8 MK II, this shrunk down X²-AIR is nothing less than the original beside its size. Bringing the high gain and wide horizontal beam in a new compact and light package.

Specifications

  • Bandwidth: 5.1GHz-7.0GHz
  • Gain: 13 dBic

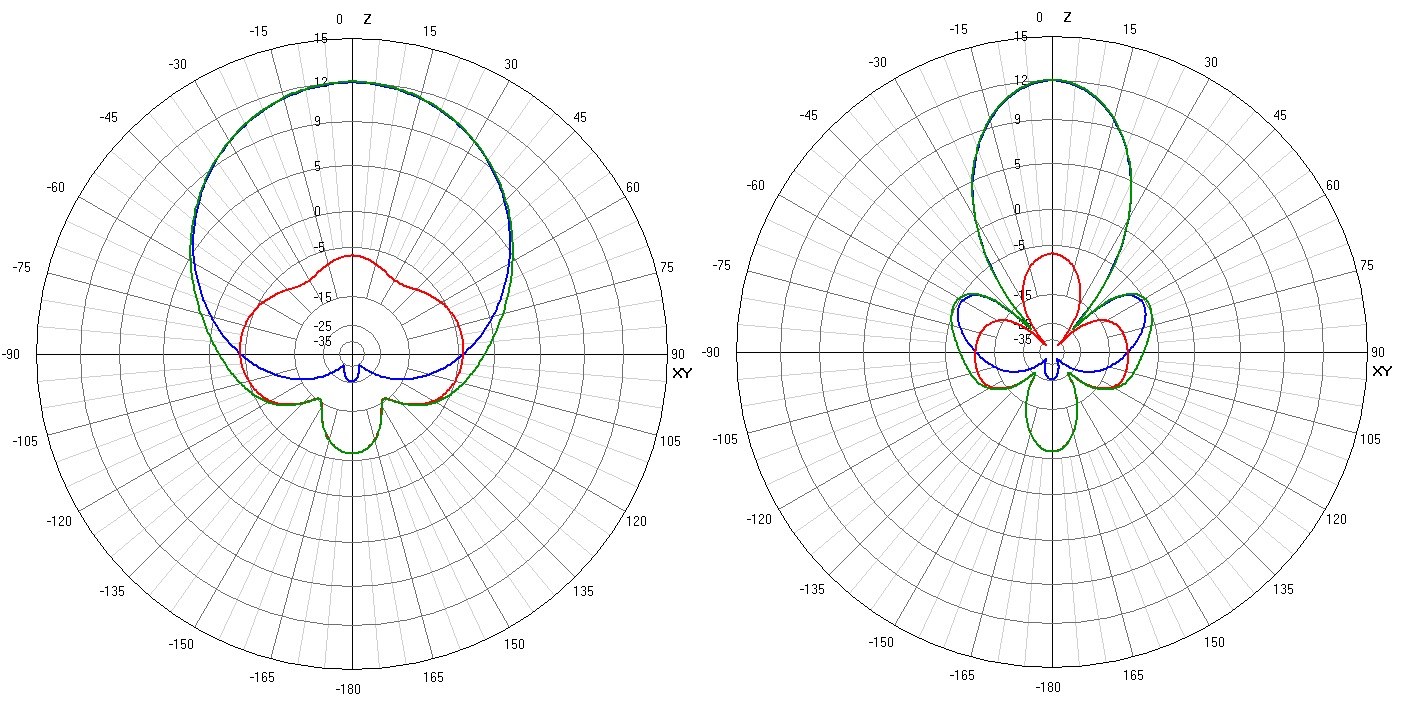

  • Beam-width Horizontal*: 150deg
  • Beam-width Vertical*: 62deg
  • Hor. beam @-3dB**: 74deg.
  • Vert. beam @-3dB**: 34deg.
  • Connector: RP-SMA
  • Dimension: 72mm x 34mm x 22mm

*Coverage where reception is at least equivalent to an omni.

**Coverage where at least 70% of the max range is obtained.


PACKAGE CONTENTS

  • 1 x Antenna
Width:
10.00 (cm)
Height:
2.00 (cm)
Depth:
1.00 (cm)
