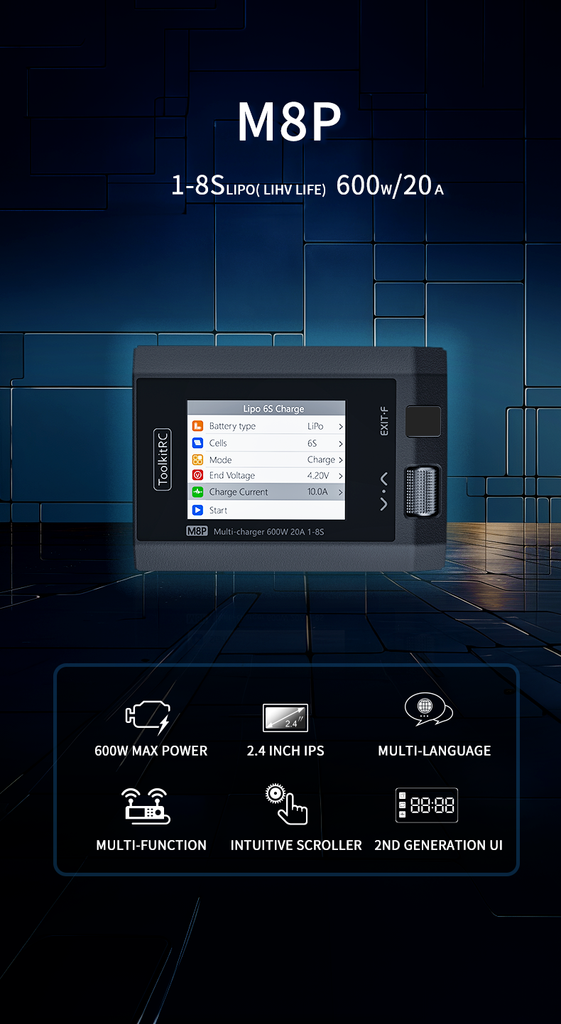

ToolkitRC M8P 600W 20A 1-8S DC Charger – XT60

Ever found yourself twiddling your thumbs while waiting for your FPV batteries to charge? Ever whispered sweet nothings to your LiPo, begging it to hurry up so you can soar the skies again? We get it; you want to fly, not watch paint dry.

Enter the ToolKitRC M8P, an overachiever in the realm of DC Chargers that doesn’t just charge your batteries; it practically throws them a full-on pep rally. With a jaw-dropping 600W power output and the capability to balance-charge anything from 1-8S, you’ll be back in the sky faster than you can say “Did someone get the number of that drone?”

But wait, we’ve turned the dial to 11 by featuring an XT60 connector to make your charging experience safer and even more efficient! Forget clumsy adapters; plug straight in and watch those electrons sprint!

Features

• Ultra-Powerful: Charging Power of 0.1-20A @ 600W.
• Versatile: Supports various battery types: LiPo, LiHV, LiFe, Lion, LTO, NiMh, and Pb.
• Speedy: Equipped with a balance current of 1000mA @ 4.2V for faster, safer charging.
• Smart: Measures everything from PWM, PPM, to SBUS and IR. It’s like having a mini laboratory!

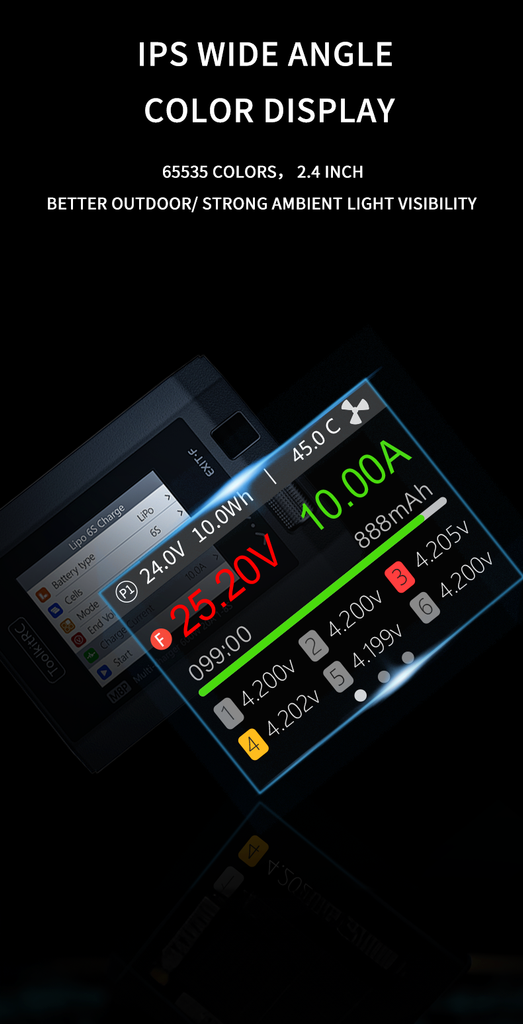

• Convenient: Comes with a vivid 2.4 IPS RGB 320×240 pixel LCD display, making the user interface a breeze.

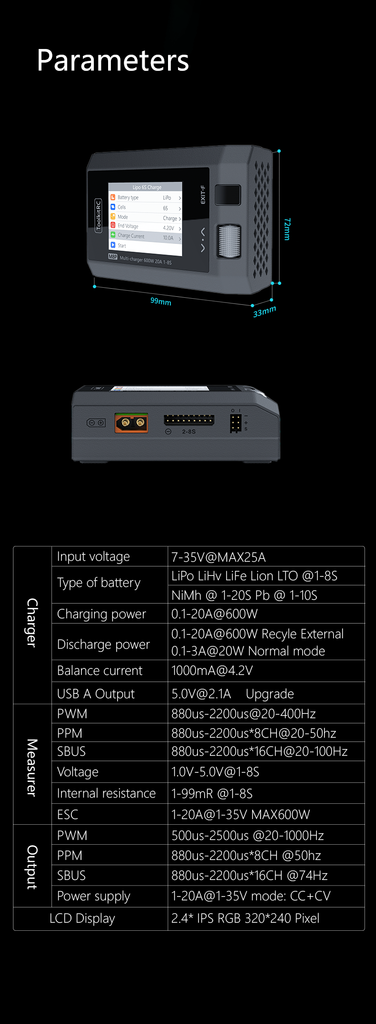

Specifications

• Input 7-35V: @MAX25A
• Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
• Charging Power: 0.1-20A@600W
• Discharging Power: 0.1-20A @ 600W Recycle External
• Discharging Power: 0.1-3A @ 20W Normal mode
• Balance current: 1000mA@4.2V
• USB: 5.0V @ 2.1A upgrade

Measuring

• PWM: 880us-2200us @20-400Hz
• PPM: 880us-2200us*8Ch @20-50hz
• SBUS: 880us-2200us*16ch @20-100Hz
• Voltage: 1.0V-5.0V @1-8S
• IR: 1-99mR @1-8S
• ESC: 1-20A@1-35V MAX600W

Output

• PWM: 500us-2500us @20-1000Hz
• PPM: 880us-2200us*8ch @50hz
• SBUS: 880us-2200us*16ch @74Hz
• Power: 1-20A @ 1-35V Mode: CC+CV
• LCD Display: 2.4 IPS RGB 320×240 pixel

• 1 x Toolkit Charger
