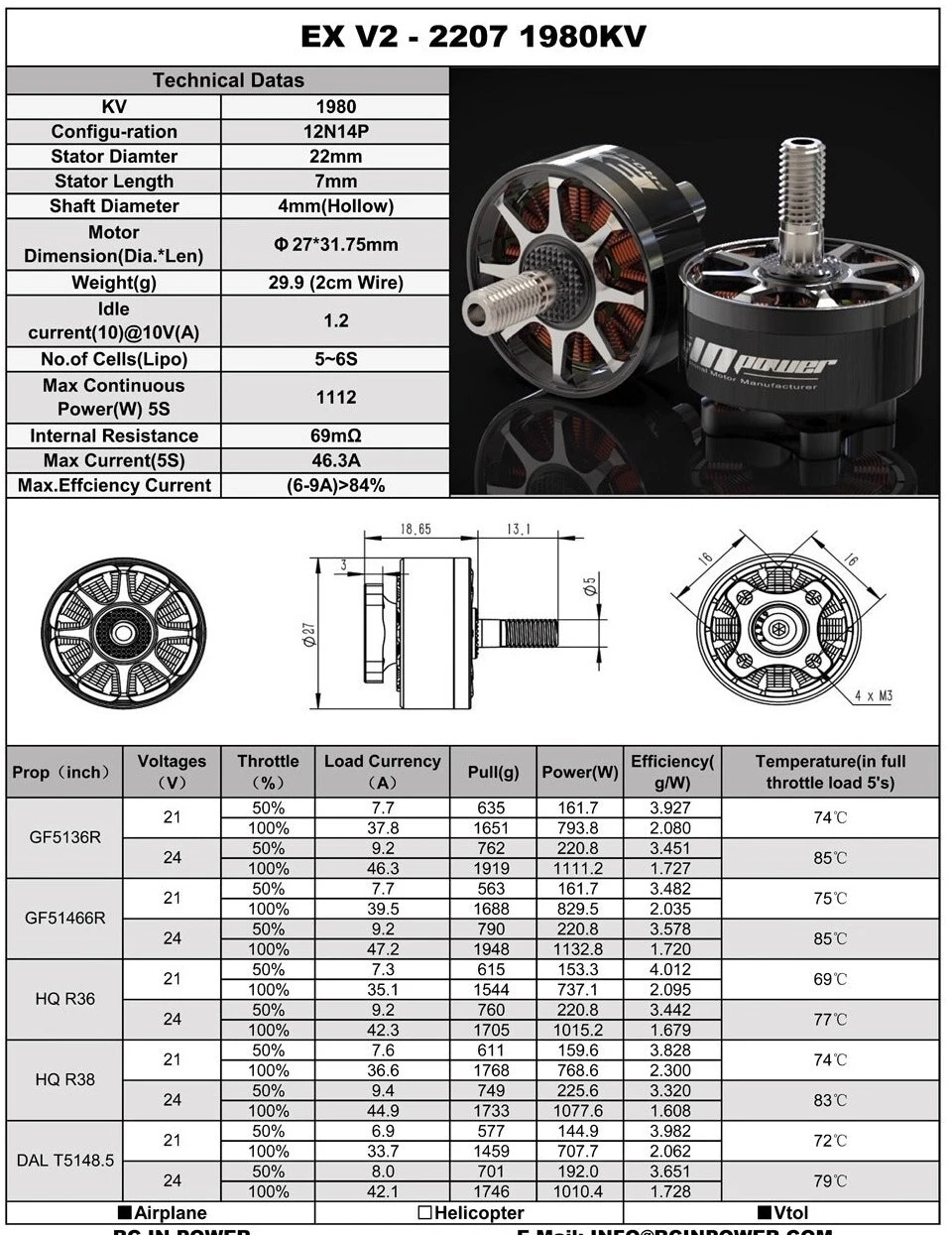

RCINPower EX V2 2207 PLUS - 1980KV

FEATURES

• 1980KV, 12N14P motor for 5-6S builds
• 22 x 7 mm stator with a hollow 4 mm shaft
• Weighs 29.9 g with 2 cm wire
• Over 84% efficiency between 6 and 9 A

SPECIFICATIONS

• KV: 1980
• Configuration: 12N14P
• Stator Diameter: 22 mm
• Stator Length: 7 mm
• Shaft Diameter: 4 mm (hollow)
• Motor Dimensions (Dia. x Len): 27 x 31.75 mm
• Mounting: 16 x 16 mm, 4 x M3
• Weight: 29.9 g (2 cm wire)
• Idle Current (10V): 1.2 A
• Cells: 5-6S LiPo
• Max Continuous Power (5 s): 1112 W
• Internal Resistance: 69 mΩ
• Max Current (5 s): 46.3 A
• Max Efficiency Current: 6-9 A (above 84%)

PACKAGE CONTENTS

• 1 x EX V2 2207 1980KV Motor
