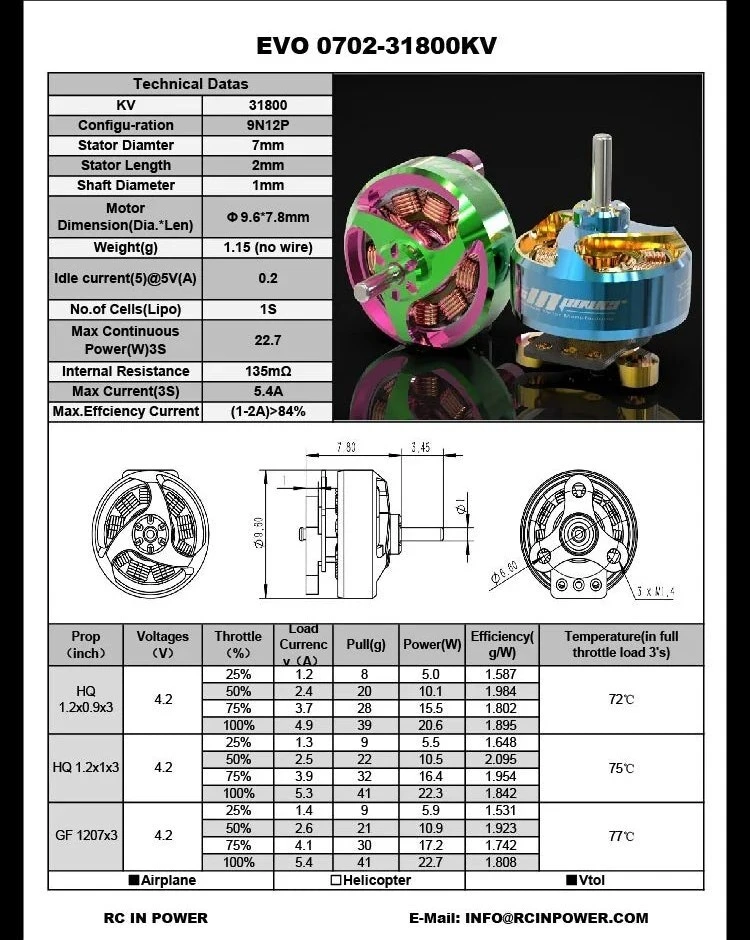

RCINPower Evo 0702-31800KV 1S - Blue & Gold

FEATURES

• 31800KV, rated for 1S
• 9N12P configuration with a 7 x 2 mm stator
• Weighs only 1.15 g (no wire)
• Over 84% efficiency between 1 and 2 A
• Compact 9.6 x 7.8 mm motor body

SPECIFICATIONS

• KV: 31800
• Configuration: 9N12P
• Stator Diameter: 7 mm
• Stator Length: 2 mm
• Shaft Diameter: 1 mm
• Motor Dimensions (Dia. x Len): 9.6 x 7.8 mm
• Mounting: 3 x M1.4, 6.6 mm diameter
• Weight: 1.15 g (no wire)
• Idle Current (5V): 0.2 A
• Cells: 1S LiPo
• Max Continuous Power (3 s): 22.7 W
• Internal Resistance: 135 mΩ
• Max Current (3 s): 5.4 A
• Max Efficiency Current: 1-2 A (above 84%)

PACKAGE CONTENTS

• 1 x EVO 0702 31800KV Motor
