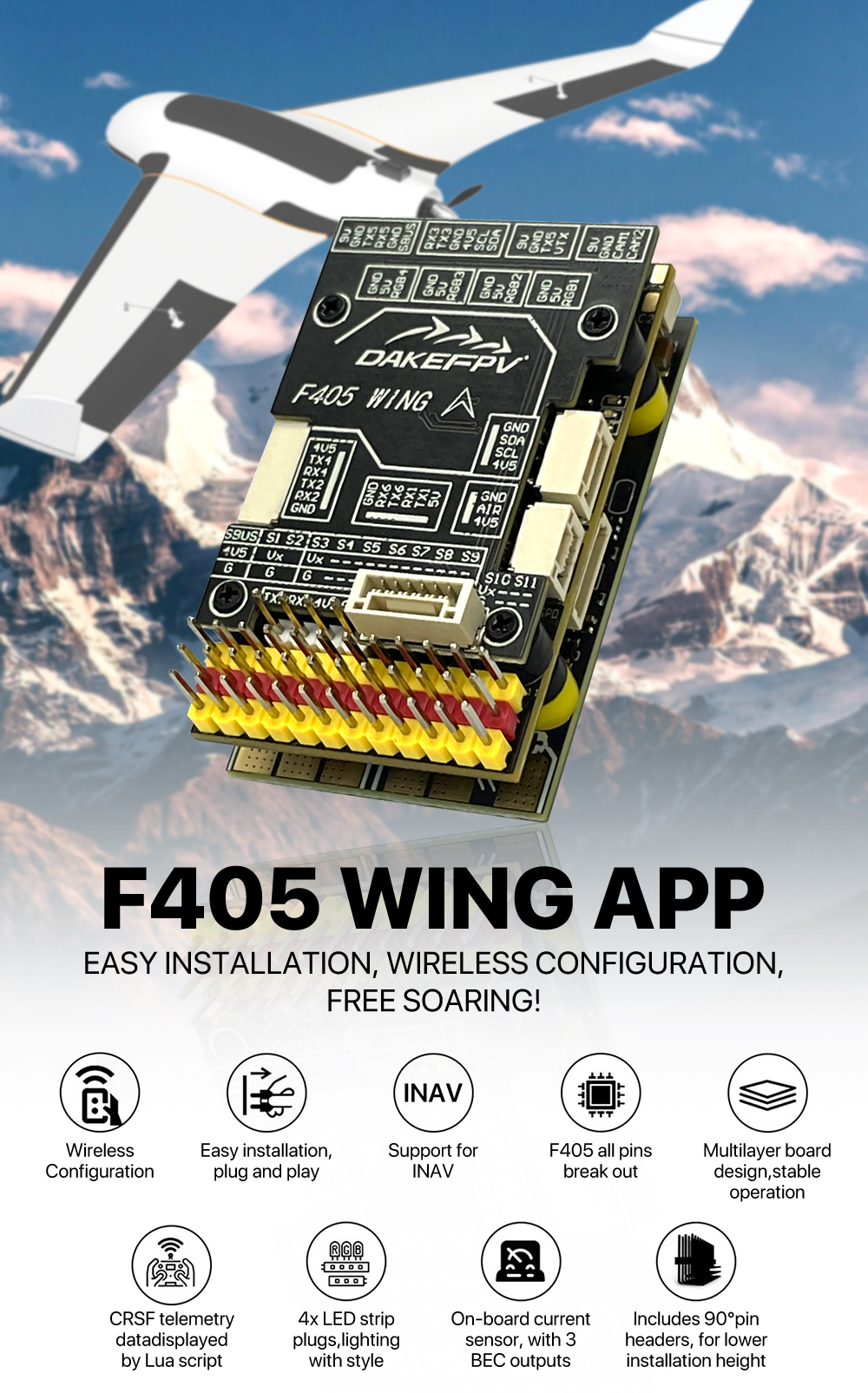

DakeFPV F405 Wing Flight Controller

SPECIFICATIONS

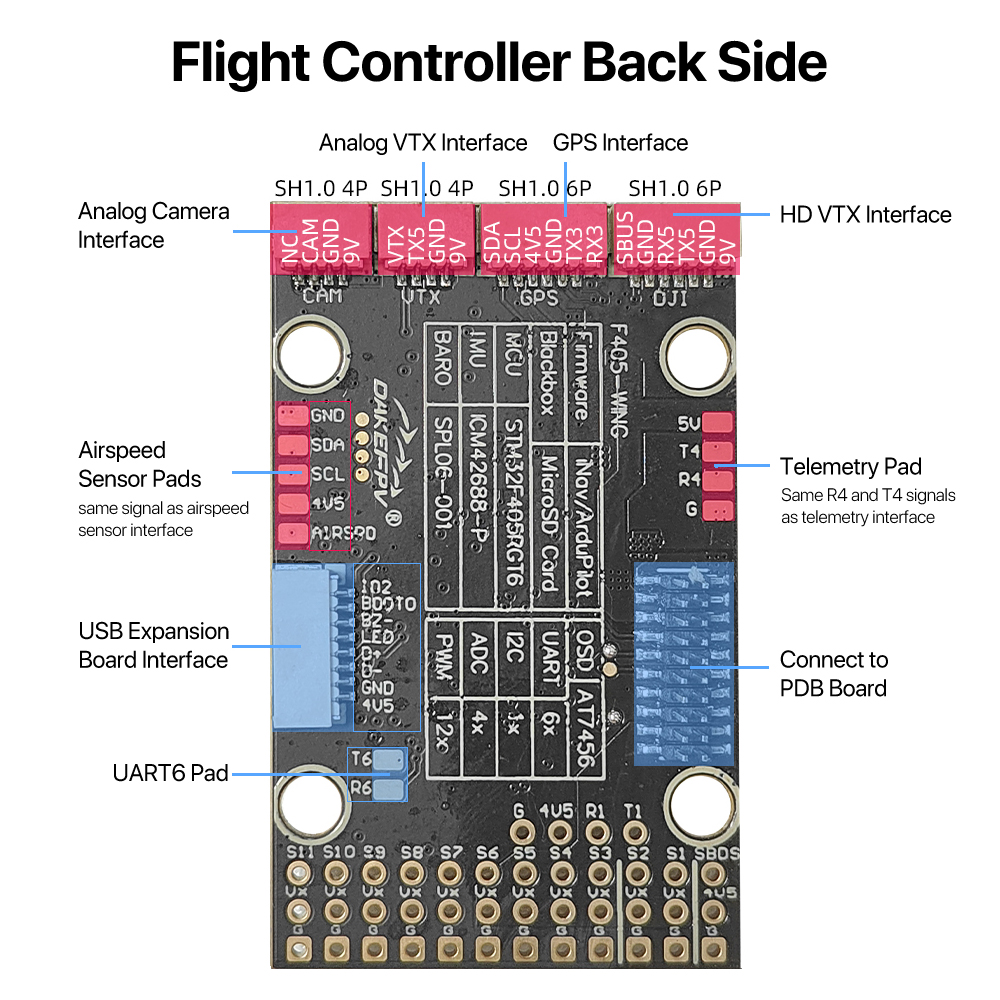

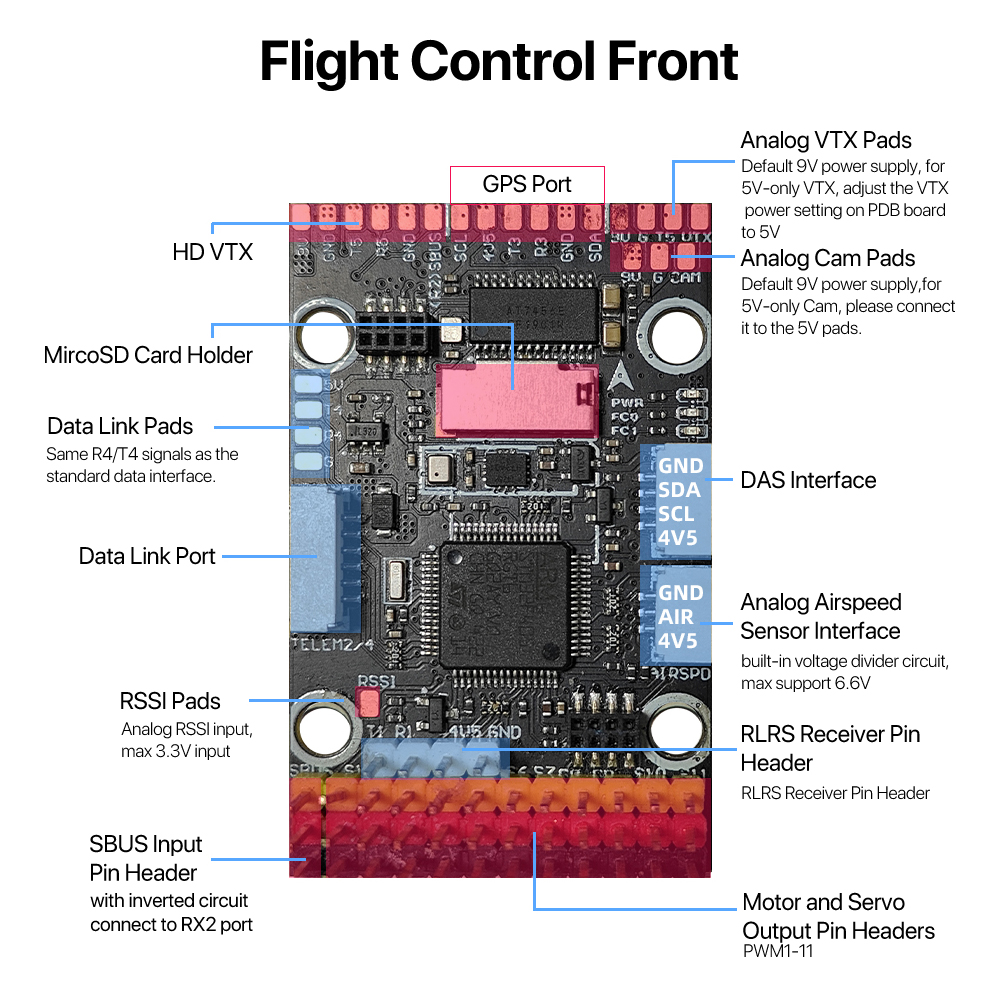

F405 WING FC board

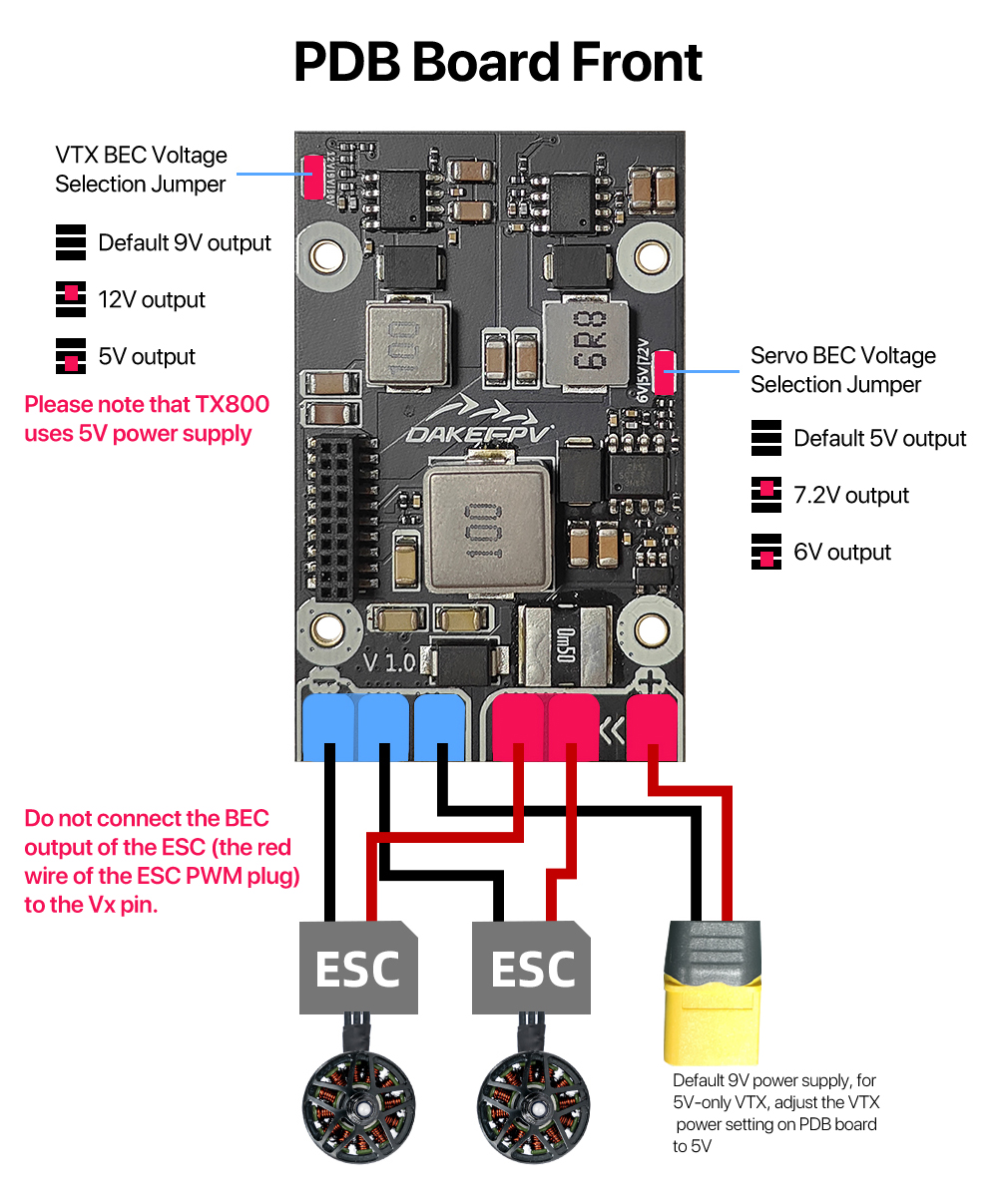

• Input voltage range: 7-44V (2-12S LiPo)
• MCU: STM32F405, 168MHz, 1MB Flash
• IMU(Gyro & Accelerometer): ICM-42688-P
• Barometer: SPL006-001
• OSD Chip: AT7456E

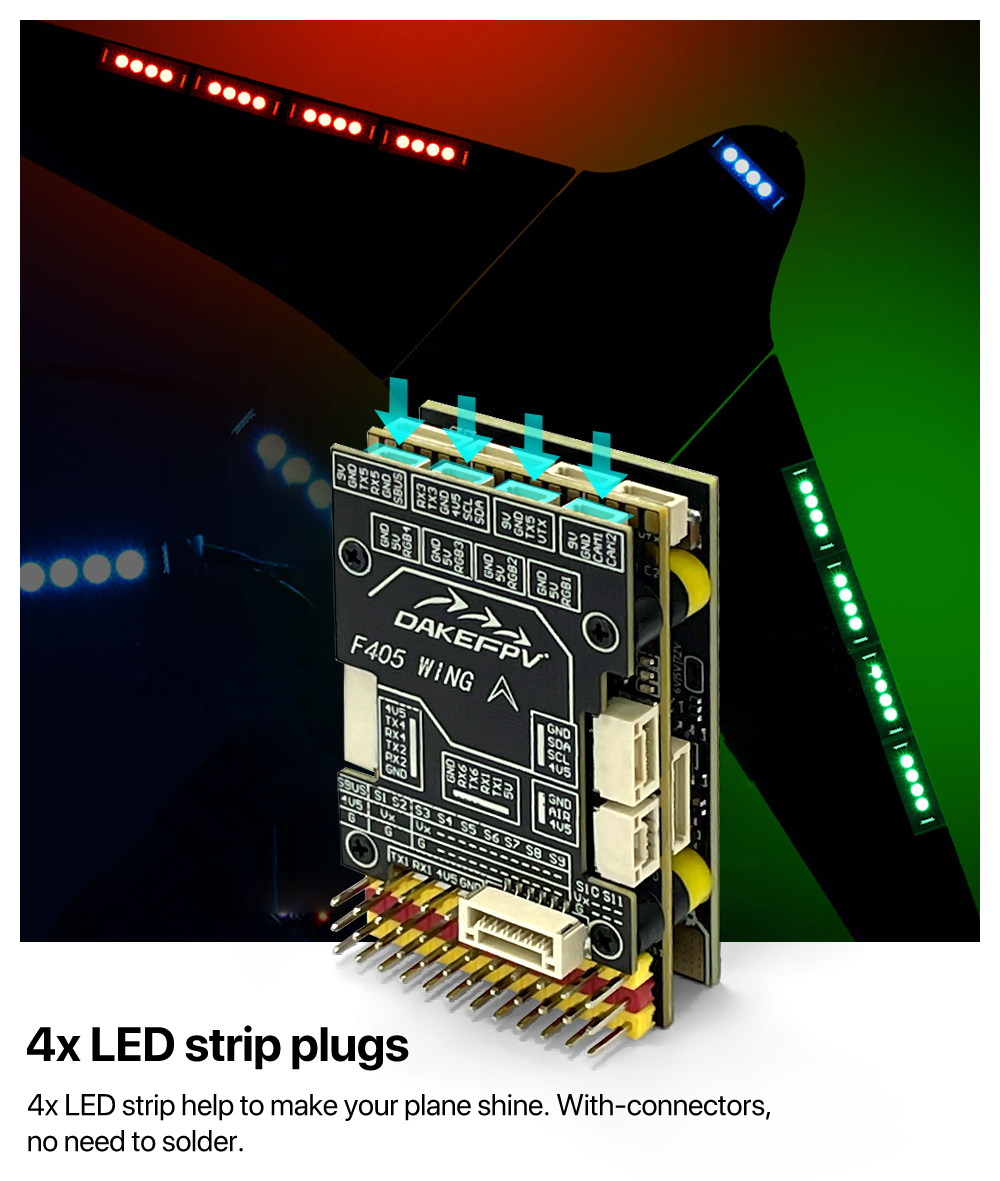

• LED Strip: Supported

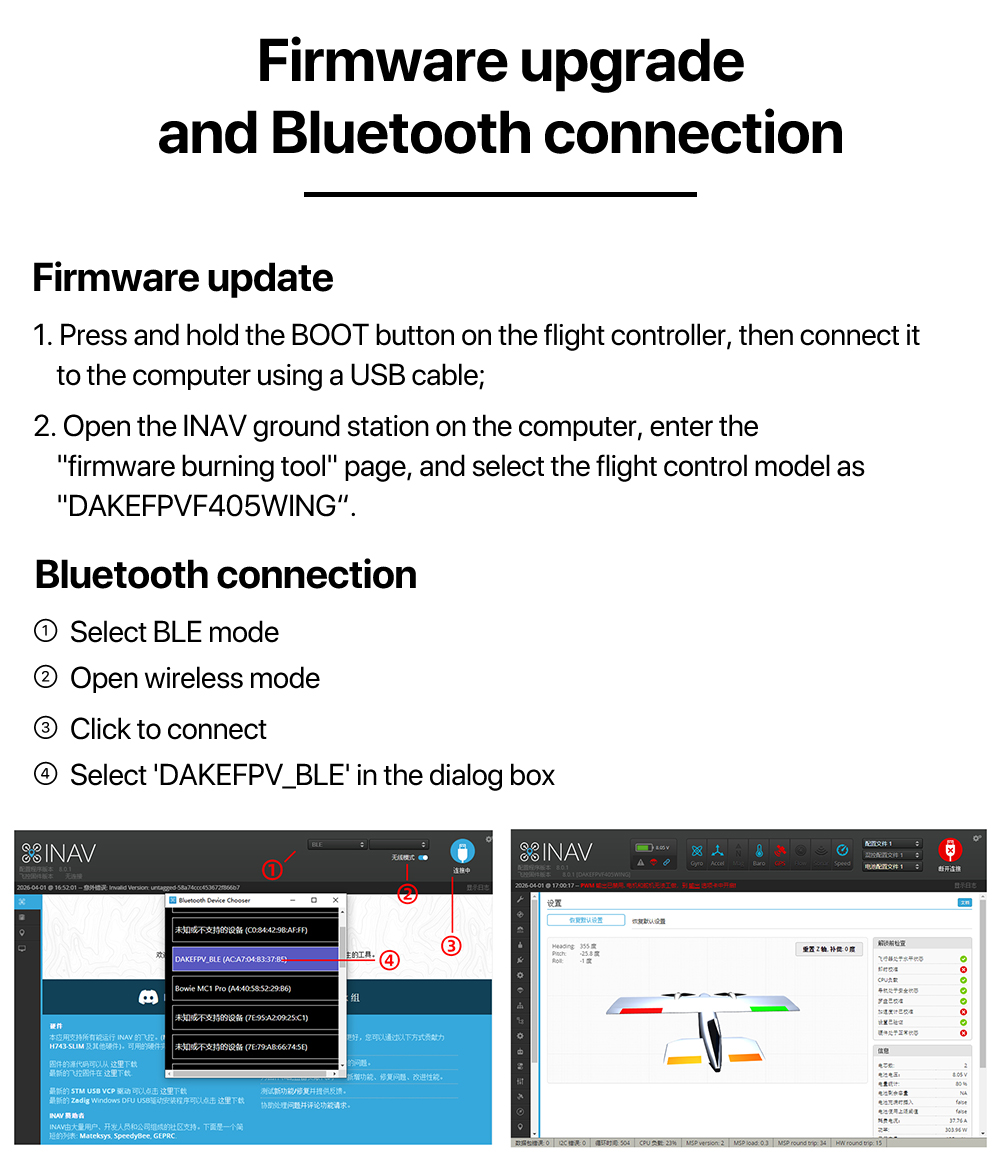

• Firmware Support: INAV

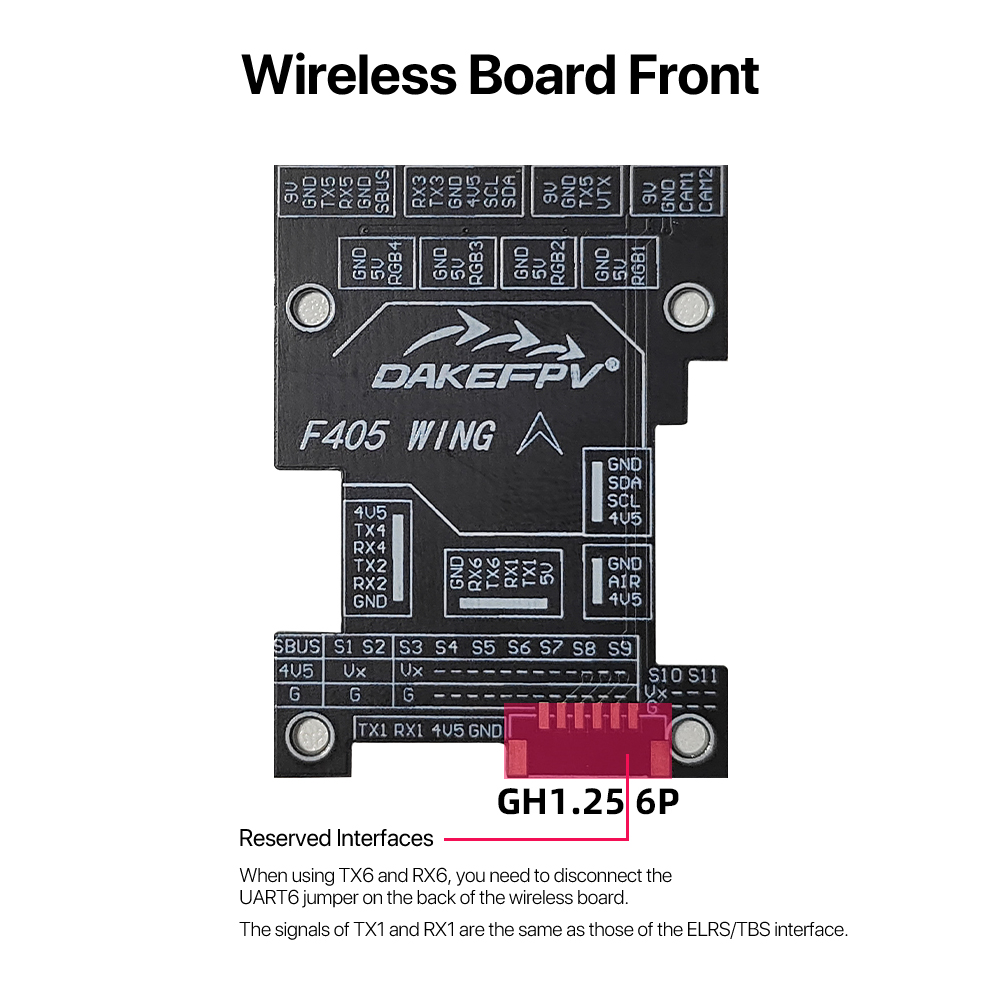

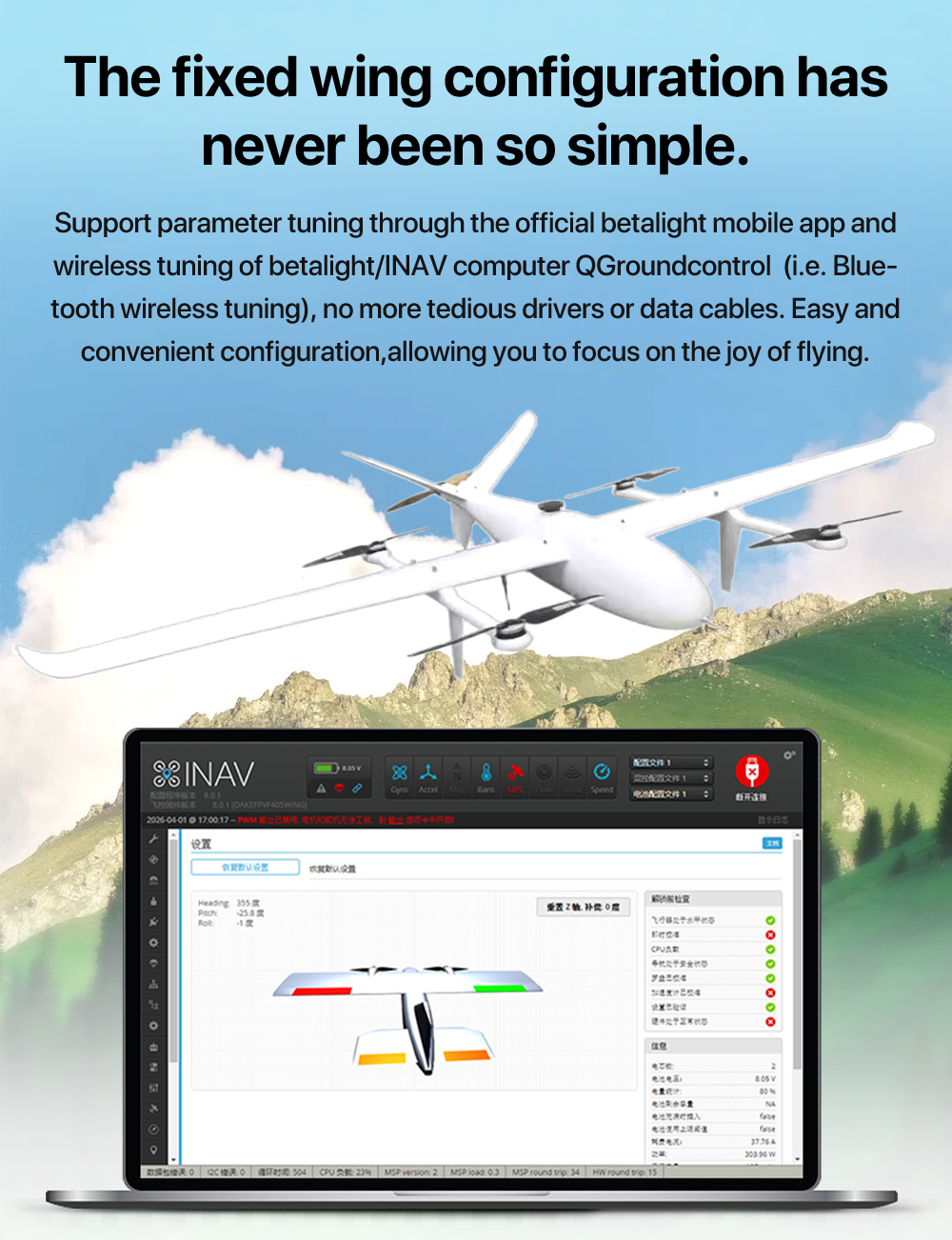

• Wireless Configuration: Supported
• Blackbox: MicroSD Card Slot

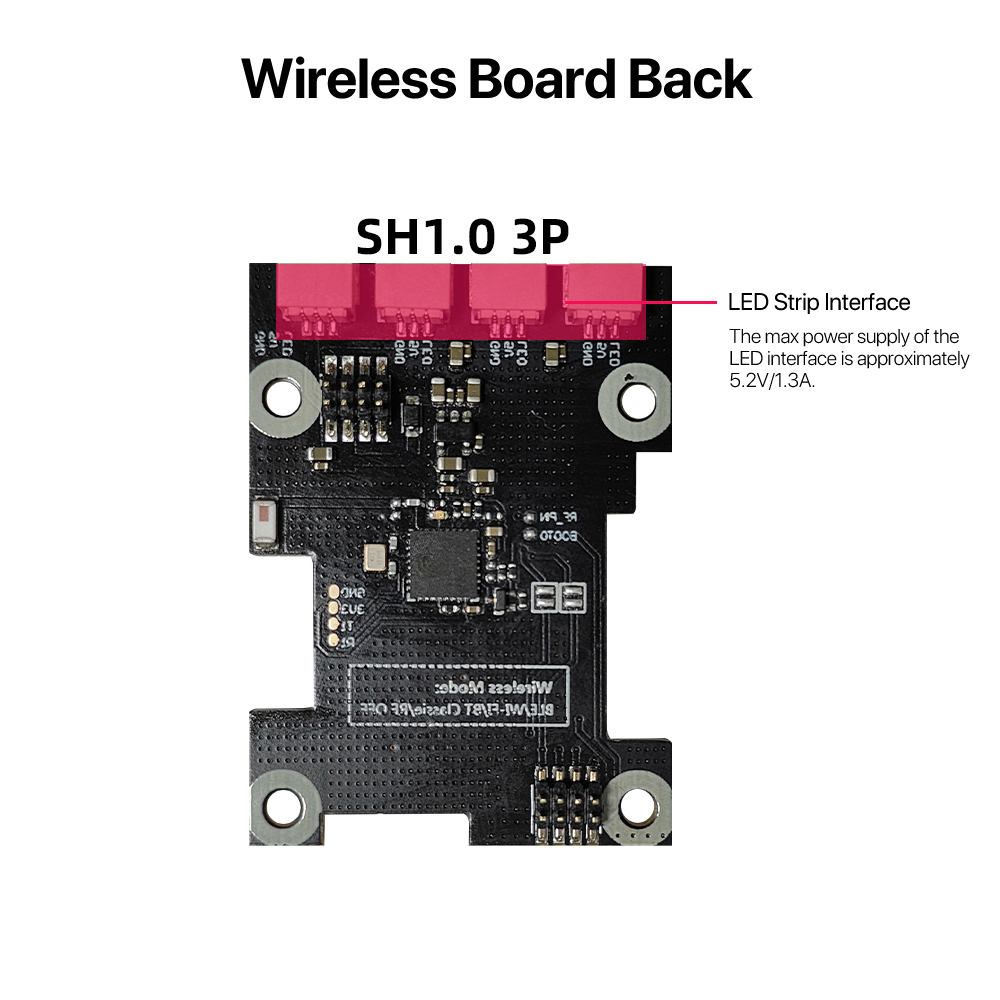

• UART: 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
• I2C: 1x Used for magnetometer, digital airspeed sensor
• ADC: 4x (VBAT, Current, RSSI, Analog AirSpeed)

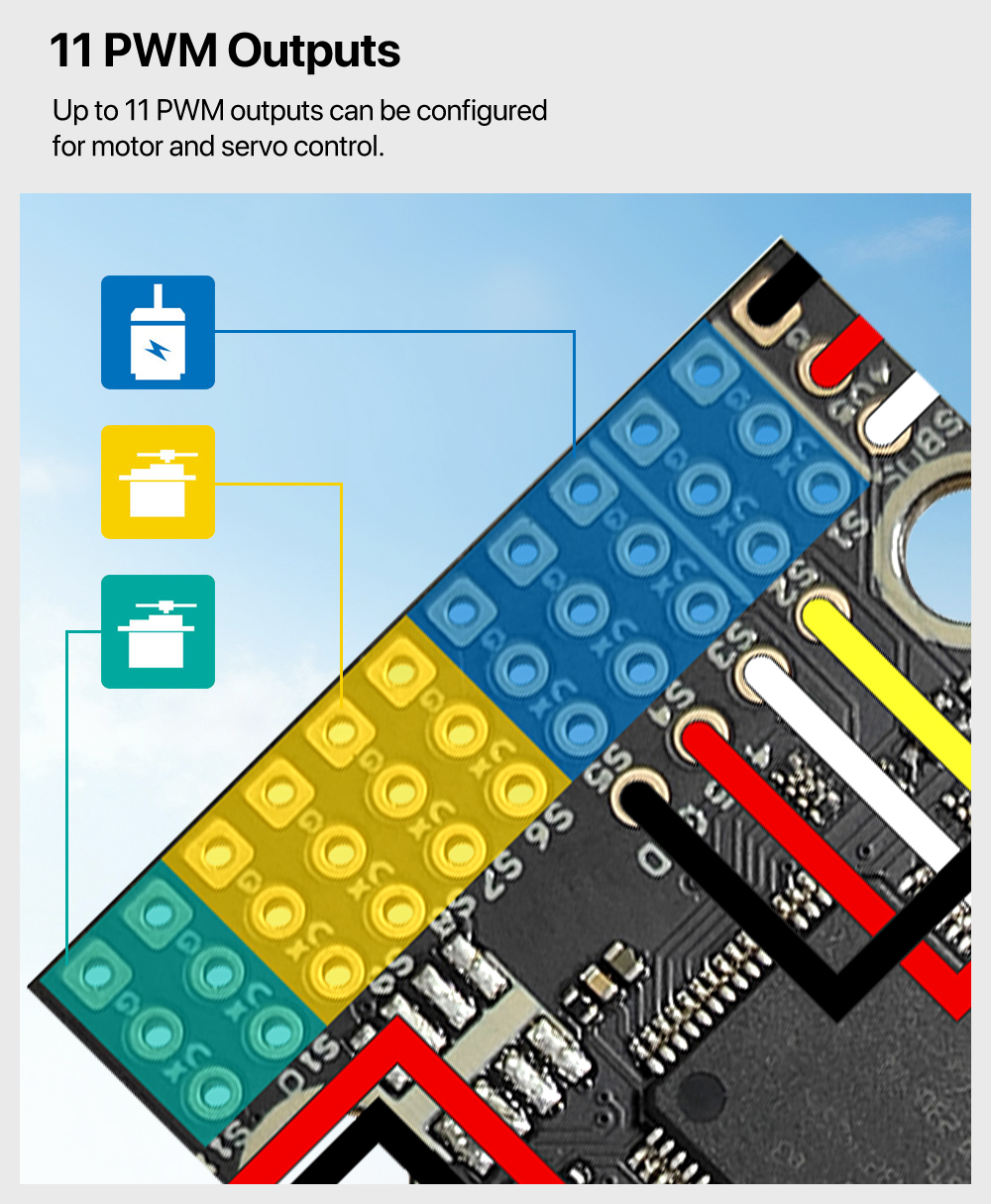

• PWM: 12x (11+1“LED”pad)

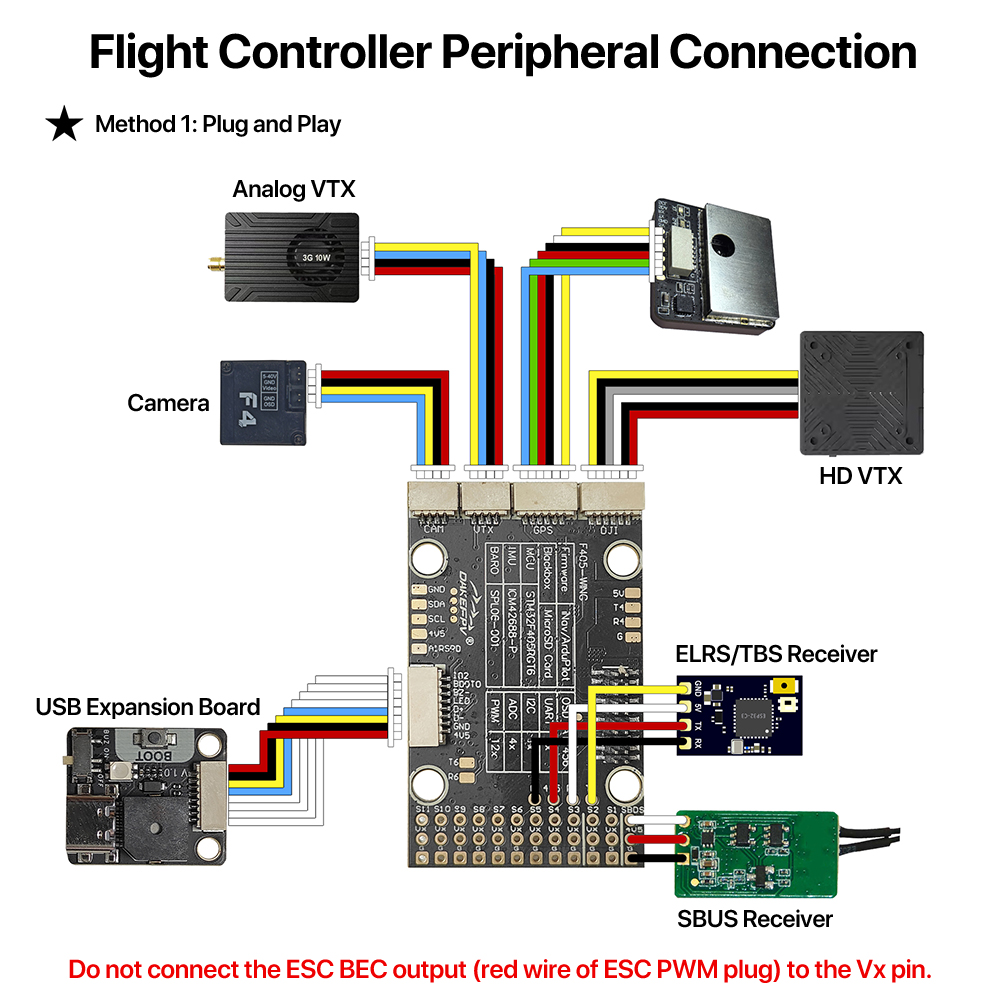

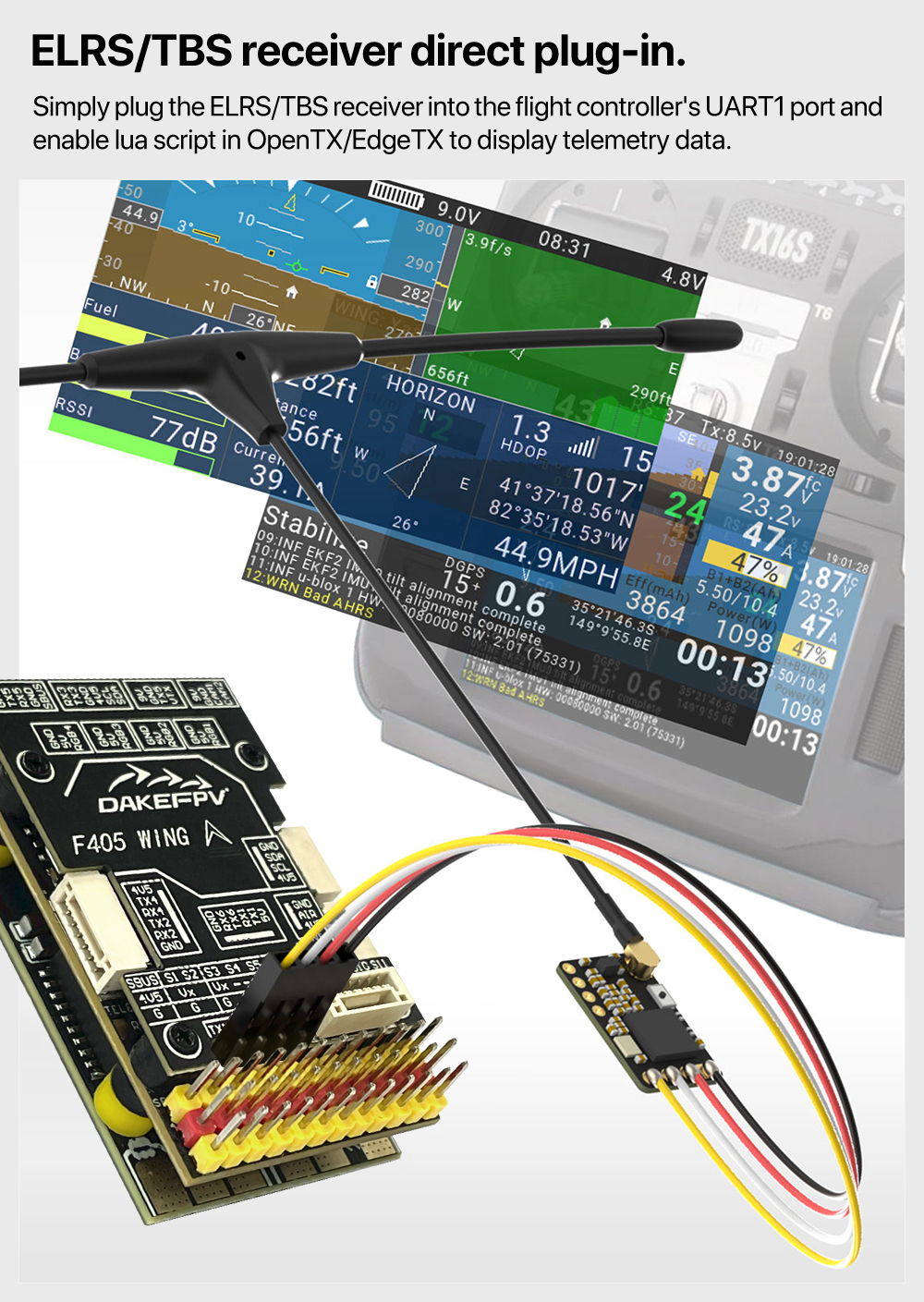

• ELRS/CRSF receiver: Supported, connected to UART1
• SBUS: Built in inverter for SBUS input (UART2-RX)
• LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
• RSSI: Supported, Named as RS .
• Supported FC Firmware: INAV:DAKEF405WING(default)
• Weight: 34g

Package Contents

• 1 x F405 WING KIT
