BetaFPV ExpressLRS Lite 2.4Ghz RX V1.1

$17.99
SKU:
BT-J1

BetaFPV ExpressLRS Lite 2.4Ghz RX V1.1

BETAFPV Lite receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.


Specifications

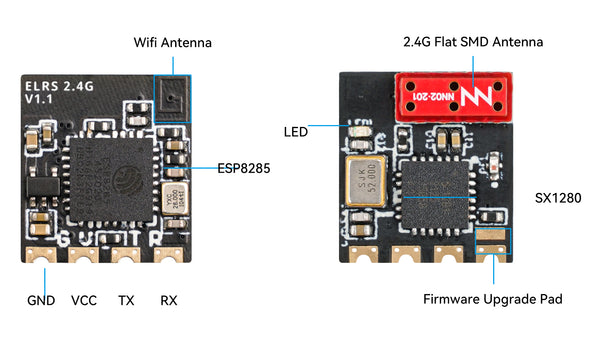

  • Weight: 0.53g (with Flat SMD ceramic antenna)
  • Size: 11mm*10mm*3mm (Flat)
  • MCU: ESP8285
  • Telemetry power: 17mW
  • Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
  • Input voltage: 5V
  • Antenna: Integrated SMD ceramic antenna




Configuration & Bind Procedure

ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board supports the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.

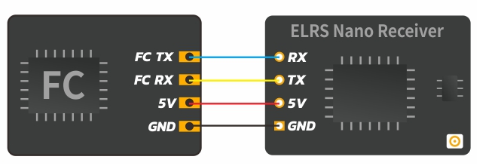

The connection between the ELRS Lite receiver and the FC board is shown below.

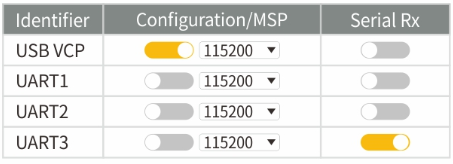

Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.

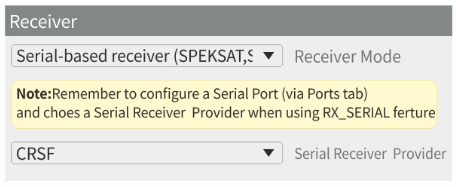

On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.


The Lite receiver comes with offically major release V2.0.0 protocol and no Binding Phrase inlcuded. Lite receiver could enter binding status by power on/off three times.

  • Plugin and unplug Lite receiver three times;
  • Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
  • Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
  • If the receiver has a solid light, it's bound.

Manual

PACKAGE Contents

  • 1 x BETAFPV ELRS Lite receiver
  • 2 x Spare shrink tube
  • 4 x 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
Width:
0.05 (cm)
Height:
0.05 (cm)
Depth:
0.05 (cm)
Receiver Type:
ExpressLRS
