RadioMaster ER5A PWM ELRS 2.4GHz RX

RadioMaster ER5A PWM ELRS 2.4GHz RX

$27.99
SKU:
RM-C3

RadioMaster ER5A PWM ELRS 2.4GHz RX

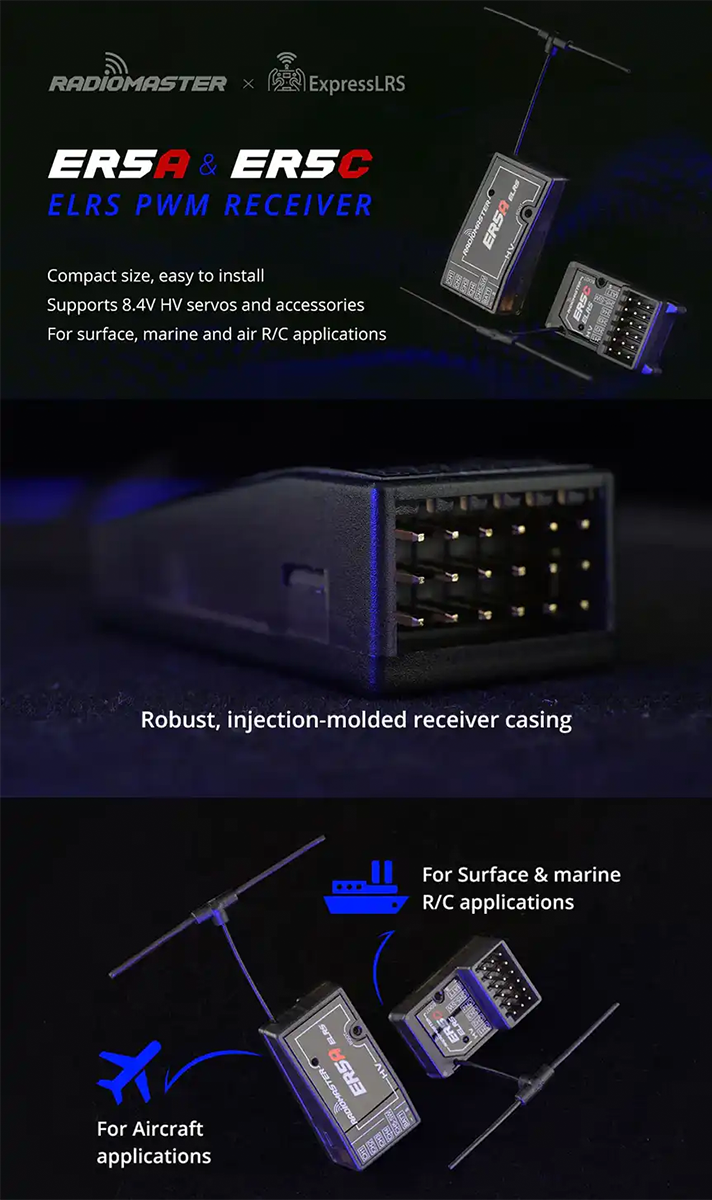

The RadioMaster ER5A ExpressLRS PWM Receiver w/ Spare Long Antenna features a compact size and is easy to install. It's perfect for surface, marine, and air R/C applications. The ER5A supports 8.4V HV servos and accessories, and a robust injection-molded receiver casing. It has fast response speeds and incredible range. The RadioMaster ER5A Receiver supports 4 proportional and 1 switch channel (ExpressLRS 2.x) or 5 proportional channels (ExpressLRS 3.x).

Features

  • Compact size, easy to install. Perfect for Surface, marine, and air R/C applications.\
  • Supports 4 proportional and 1 switch channel (ExpressLRS 2.x)
  • Supports 5 proportional channels (ExpressLRS 3.x)
  • Supports 8.4V HV servos and accessories
  • Robust, injection-molded receiver casing
  • Fast response speeds, incredible range

Specifications

  • Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM
  • Antenna type: high sensitivity T-shape antenna
  • Wireless Protocol: ELRS 2.0 pre-installed
  • Item: ER5A 2.4GHz Receiver
  • Power supply: DC 4.5-8.4V
  • Size: 37*19*13mm
  • Weight: 6.6 grams


Package contents

  • 1x RadioMaster ER5A ExpressLRS PWM Receiver
  • 1x Spare Long Antenna
Width:
0.05 (cm)
Height:
0.05 (cm)
Depth:
0.05 (cm)
Receiver Type:
ExpressLRS
