NewBeeDrone Cricket200 ESC - 45A 20x20mm (CLEARANCE)

NewBeeDrone Cricket200 ESC - 45A 20x20mm (CLEARANCE)

Sale
$147.99 $79.97
SKU:
NB-D2

NewBeeDrone Cricket200 ESC - 45A 20x20mm


Specifications

  • LiPo Power input: 3S-6S
  • ESC Programming: BLHeli32
  • Cont.Current: 45Ax4
  • Burst Current: 55Ax4
  • Weight / Size: 13.0g / 39x29.5x8mm
  • Mounting holes: 20x20mm

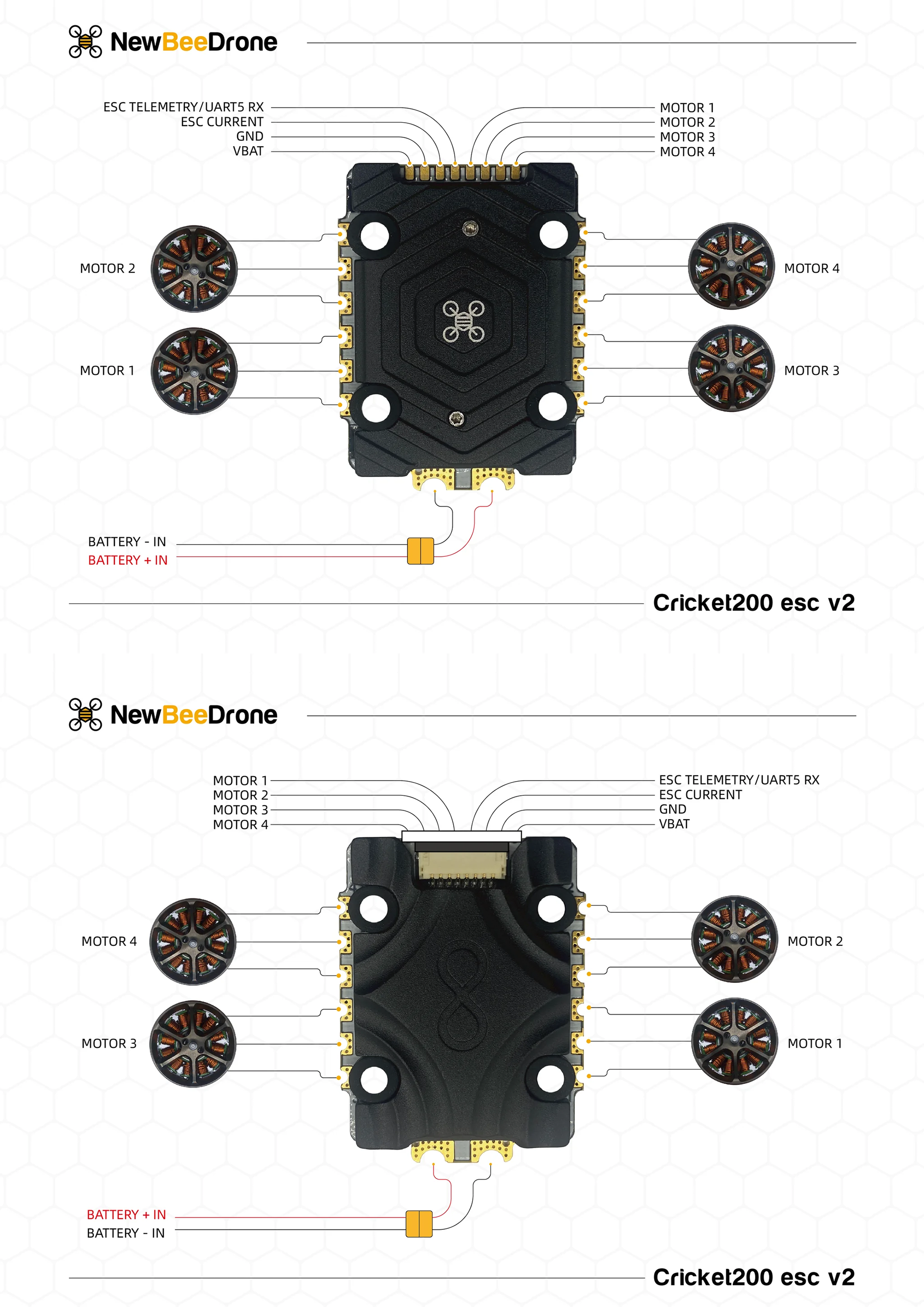

  • Signal plug JST1.0 8pin plug with NBD Cricket200FC
  • Solder pad ready for signal and power
  • Heatsink design
  • 8 Layer PCB with 2Oz Copper
  • Smoov performance design by Team NBD

Package Contents

  • 1x Cricket200 4 in 1 ESC BLHeli32 45A
  • 4x Short Grommets & 4x Long Grommets
  • 5x Steel Screw 25mm
  • 13x Nylon Nuts
  • 1x Cricket200 FC to Cricket200 ESC cable 30mm
  • 1x Cricket200 FC to Cricket200 ESC cable 50mm
  • 1x Cricket200 FC to Cricket200 ESC cable 85mm
  • 470uf 35v Electrolytic capacitor
Width:
2.00 (cm)
Height:
2.00 (cm)
Depth:
0.50 (cm)
Mounting:
20x20
Amps:
45
