Matek Micro BEC 6-60V - 5V/9V/12V

SPECIFICATIONS

• Wide 6V to 60V Operating Input Range
• Start-up Voltage >=6.7V
• VOut 5V, 9V or 12V Adj. Default is 5V.
• Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage

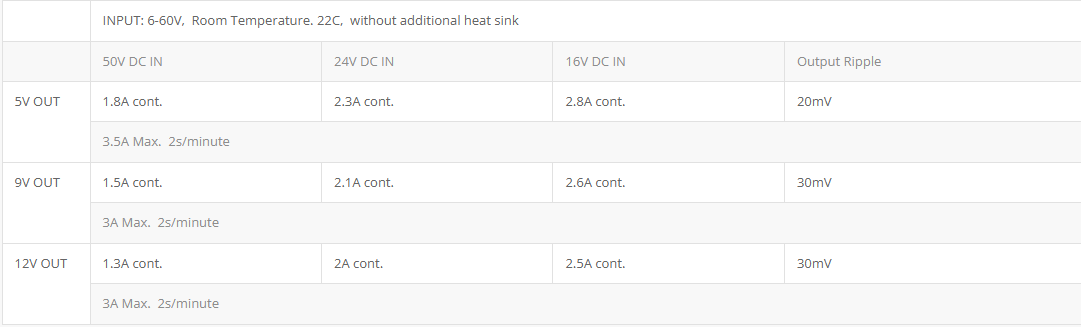

• Continuous load current: Depends on input voltage and heat dissipation.
• Standby current: <5mA
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Short-circuit tolerant (3 seconds/minute)
• No protection for reversed input polarity
• Pins distance: 2.54mm
• Size & Weight: 18×15(16)x4.5mm, 2g



PACKAGE CONTENTS

• 1 x Regulator
