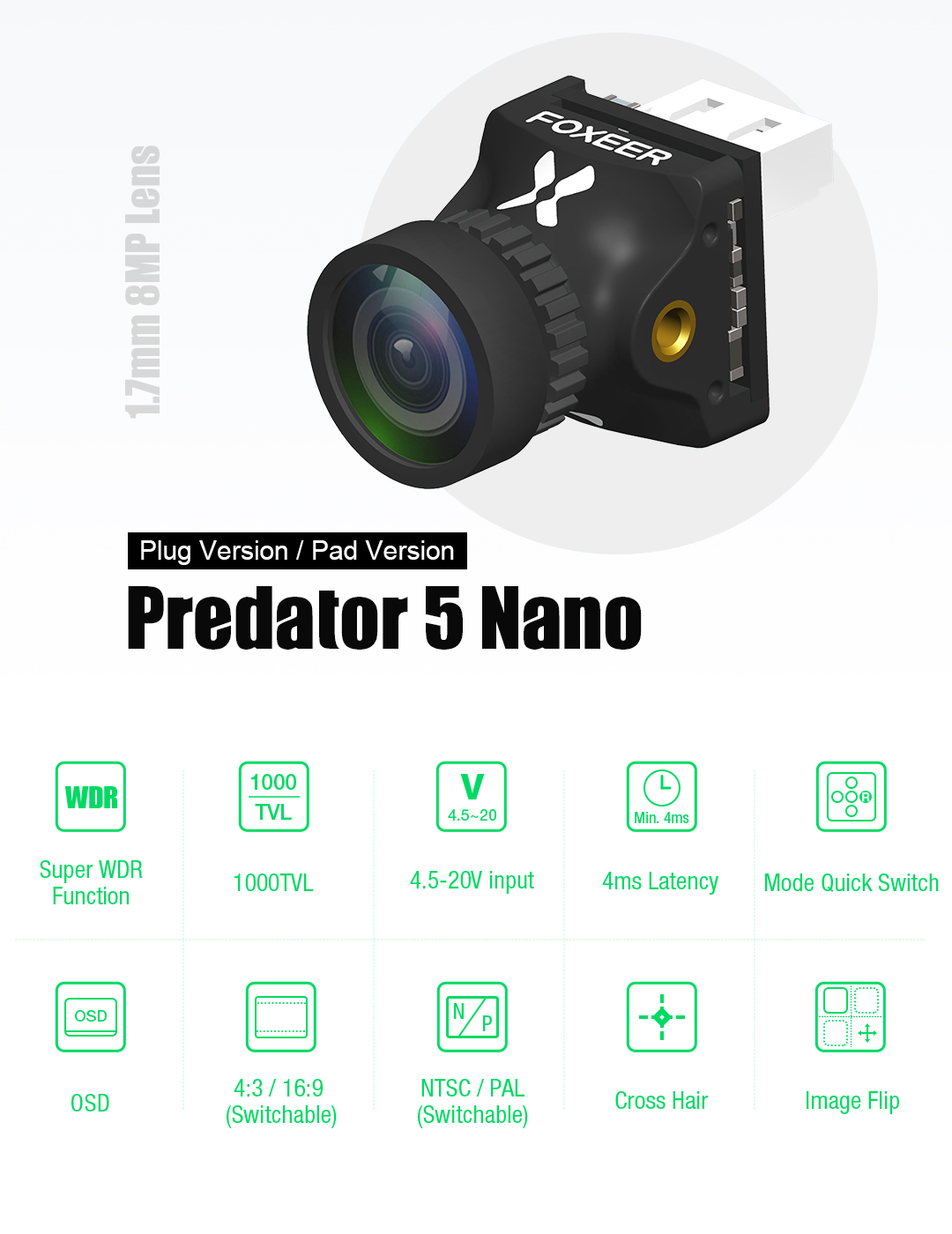

Features

• Super WDR Function
• 1000TVL
• 4.50-20V Input
• 4ms Latency
• Mode quick switch

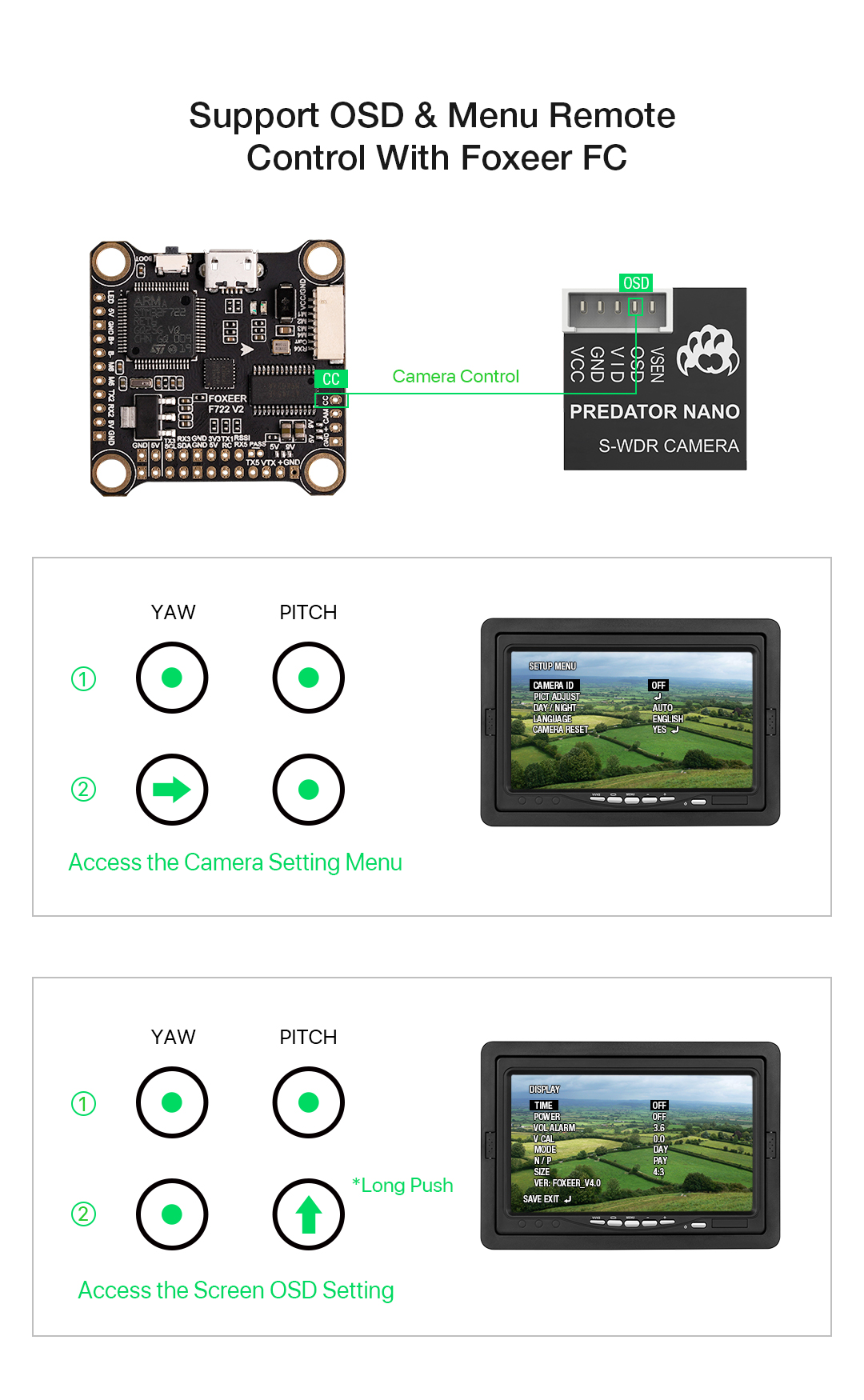

• OSD
• 4:3/16:9 switchable
• NTSC/Pal Switchable
• Image flip

Specifications

• Sensor Type: Sony 1/3" CMOS Sensor
• Lens Size: M8
• Scale: 4:3(default)/16:9 Switchable
• Tv System: PAL(default)/NTSC Switchable
• Resolution: 1000TVL
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output: CVBS Analog Signal
• FOV: 1.7mm: FOV-H:125° FOV-D: 155°
• Shutter Speed: Auto
• Minimum Illumination: 0.01Lux
• White Balance: Auto
• DNR: 3DNR 2DNR
• WDR: Super WDR
• DAY/NIGHT: Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time/Cross Hair
• Mode: DAY/CLOUDY/Night/LED
• Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
• Input Voltage: 4.5V~20V
• Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V

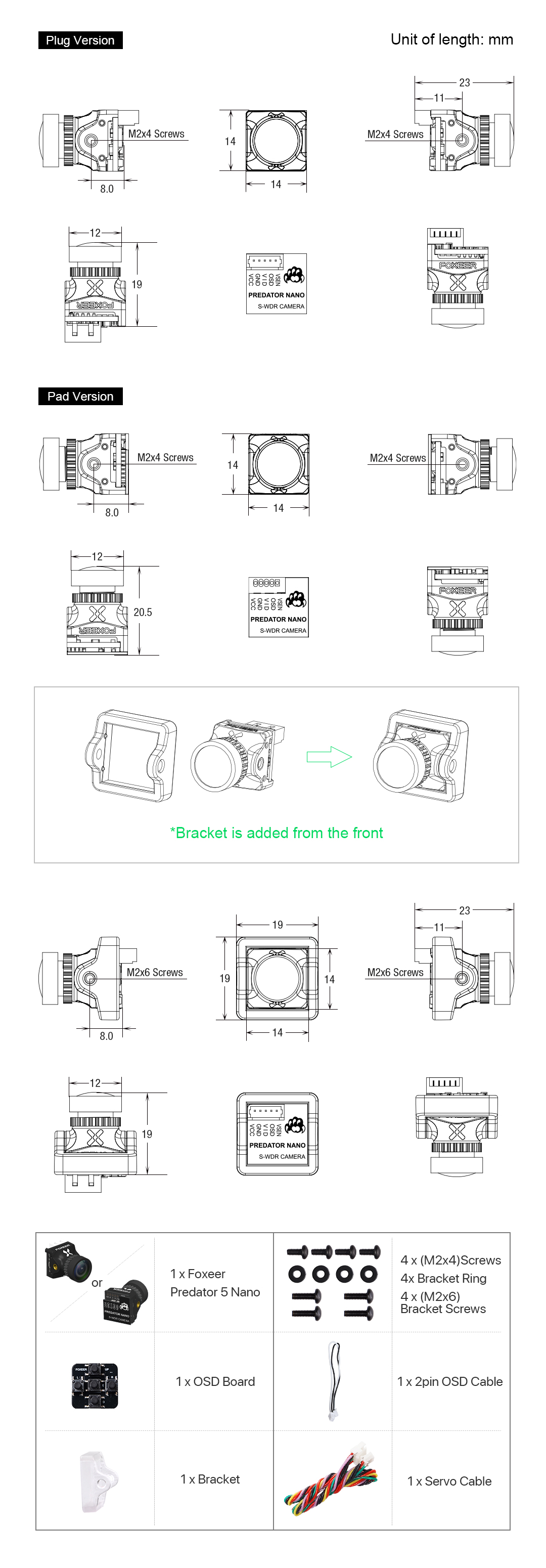

• Dimension: 14x14mm
• Weight: 5.8g(Exclude cable)
