Flywoo GOKU H743 PRO Mini 45A AM32 20x20 Stack

Name: Flywoo GOKU H743 PRO Mini 45A AM32 20x20 Stack
Brand: FlyWoo
SKU: FW-L4
Price: 114.99 CAD
Availability: InStock

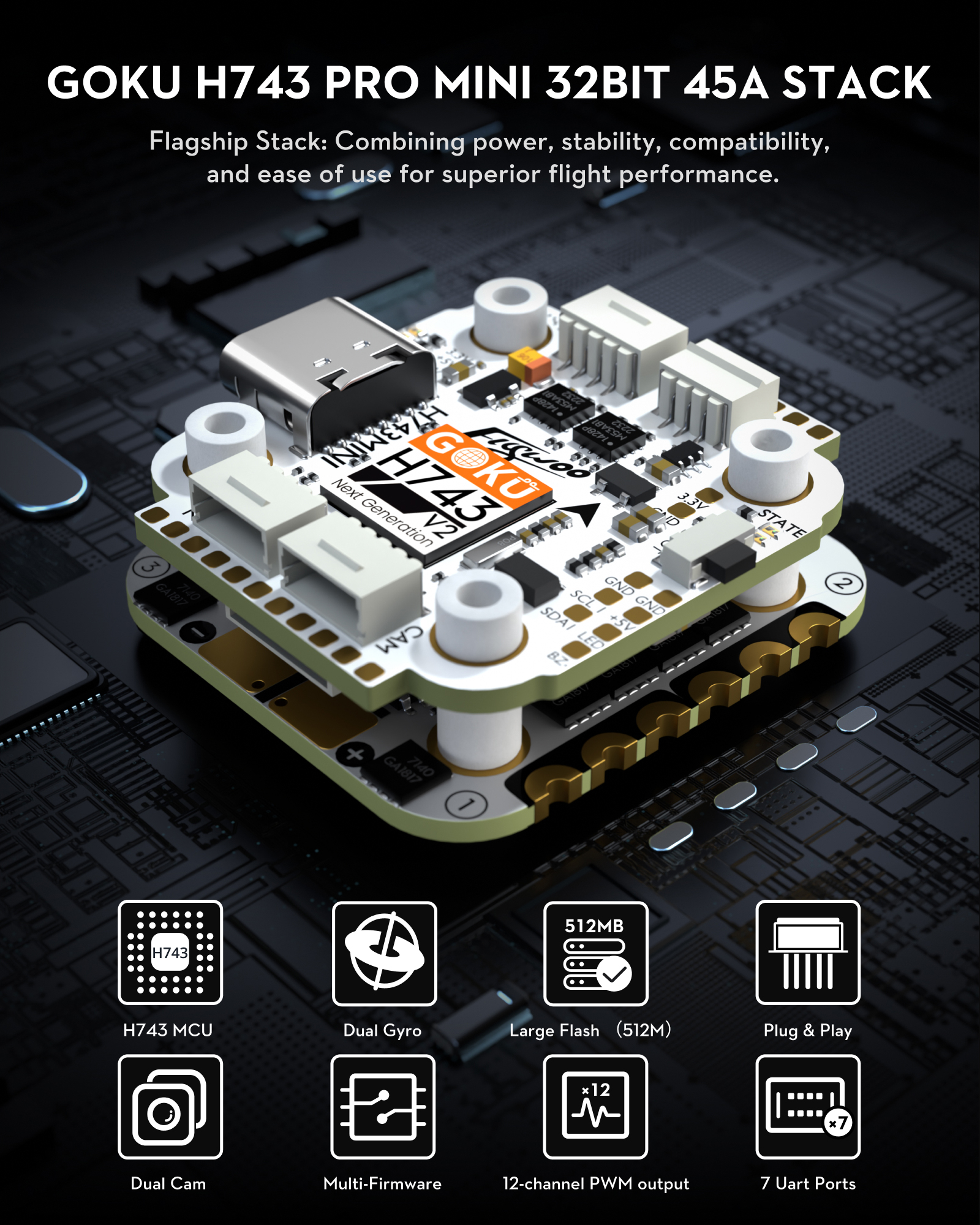

GOKU H743 Pro Mini 32bit 45A Stack is Flywoo’s flagship flight controller and ESC combo.

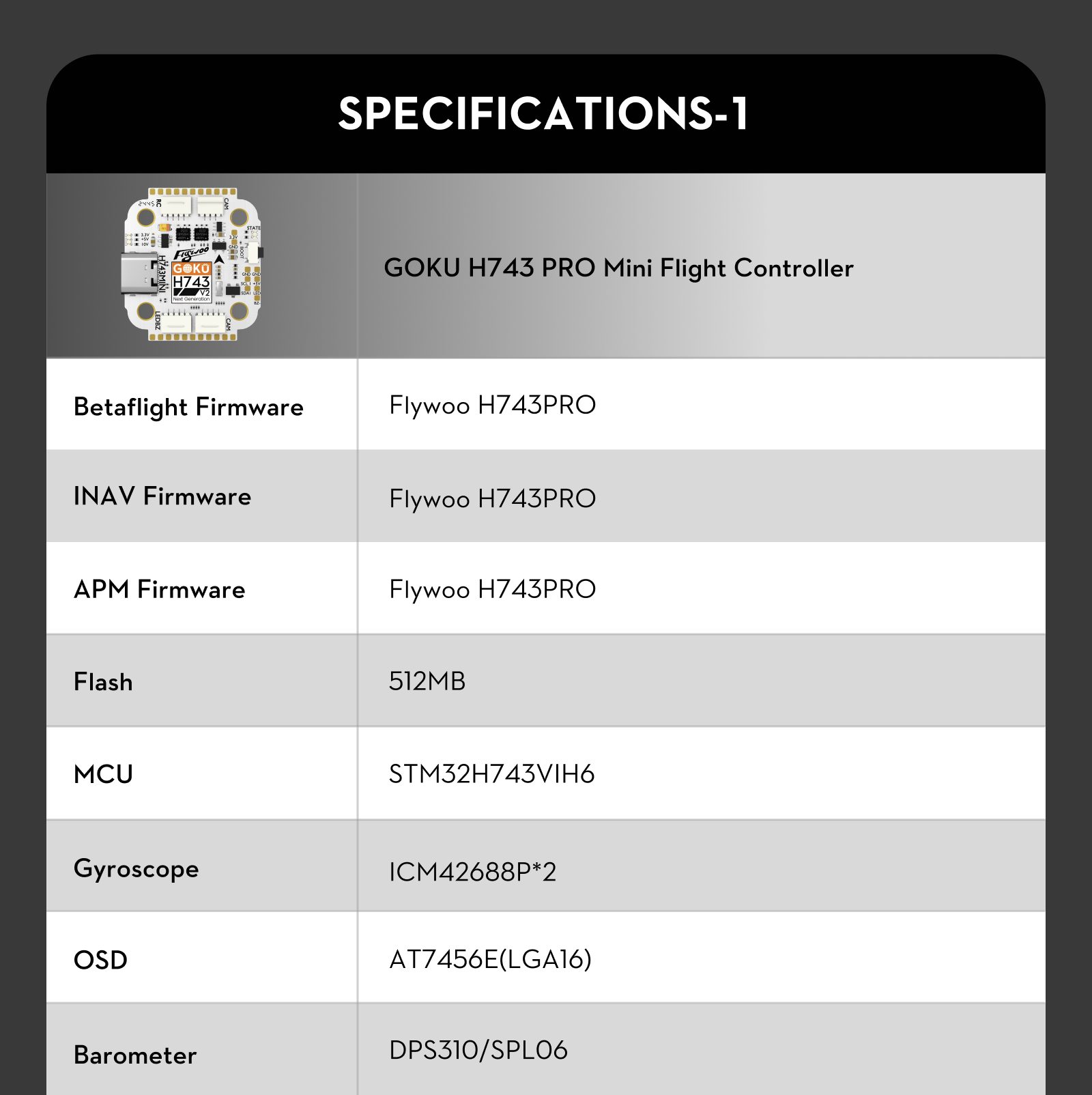

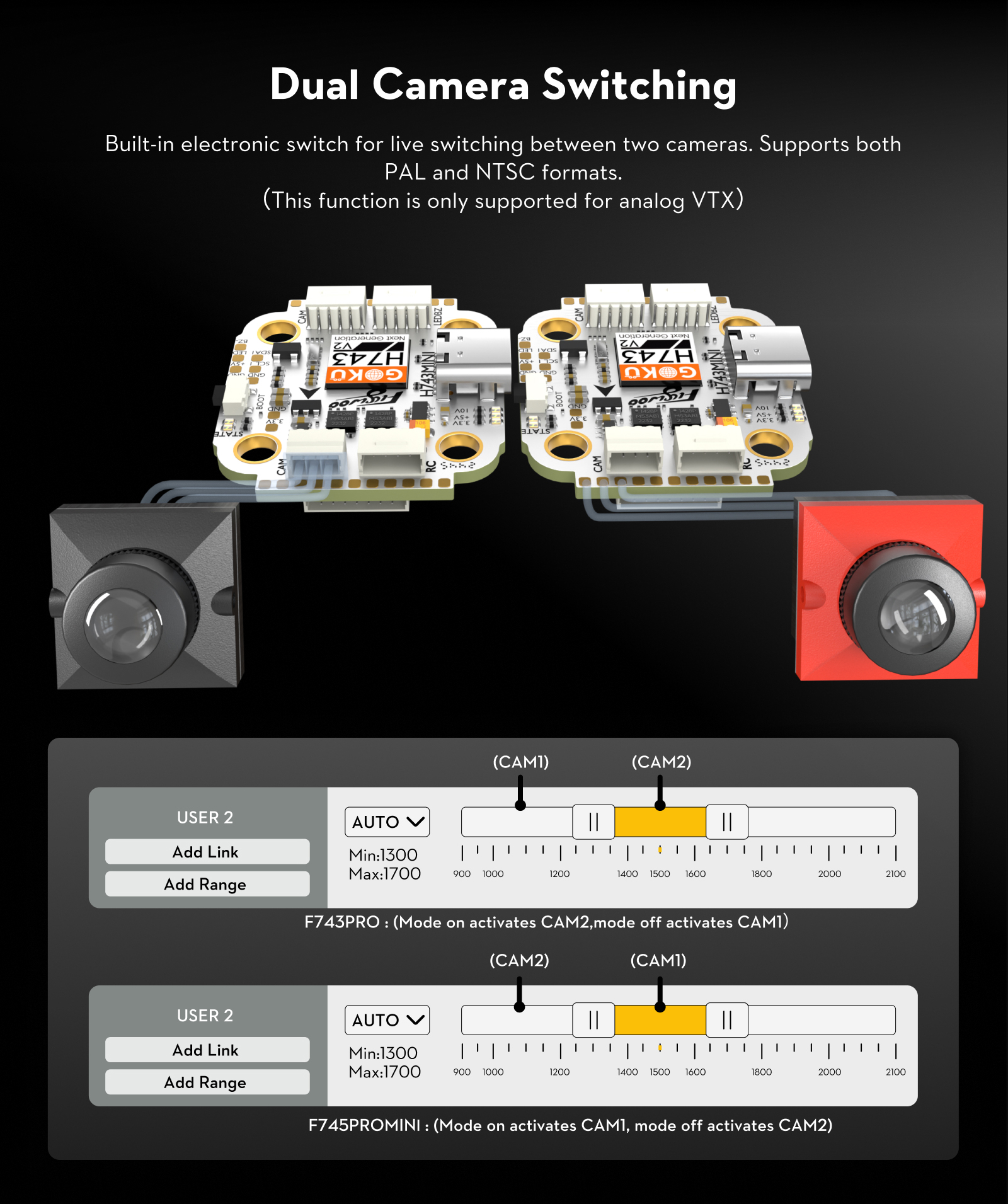

It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB blackbox , 10V2A/5V2A dual BECs, and 8 motor outputs for X8 multi-rotor. It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors. Paired with the GOKU G45M 45A ESC, it delivers fast, precise handling for racing and freestyle.

Highlights：

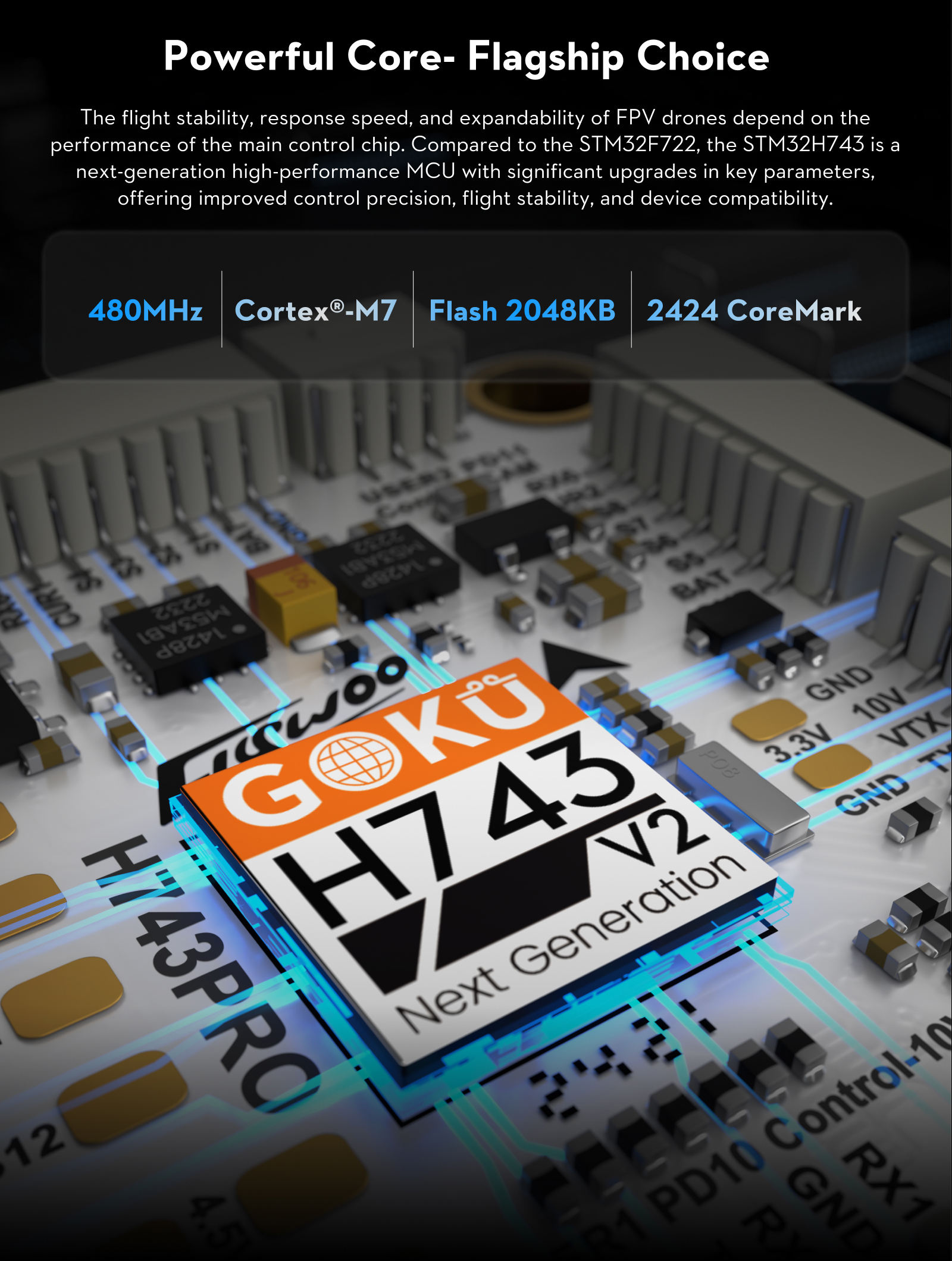

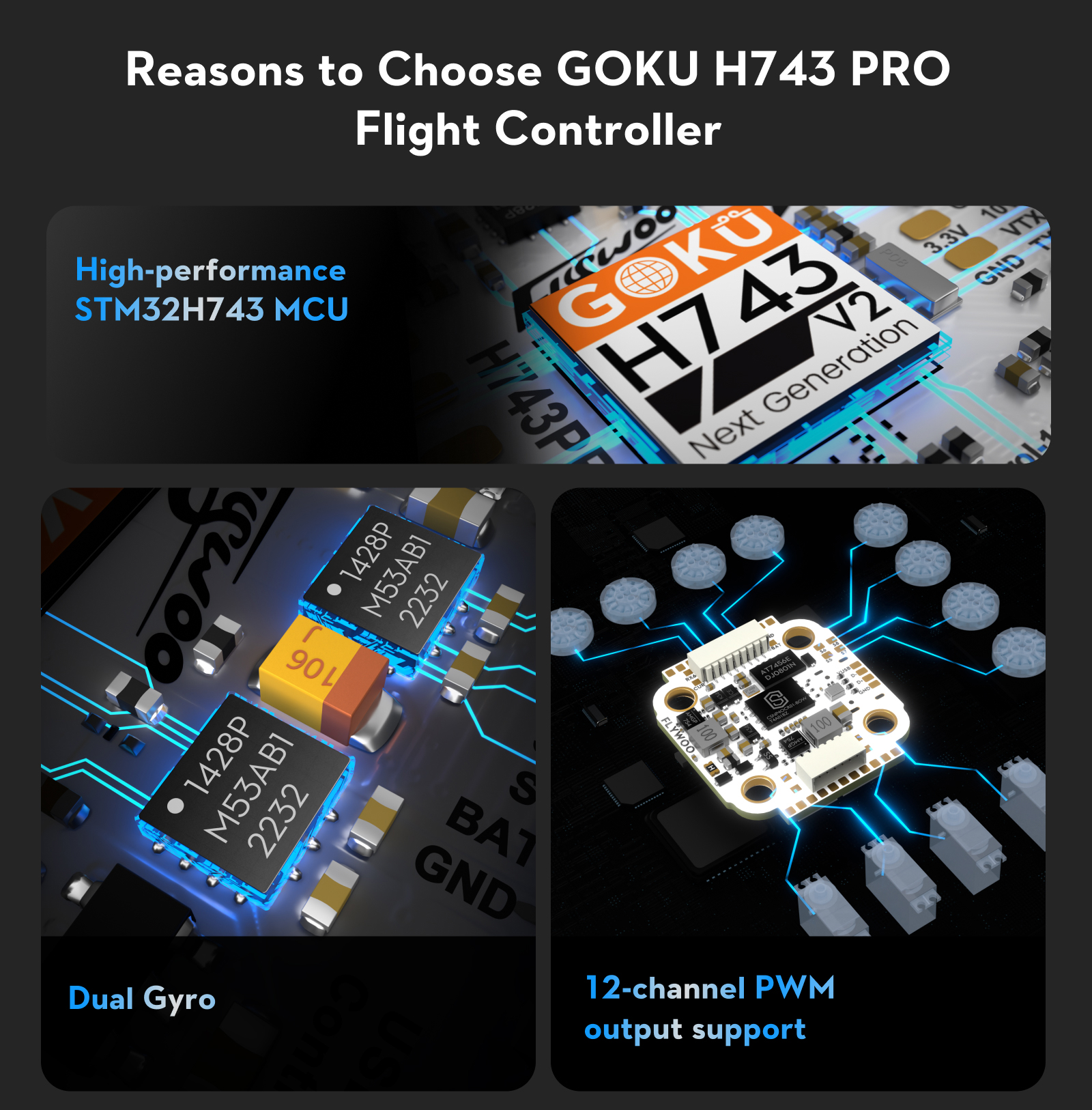

1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.

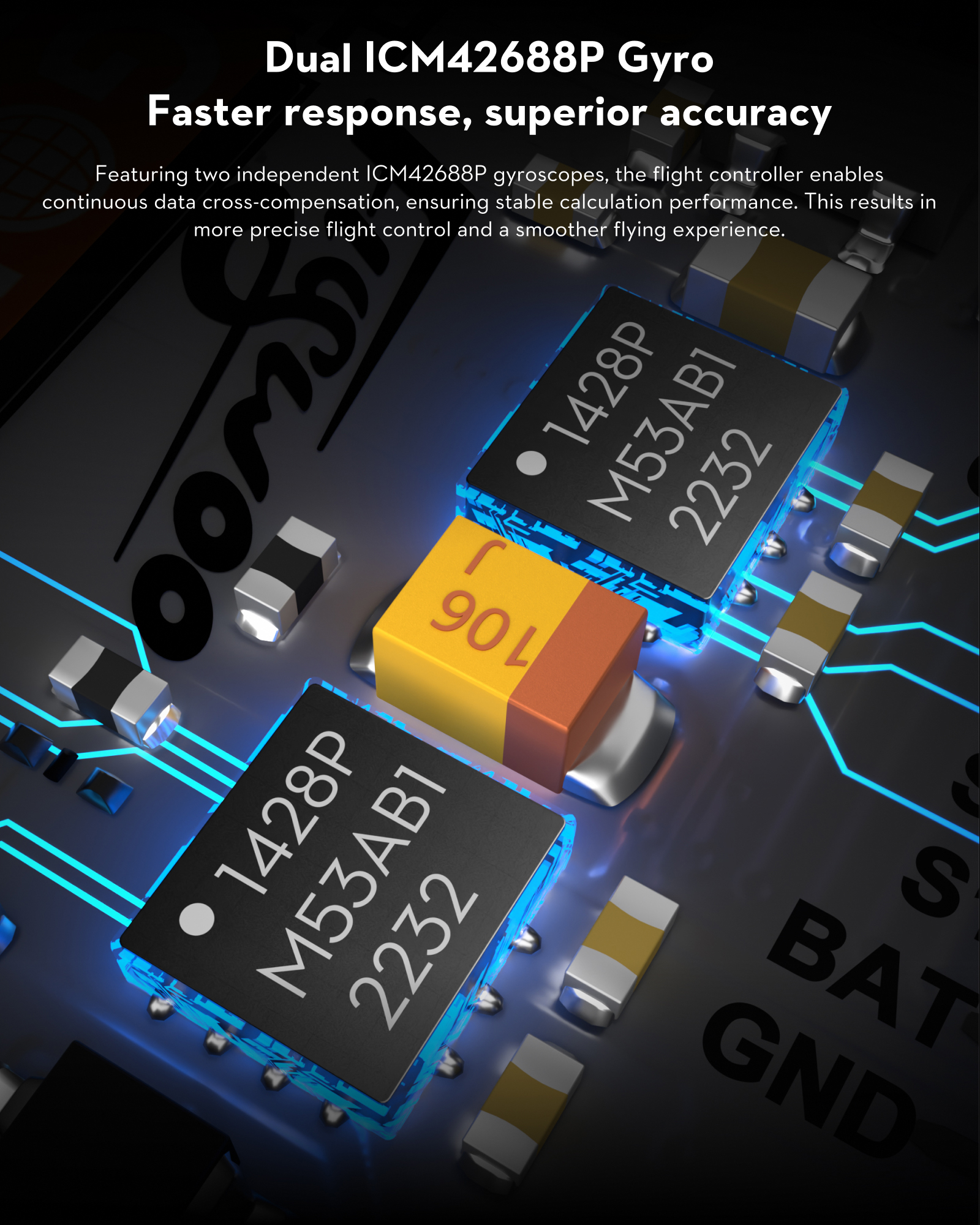

2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.

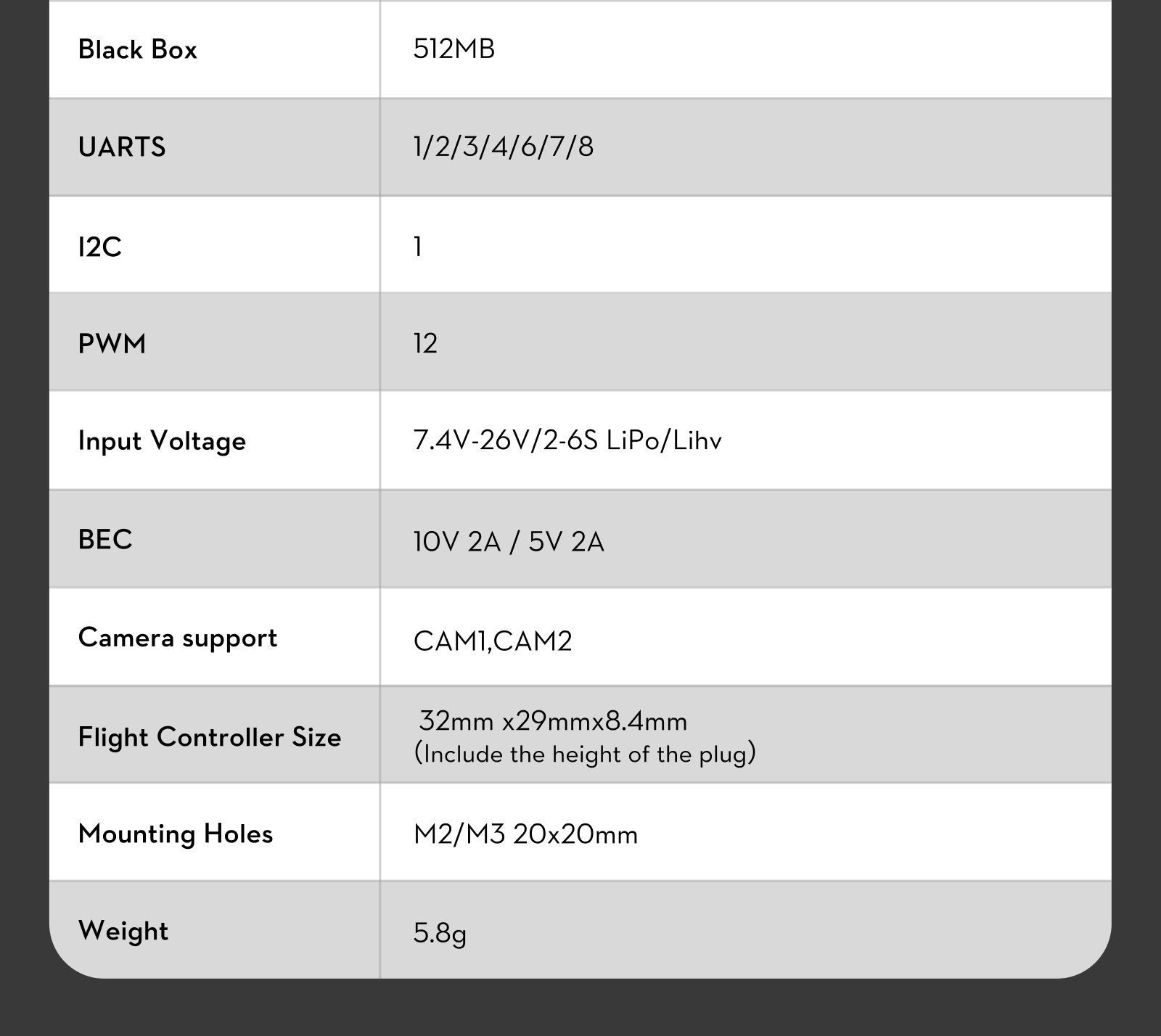

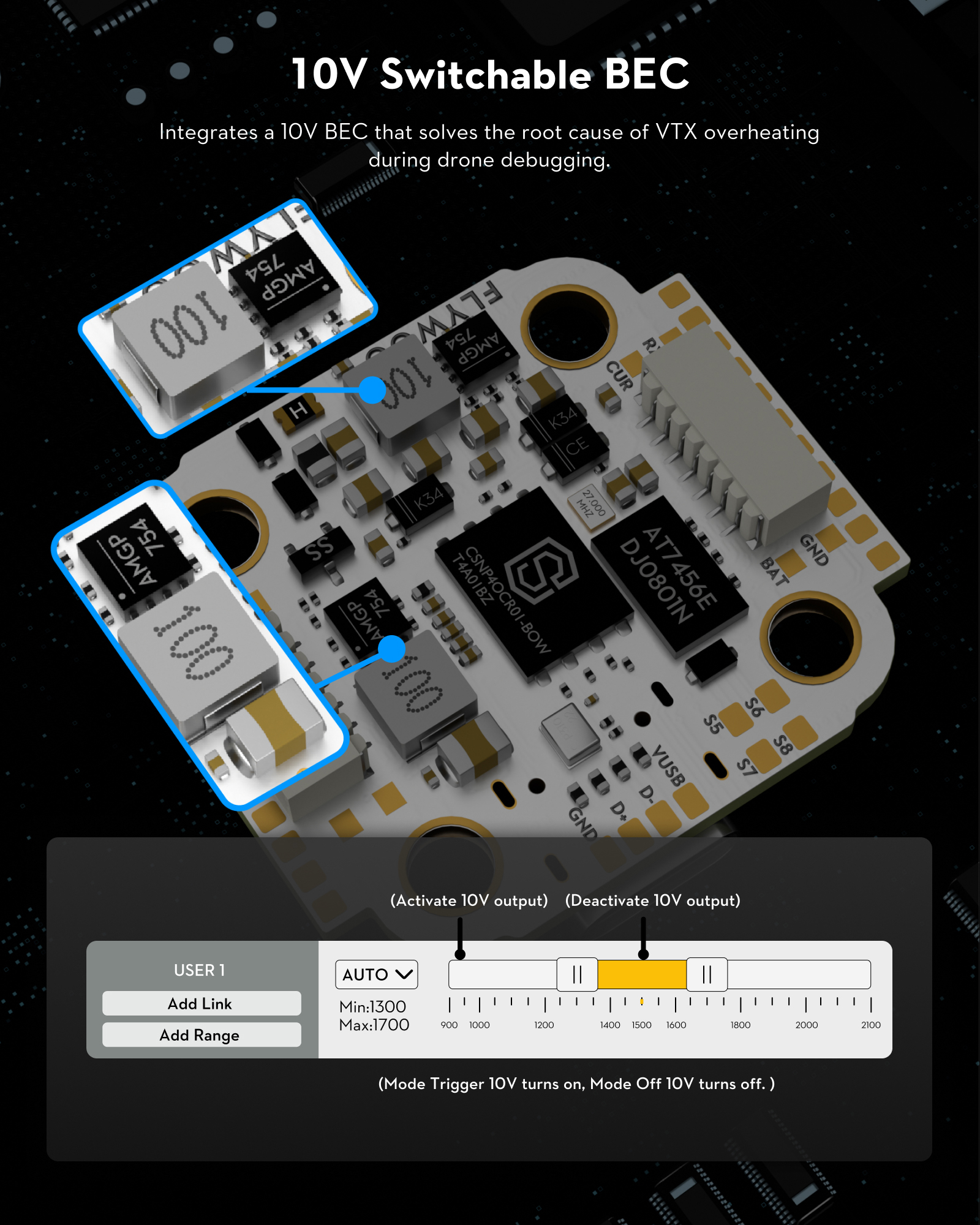

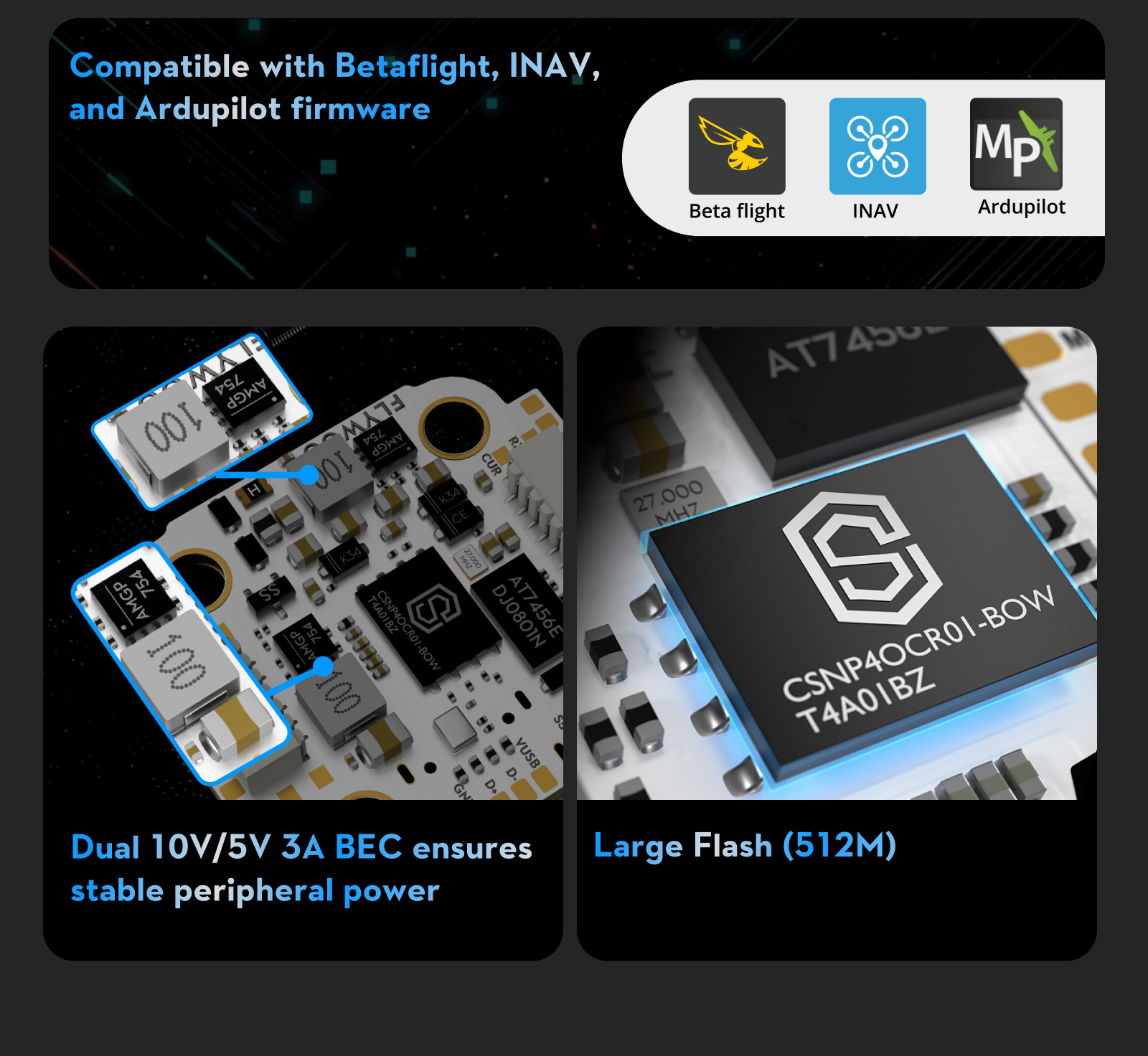

3. Efficient Power: Dual 10V/5V 2A BEC provides stable power for peripherals.

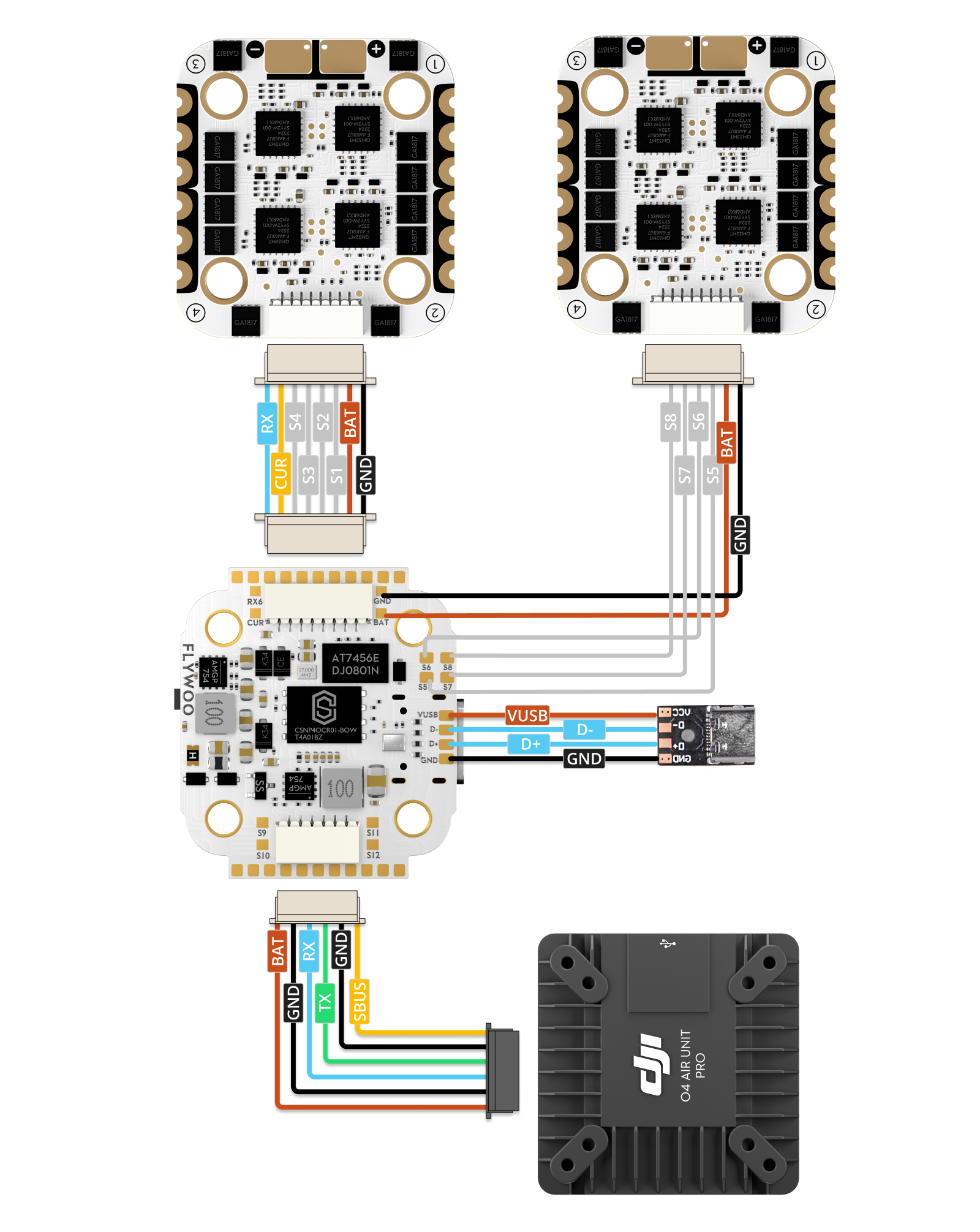

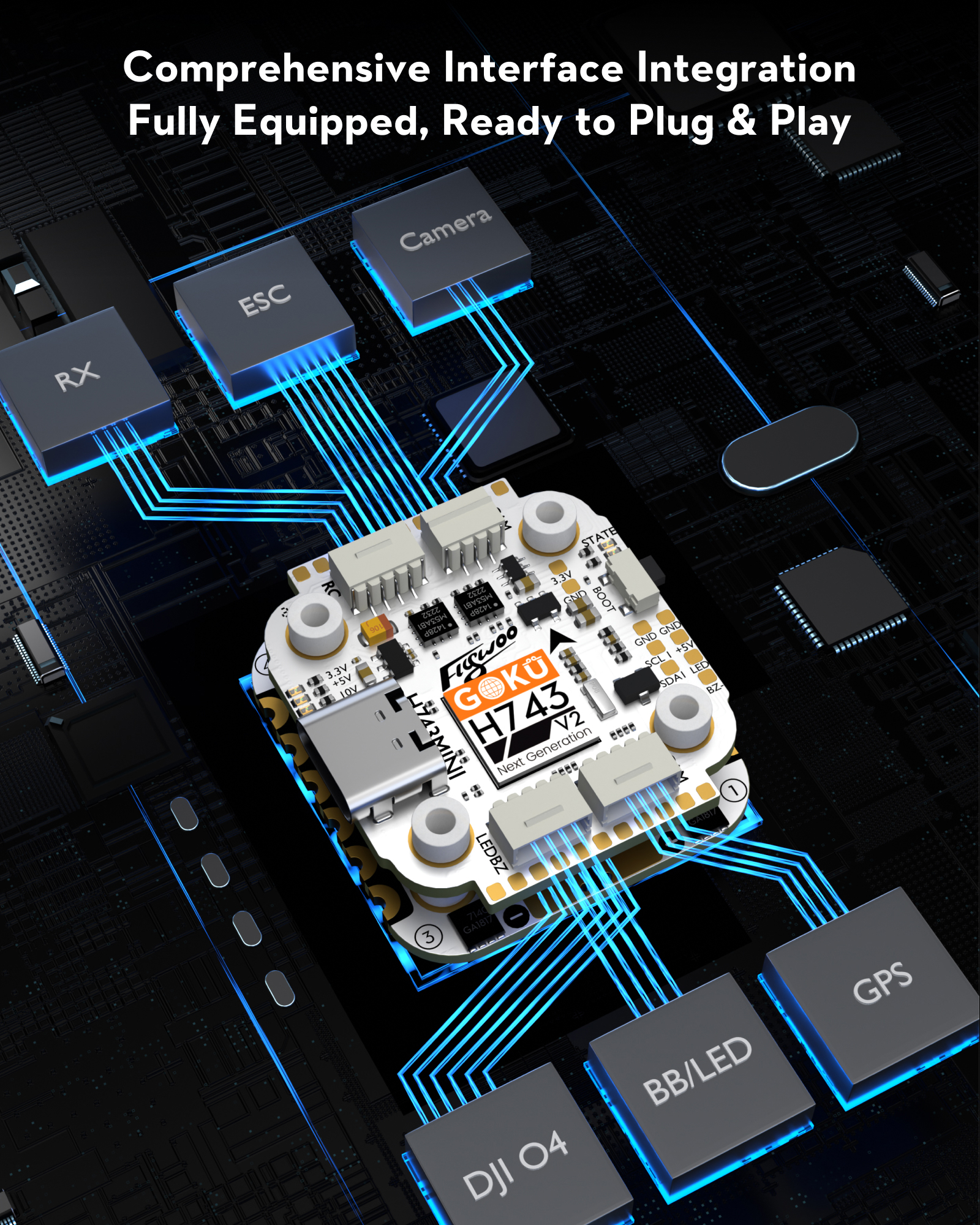

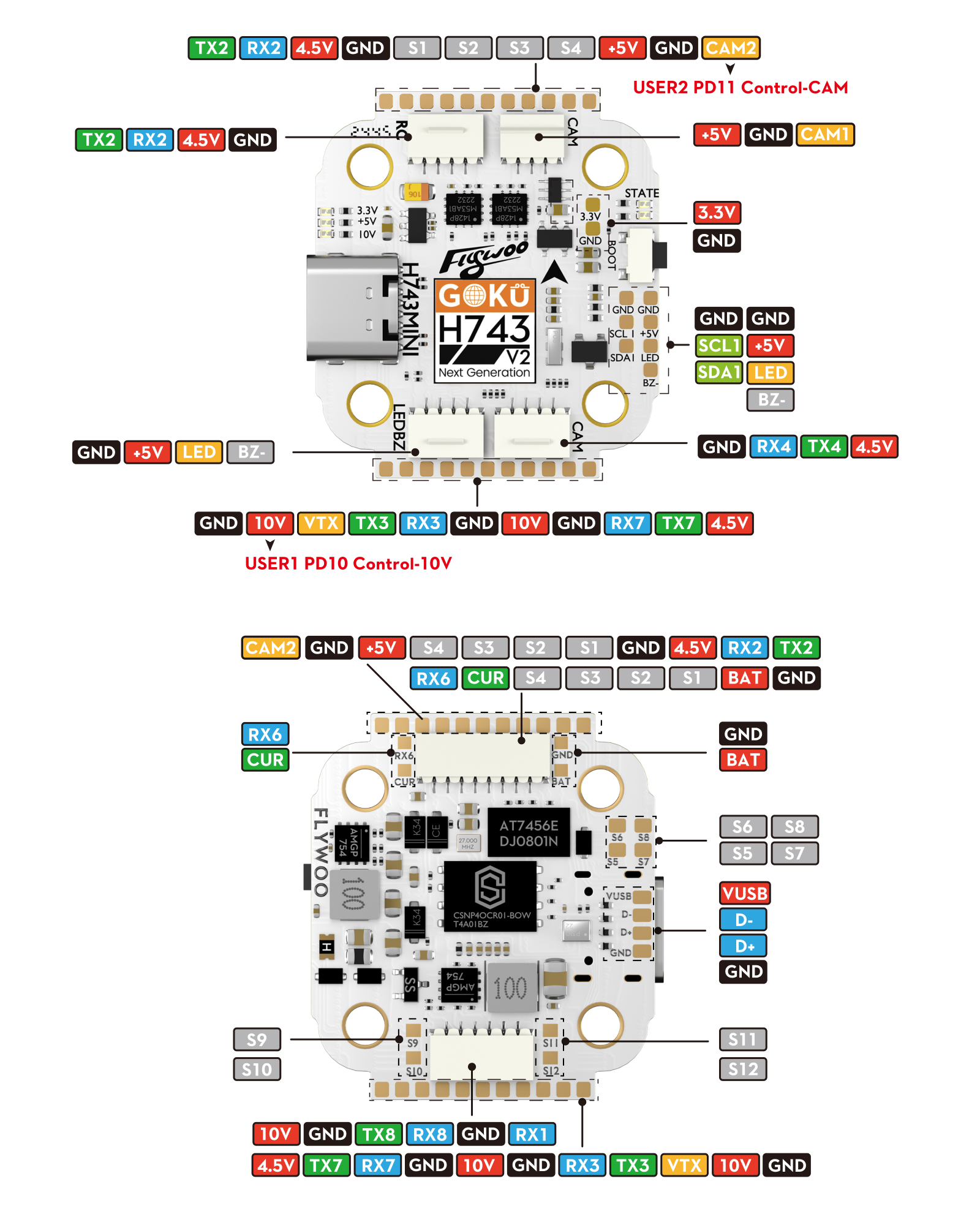

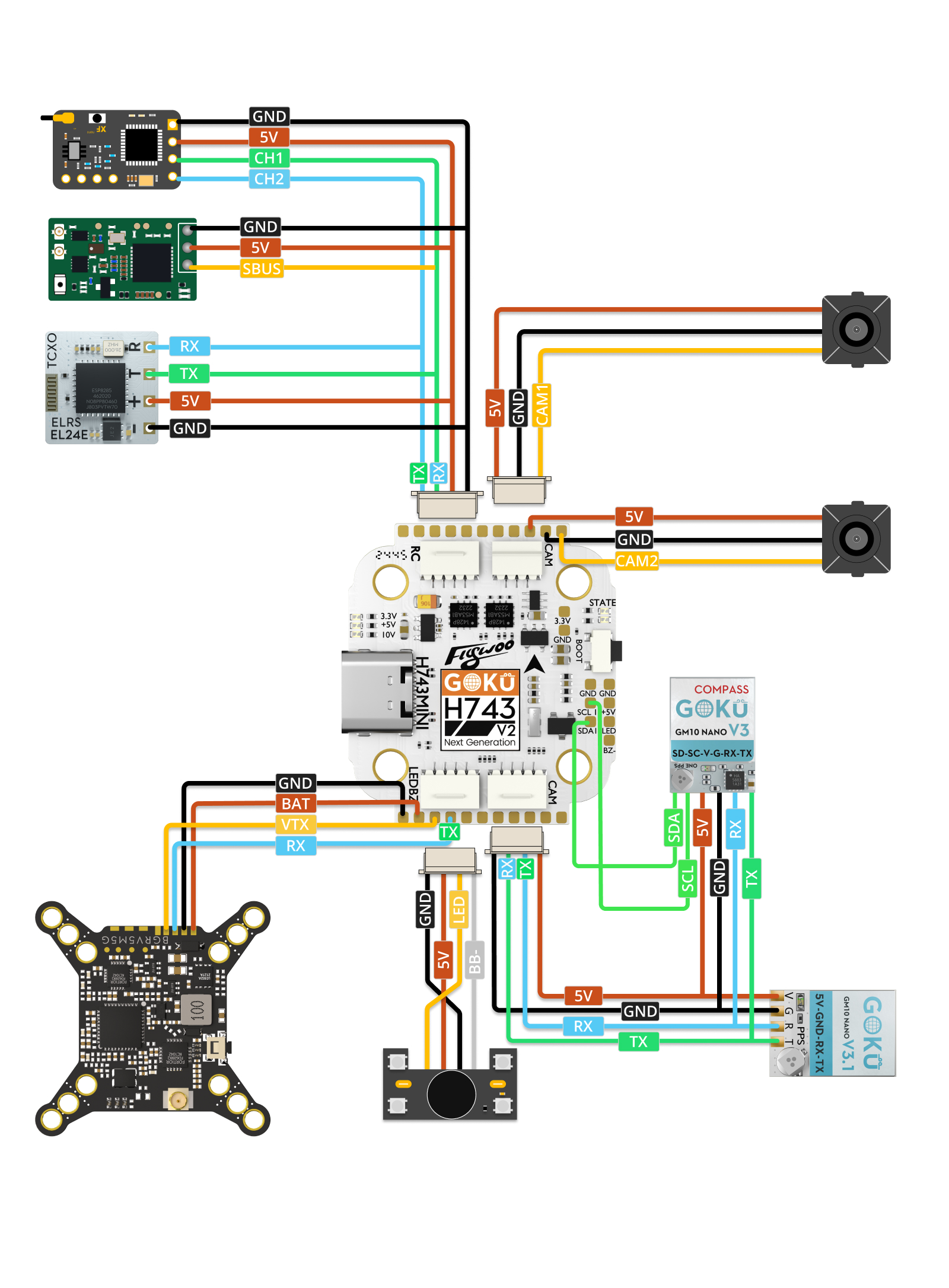

4. Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
