Flywoo GOKU H743 PRO Flight Controller

***DOES NOT INCLUDE ESC

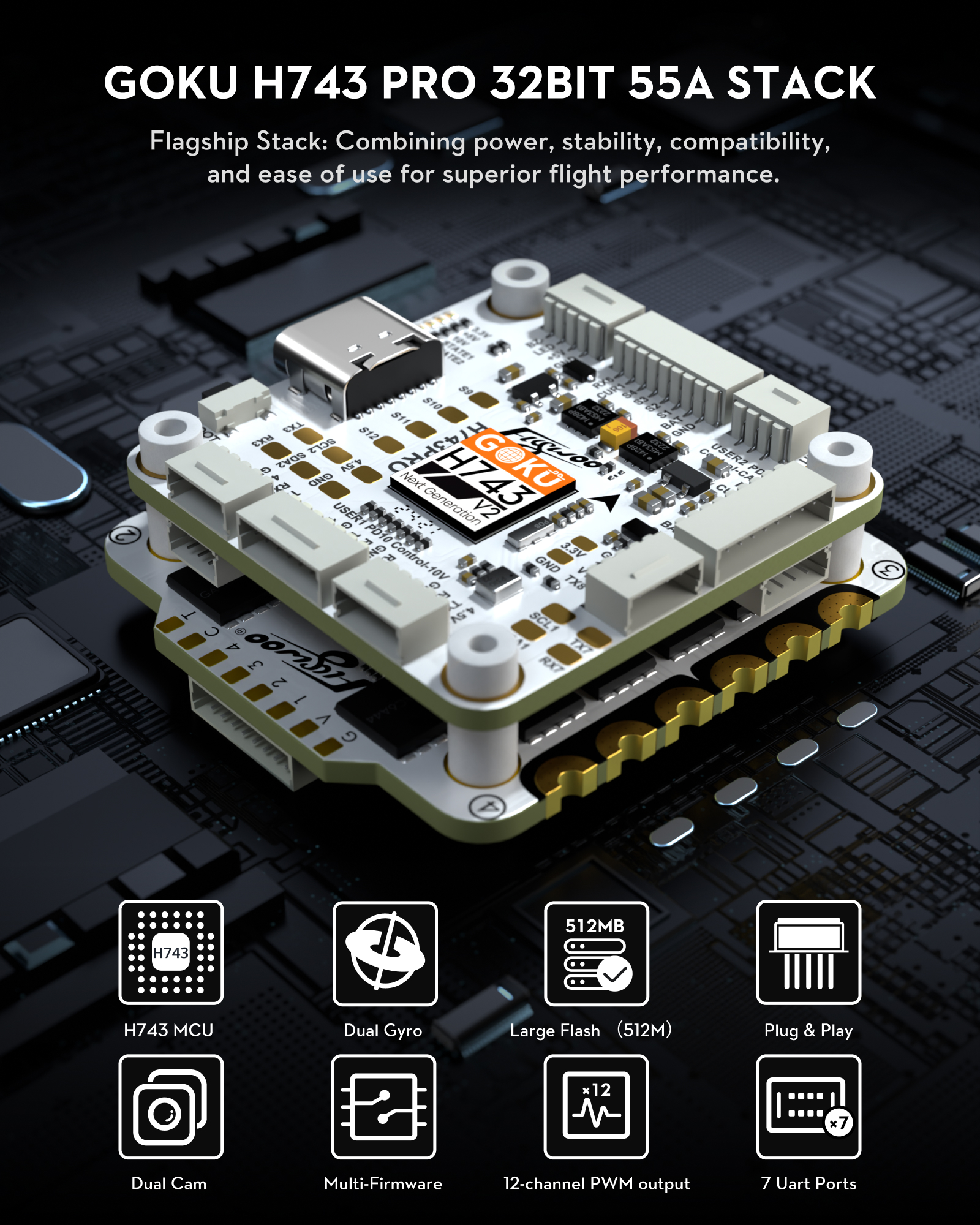

The new generation GOKU H743 PRO flight controller from FLYWOO features a powerful STM32H743 processor, dual ICM42688P gyroscopes, and a standard 30.5 mm mounting size. It supports up to 8 motor outputs, includes dual ESC and camera ports, and is designed for plug-and-play integration with DJI O4 and O4 Pro systems, making it a top-tier choice for advanced FPV builds.

It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.

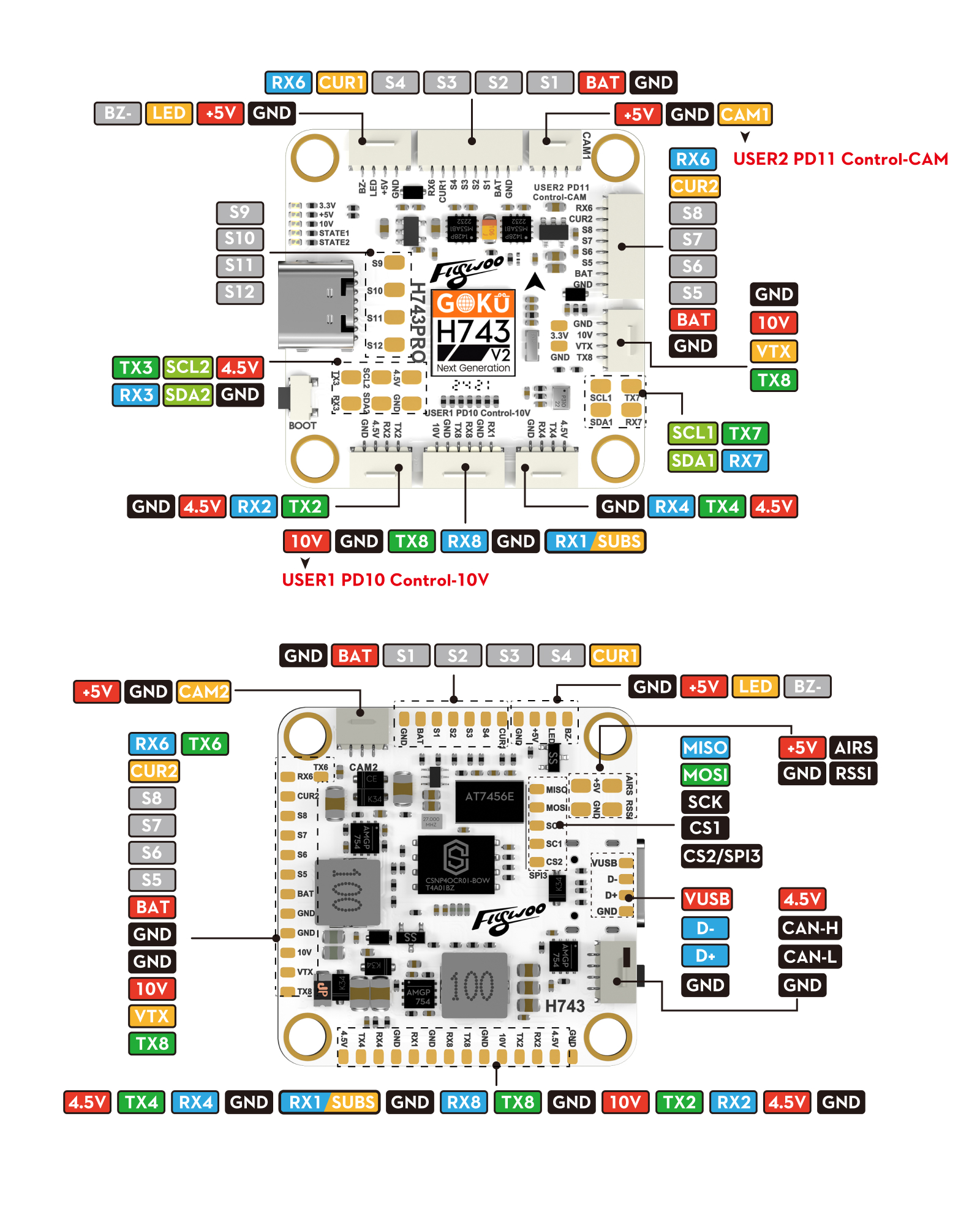

All solder pads are retained, giving builders the flexibility to connect peripherals using their preferred wiring method.

In addition, the stack features a plug-and-play interface specifically designed for the DJI O4 and O4 Pro systems, making installation quick and seamless for pilots who want to take full advantage of DJI’s latest digital transmission technology.

Highlights：

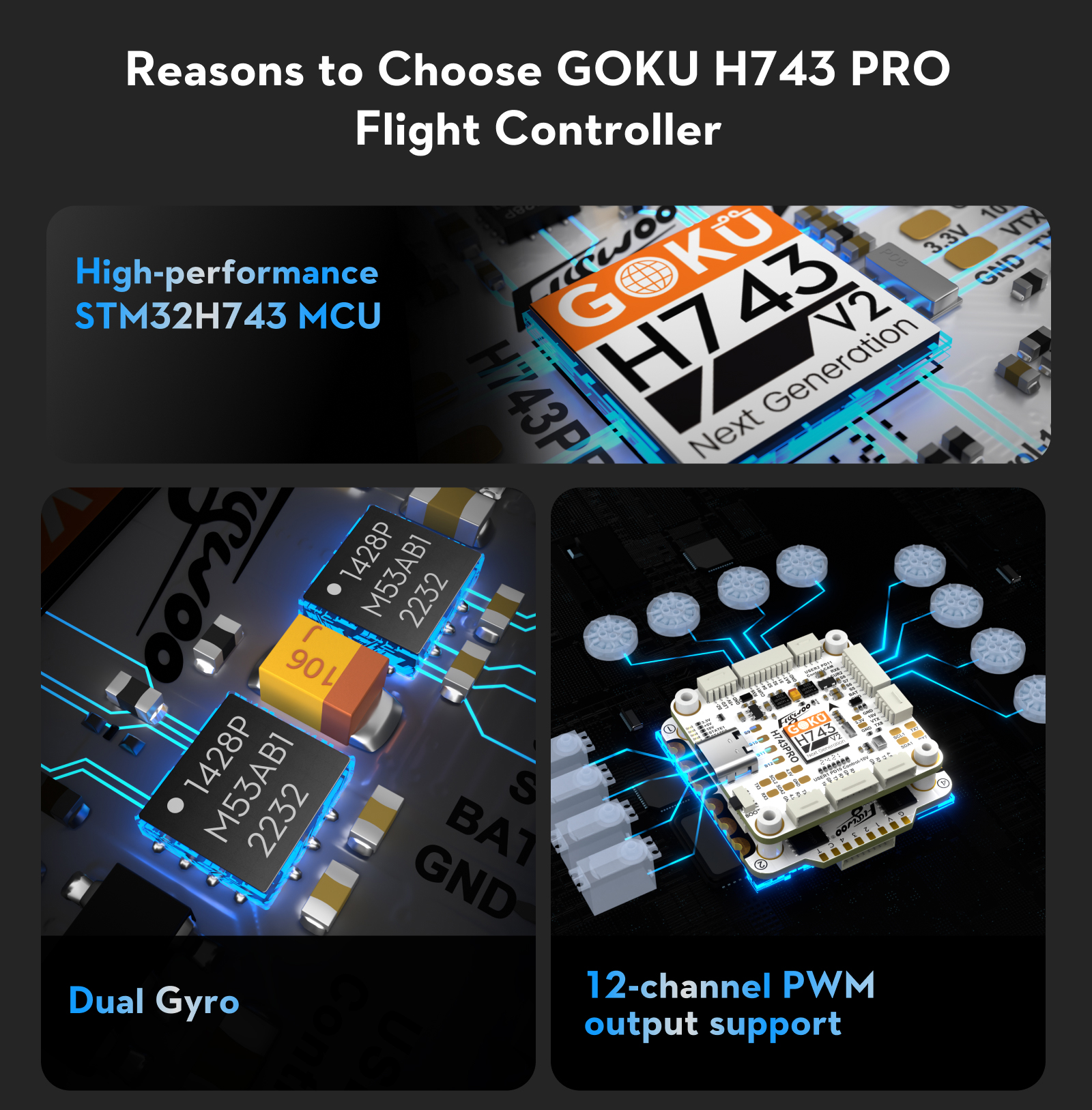

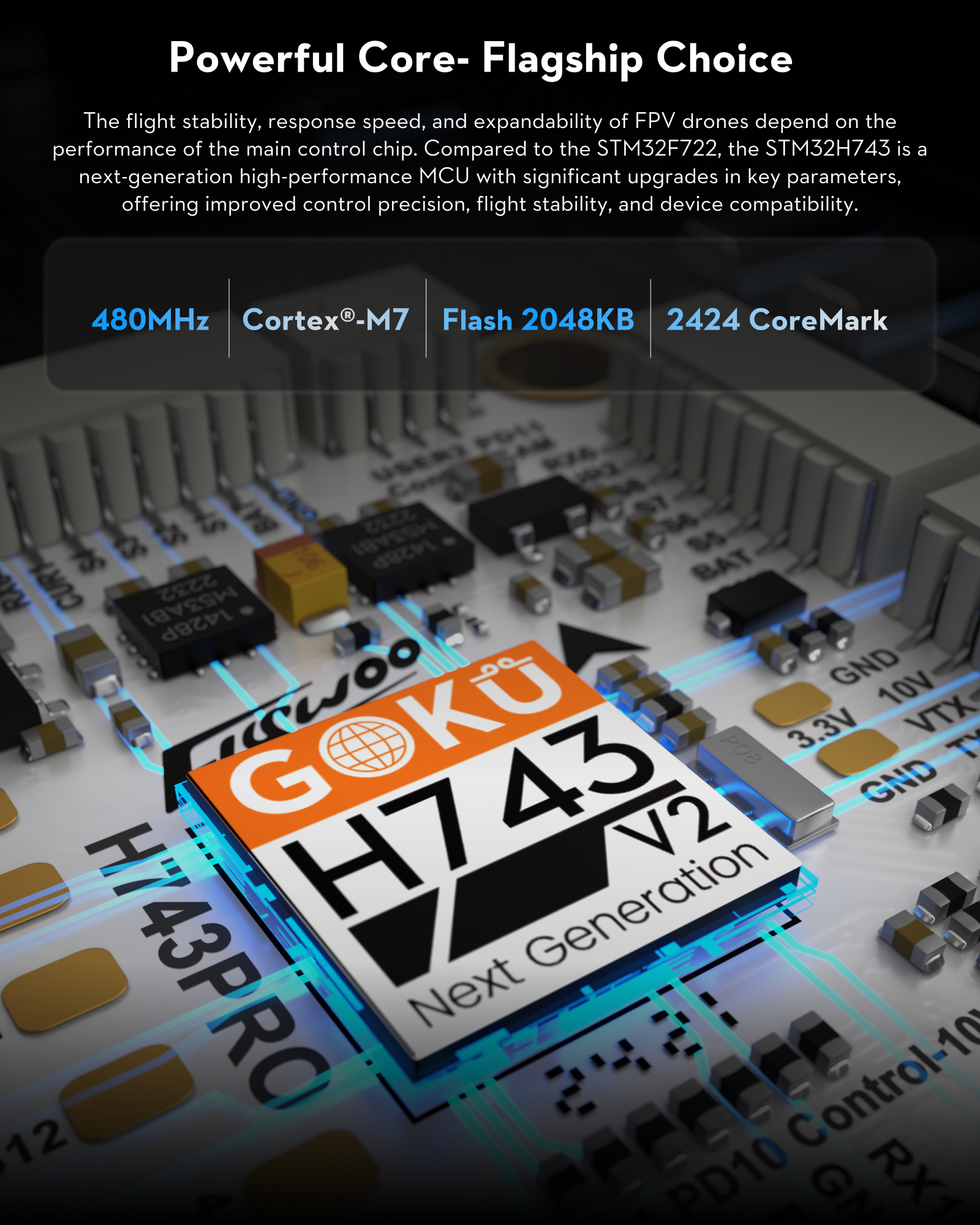

1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.

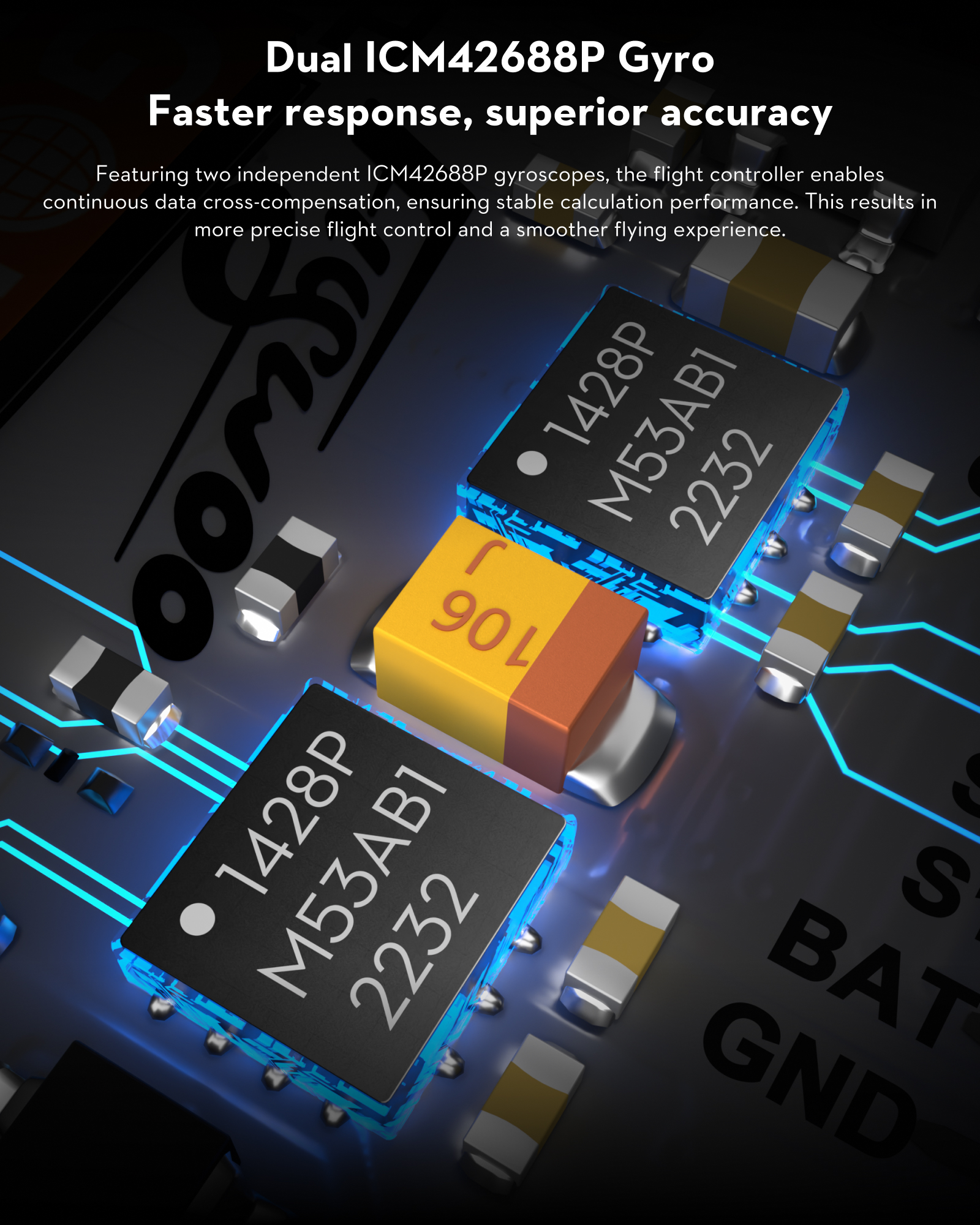

2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.

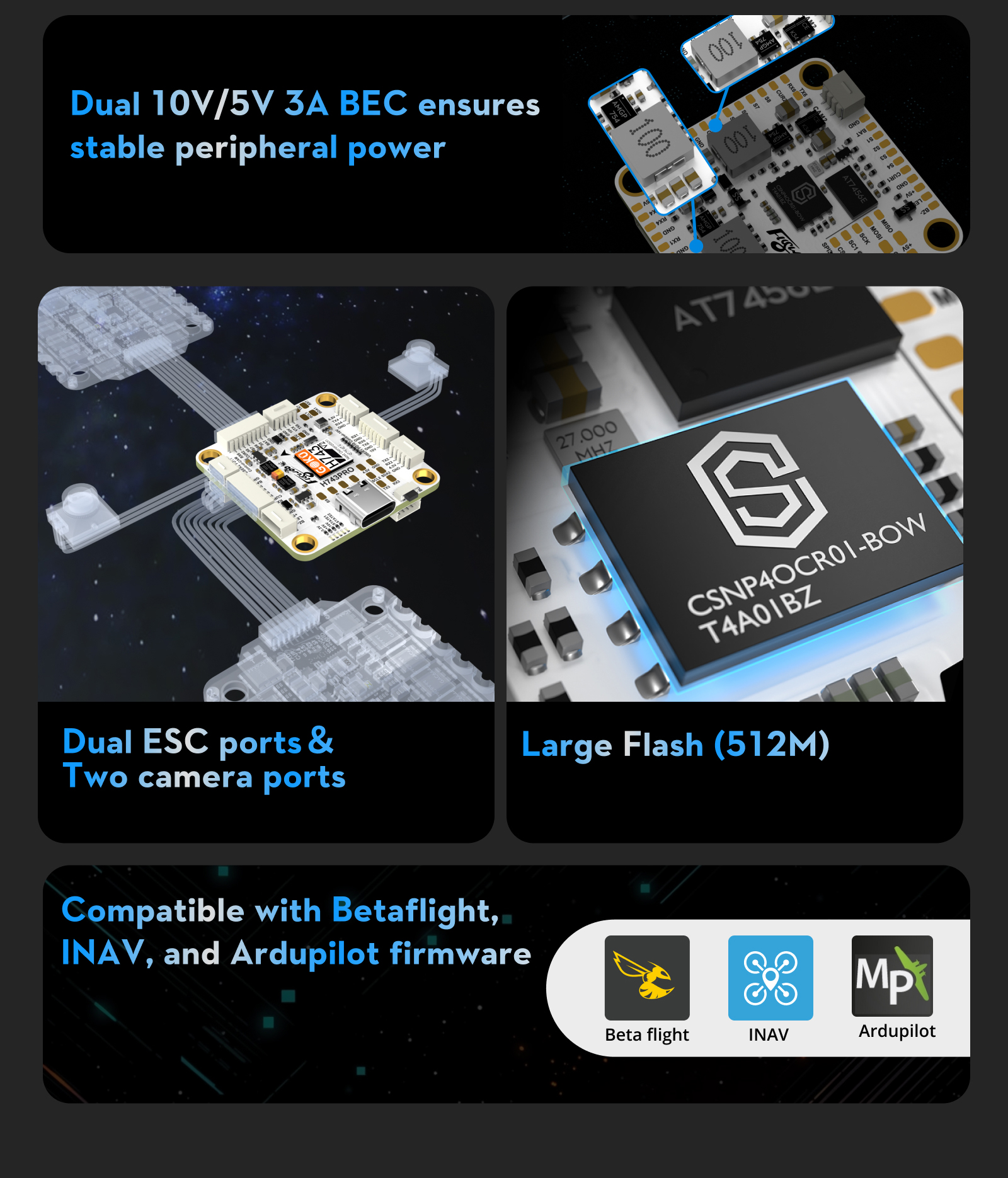

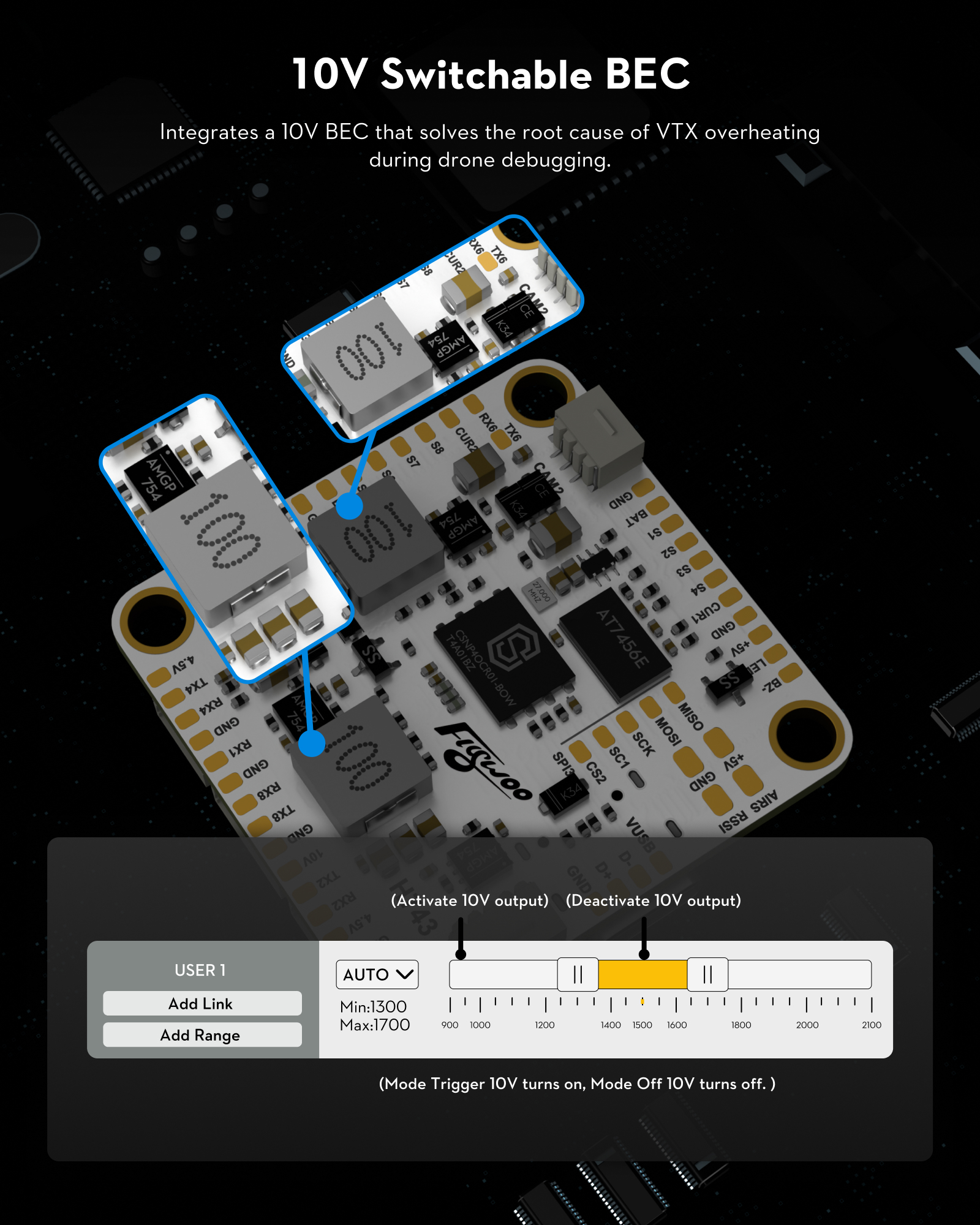

3. Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.

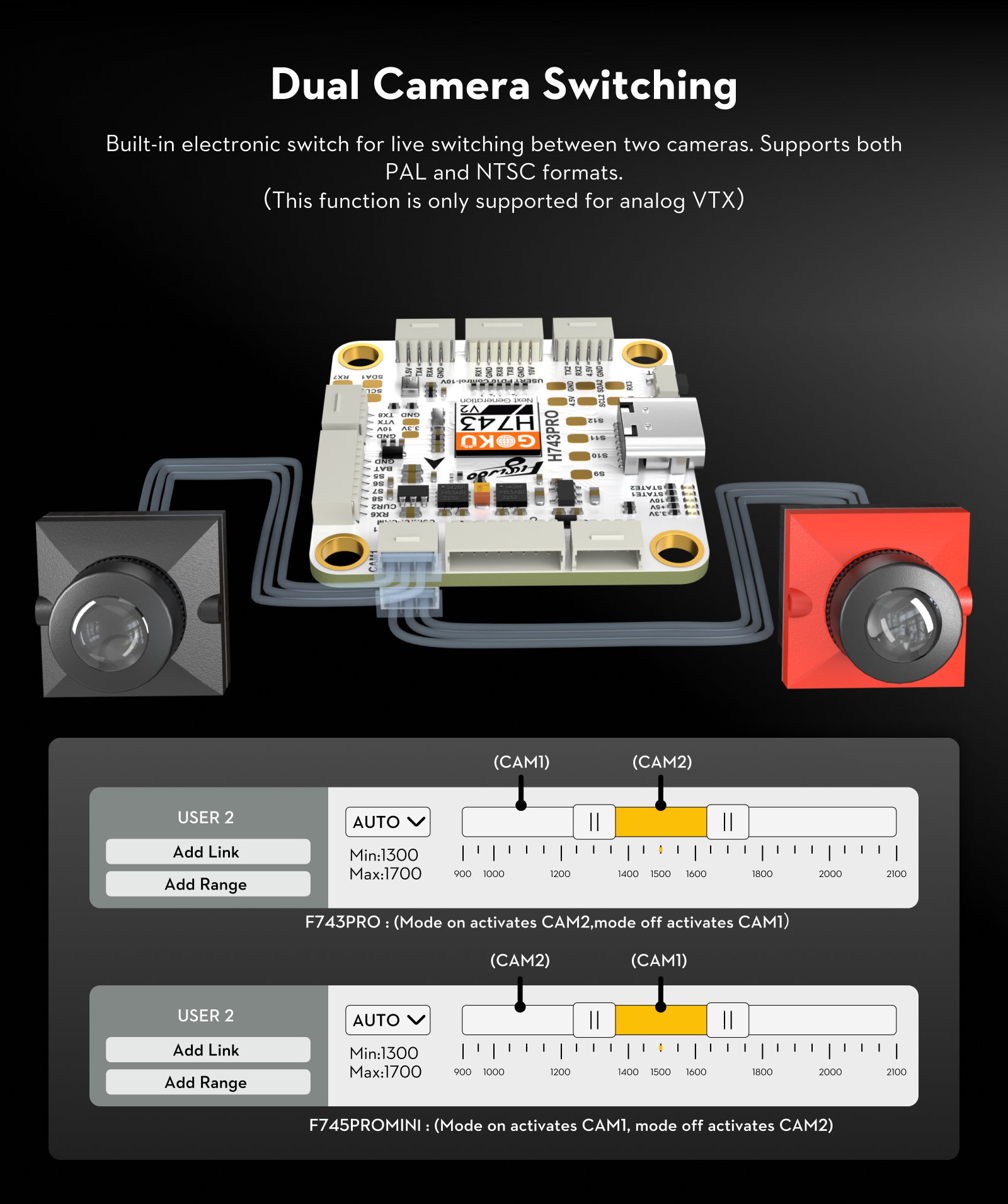

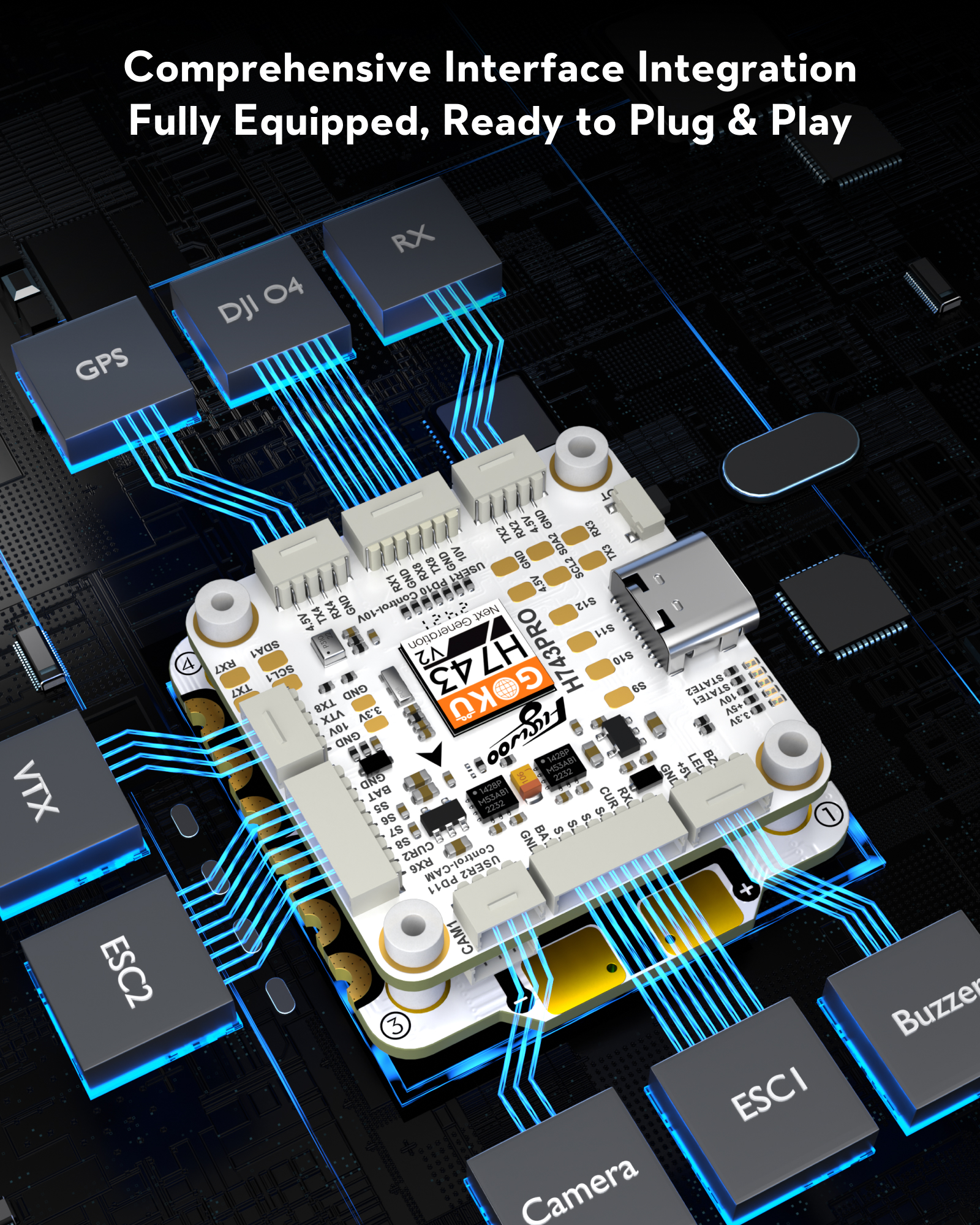

4. Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
