FlyWoo GM10 Nano V3.0 GPS Module

FlyWoo GM10 Nano V3.0 GPS Module

$25.99
SKU:
FW-A1

Out of Stock

Out of Stock

FlyWoo GM10 Nano V3.0 GPS Module

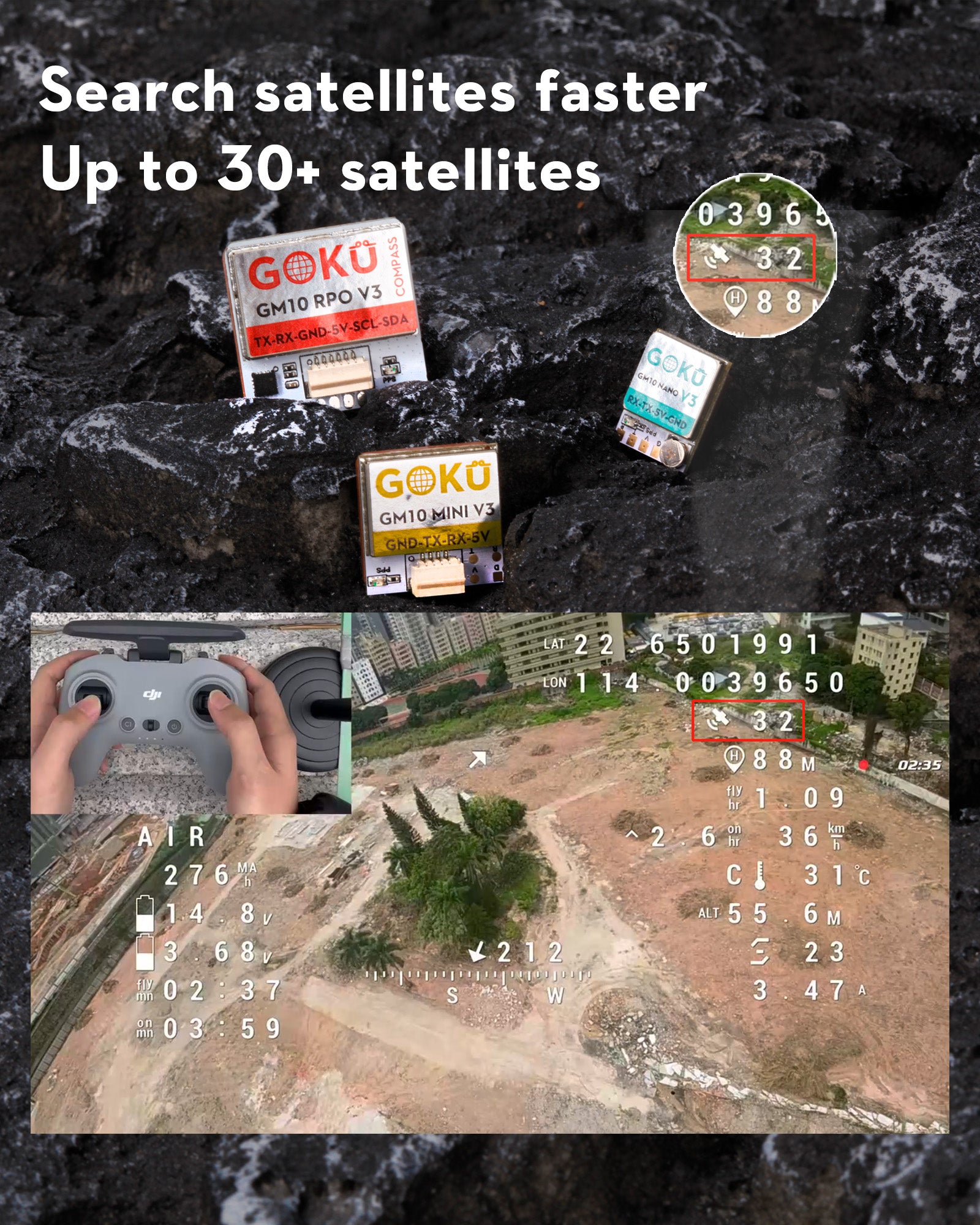

GOKU GM10 V3 GPS series is here! Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

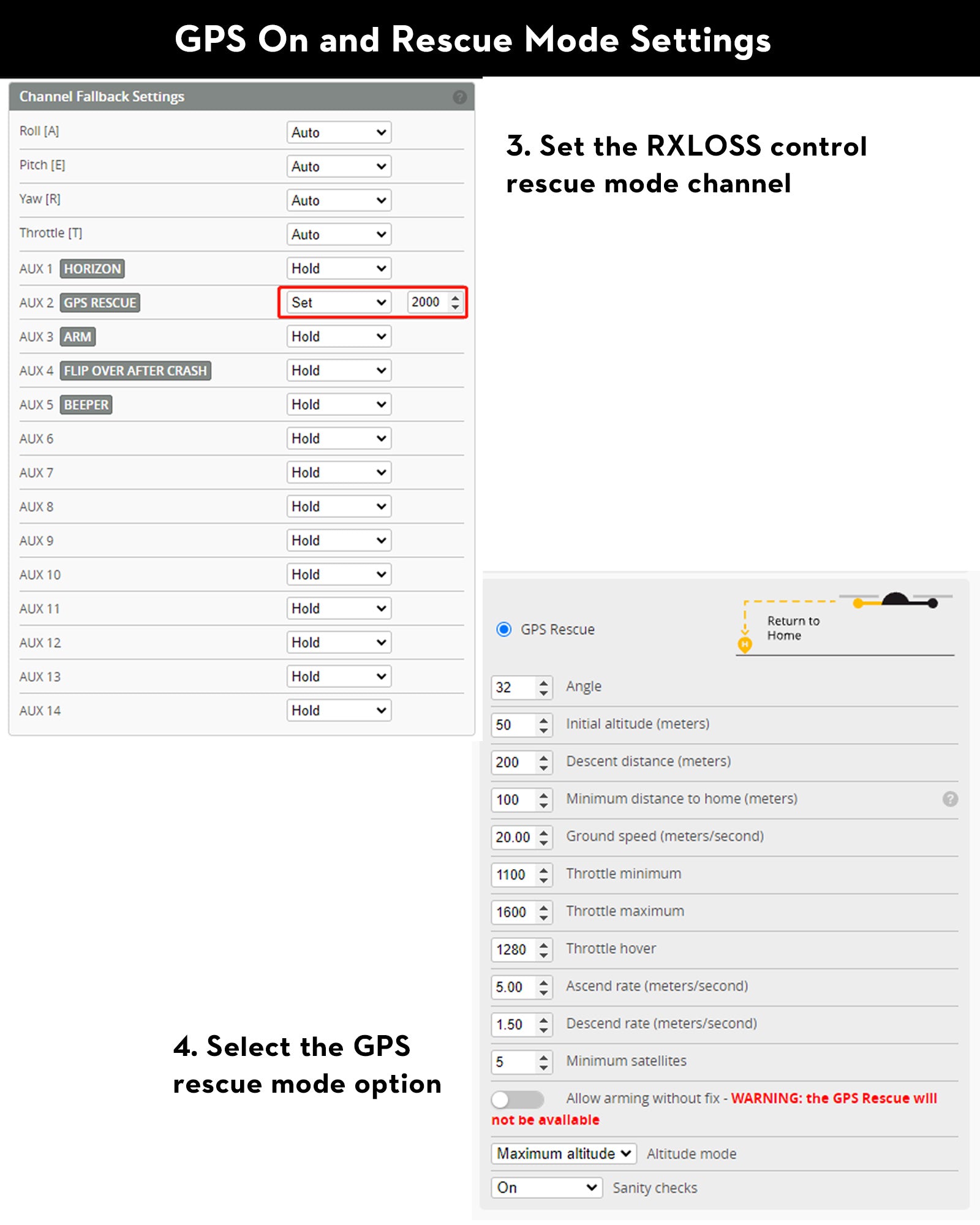

Need help with setup? Follow this simple tutorial by Oscar Liang - https://oscarliang.com/gps-mini-quad/

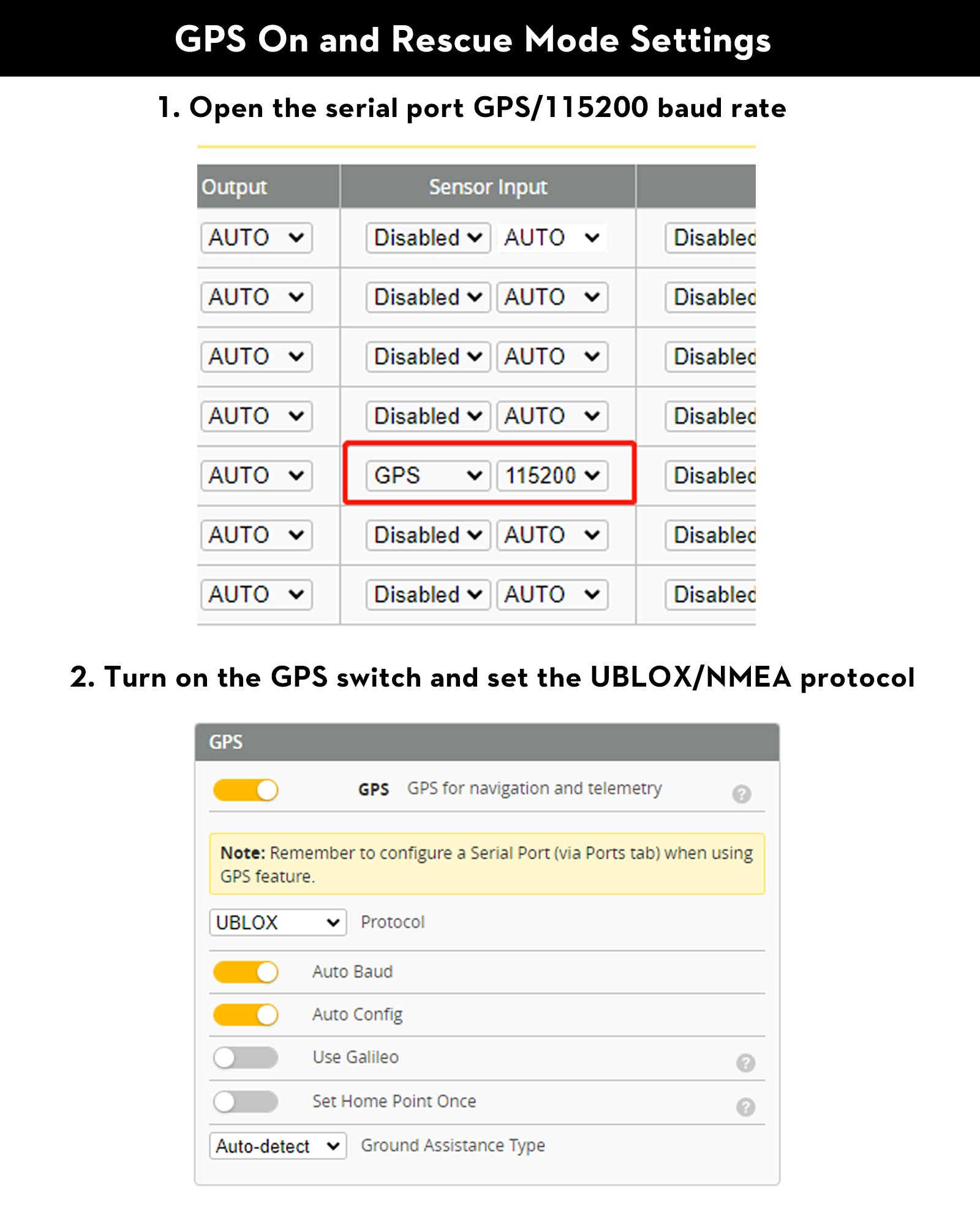

Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols.

FEATURES

  • GPS Module
  • Three Module
  • 4pin Pad
  • Ultra light weight

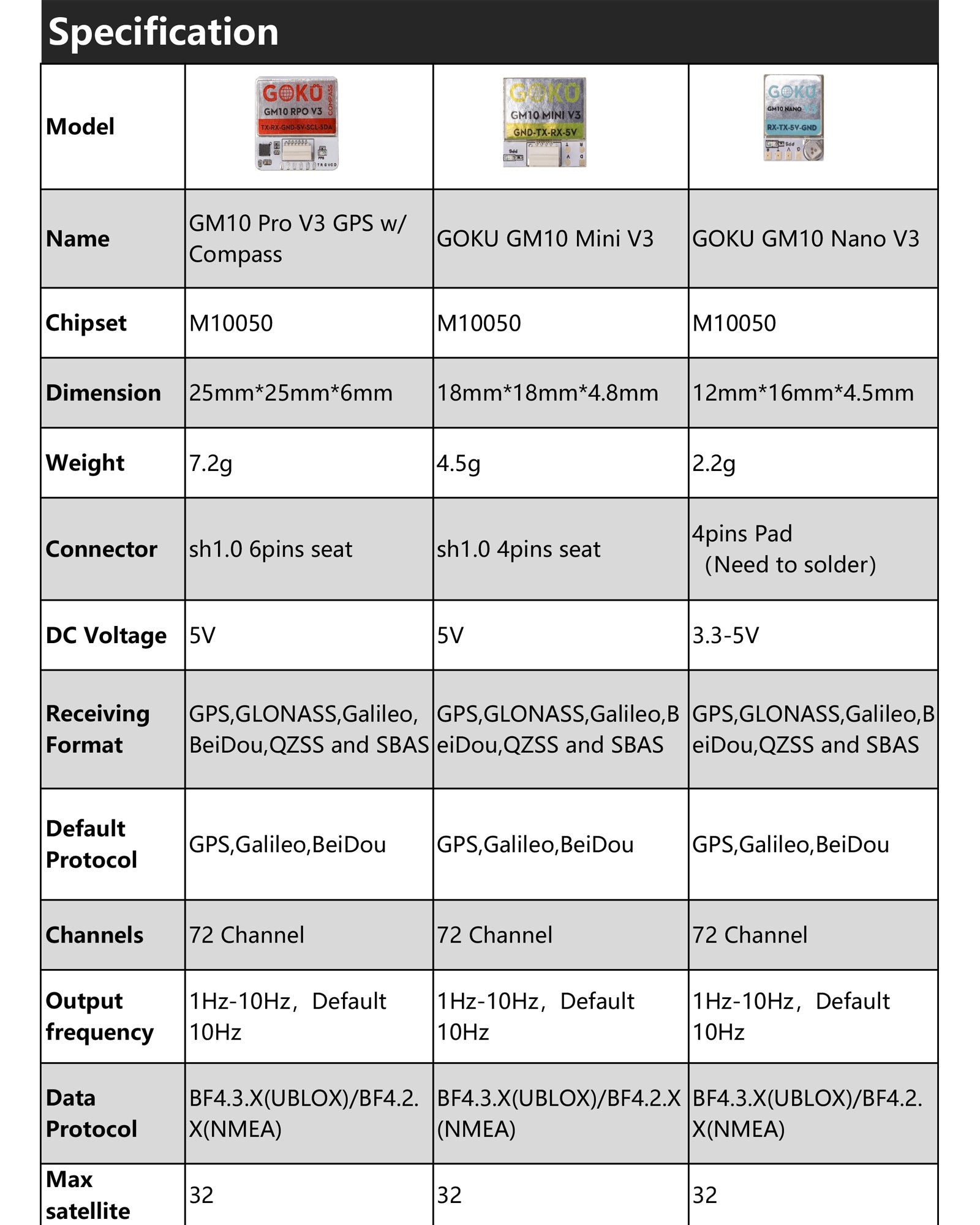

Specifications

  • Chipset : M10050(Tenth Generation Chip)

  • Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

  • Default Protocol : GPS,Galileo,BeiDou

  • Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

  • Channels : 72 Searching Channel

Sensitivity
  • Tracking : -162dBm
  • Reacquisition : -160dBm
Data and Update Rate
  • Support Rate : 4800bps to 921600bps,Default 115200bps
  • Data Level : TTL or RS-232,Default TTL level
  • Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
  • Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
  • Altitude : 50,000m Max
  • Velocity : 500m/s Max
  • Acceleration : Less than 4g
Power consumption
  • VCC : DC Voltage ：3.3-5V
  • Operating temp :　-40 °C ~ +85°C
  • Storage Temp : -40°C ~ +105°C
  • Indicator :
  • PPS LED:yellow .PPS LED not bright when GPS not fixed, flashing when fixed
  • The Module’s Pins: RX TX 3.3-5V GND

PACKAGE CONTENTS

  • 1x Flywoo GOKU GM10 Nano V3 GPS Module
  • 1x 100mm Cable
  • 1x Copper Foil
Width:
4.00 (cm)
Height:
4.00 (cm)
Depth:
0.50 (cm)
