BetaFPV Cetus X - ELRS 2.4

$180.99
SKU:
BT-U2

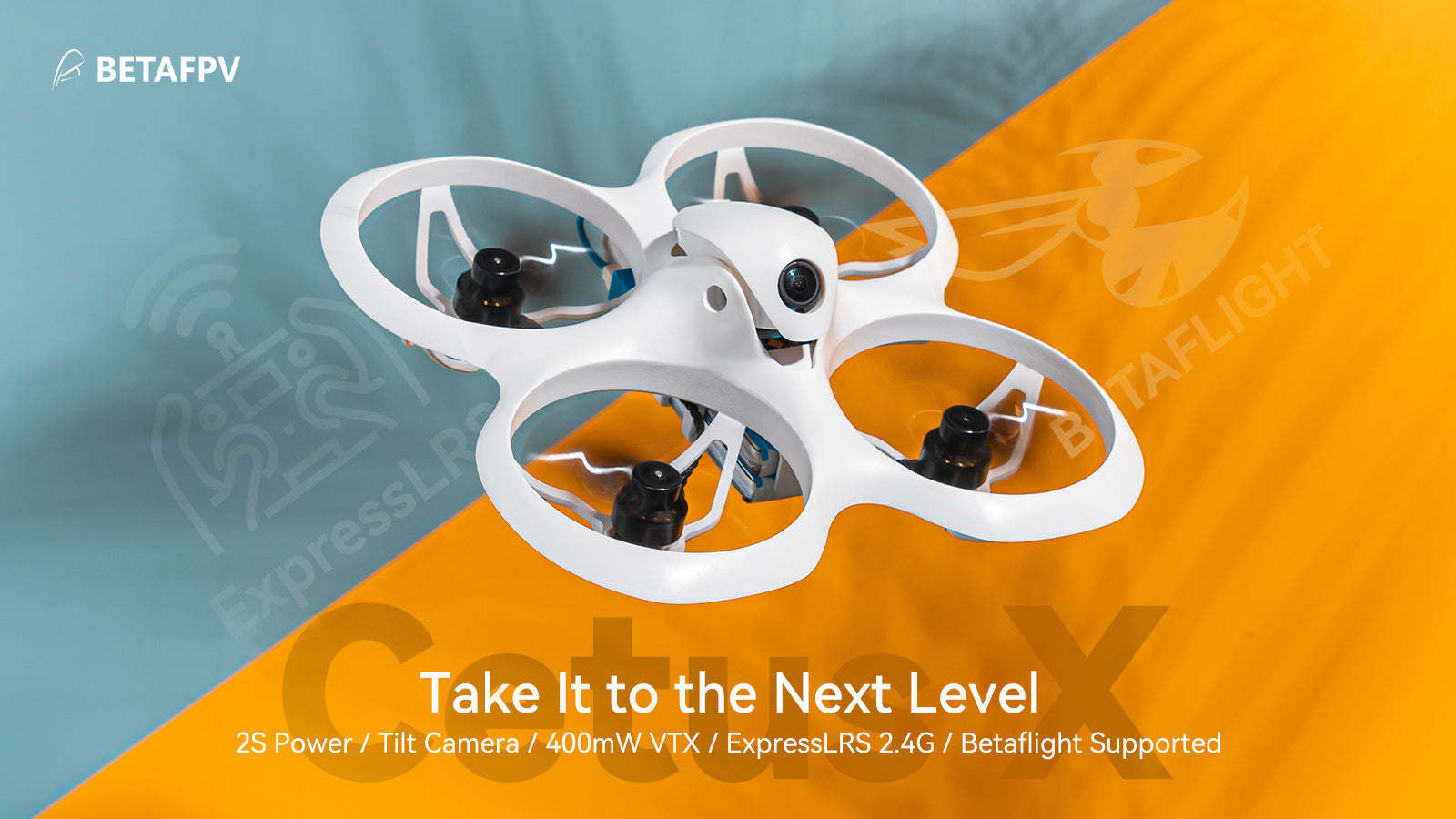

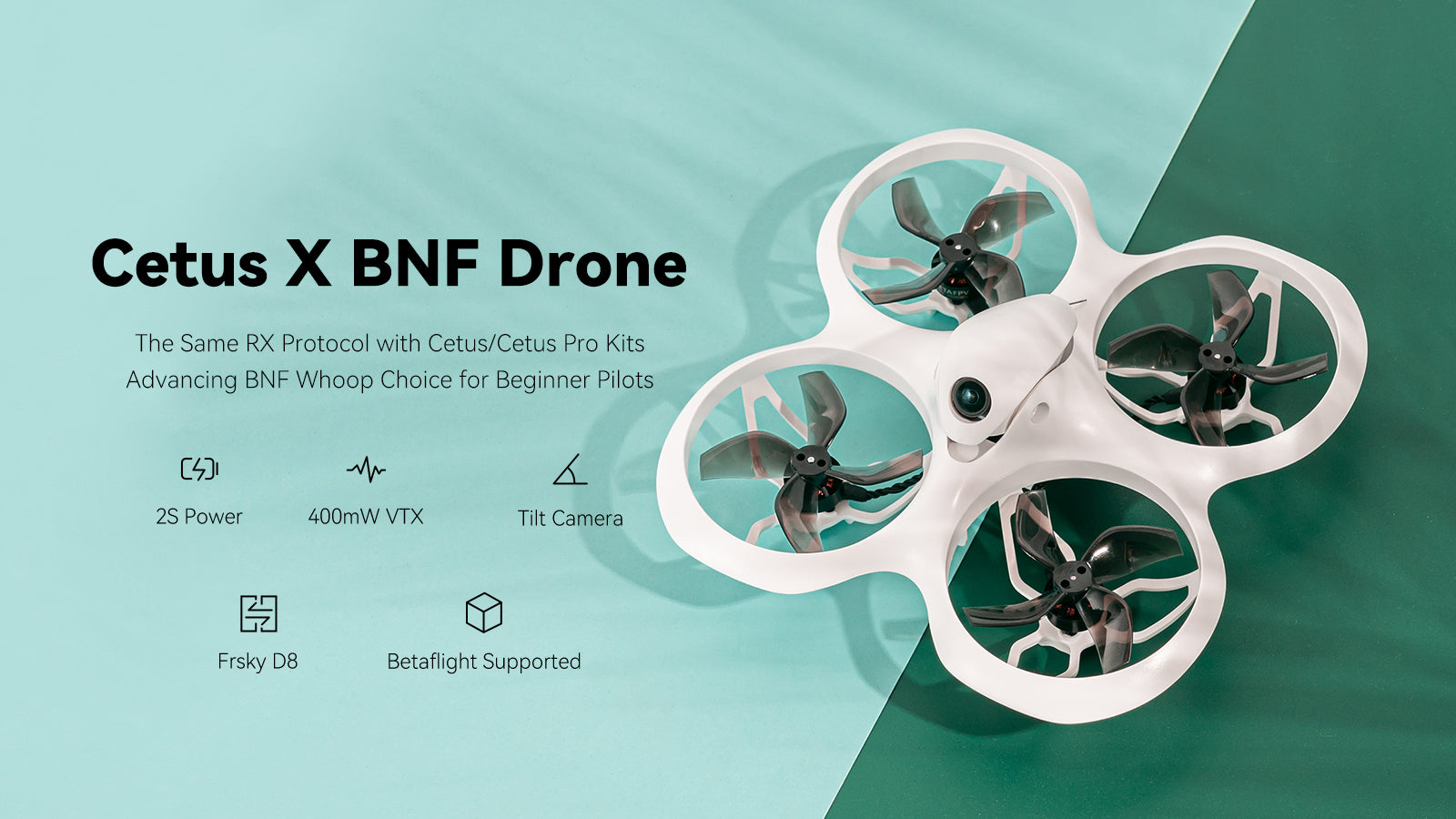

BetaFPV Cetus X Brushless Quadcopter- BNF ELRS 2.4


Cetus X is a primary choice for beginners who want to get advanced flight skills. The 2S power makes it stands out, giving Cetus X stronger propulsion and faster speed to perform diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Two FC versions provide different functions to pilots but all help pilots to the next level.

Features

  • An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.
  • Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoors.
  • The drone with Frsky receiver protocol version is also provided for customers who used to have LiteRadio 2 SE radio transmitter in Cetus Pro or Cetus RTF Kit.
  • Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2*BT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.
  • The Betaflight FC comes with the most popular firmware in the FPV community. Beginners are able to learn and understand more about FPV, which is an essential way to get drone experience.
  • The Cetus FC version offers an auxiliary flight function for pilots with three speed modes. It is easier and more suitable for initial pilots.
  • Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop & impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

Specifications

  • Item: Cetus X Brushless Quadcopter
  • Weight: 55g
  • Wheelbase: 95mm
  • FC:  F4 1S 12A FC(Betaflight FC Version)/Cetus BL V3 Flight Controller (Cetus FC Version)
  • Motors: 1103 11000KV Motor
  • Props: Gemfan 2020 4-Blades Props
  • Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
  • Camera Adjustable Angle: 0°-40°
  • Frame: Cetus X Brushless Whoop Frame
  • Receiver Protocol: ELRS 2.4G (Betaflight FC Version only)/Frsky D8
  • VTX: M04 25-400mW VTX (Betaflight FC Version)/Cetus 25-350mW VTX V2 (Cetus FC Version)
  • Battery: 2*BT2.0 450mAh 1S 30C Battery
  • Flight time: 5 mins

ExpressLRS 2.4G or Frsky D8

Equipped with F4 1-2S 12A flight controller, Cetus X brushless quadcopter supports ELRS 2.4G or Frsky D8 RX protocol. Both RX versions support the Betaflight configurator and have great performance in maneuverability, power, and flight time. Pilots who had Cetus Pro or Cetus RTF Kit can continue to use LiteRadio 2 SE radio transmitter to fly Cetus X Frsky D8 version.

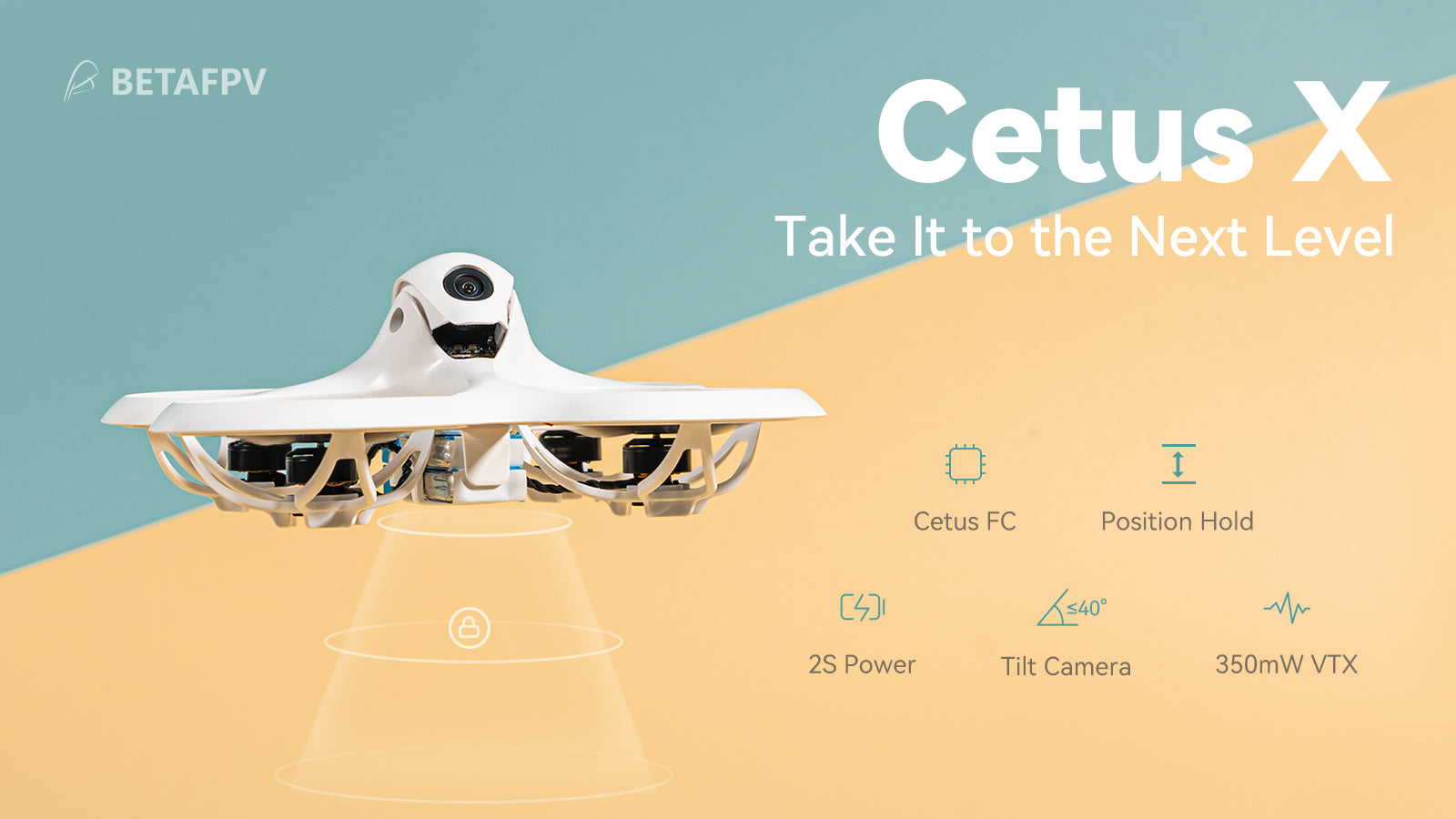

Cetus FC or Betaflight FC

Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to learn and understand the drone configuration. Both FC versions perform great in power and speed and have higher-grade flight modes for pilots to get advanced.

  Cetus FC Version Betaflight FC Version
Flight Controller Cetus BL V3 Flight Controller F4 1S 12A Flight Controller
Receiver Protocol Frsky D8 ExpressLRS 2.4G/Frsky D8
Flight Mode N/S/M/Turtle Mode Angle/Horizon/Air/Turtle Mode
VTX 25-350mW 25-400mW
Position Hold Support Not Support
Configuration Software BETAFPV Configurator Betaflight Configurator

Note: Pilots who have LiteRadio 2 SE in Cetus or Cetus Pro FPV Kit can bind and fly the Cetus X Cetus FC version.

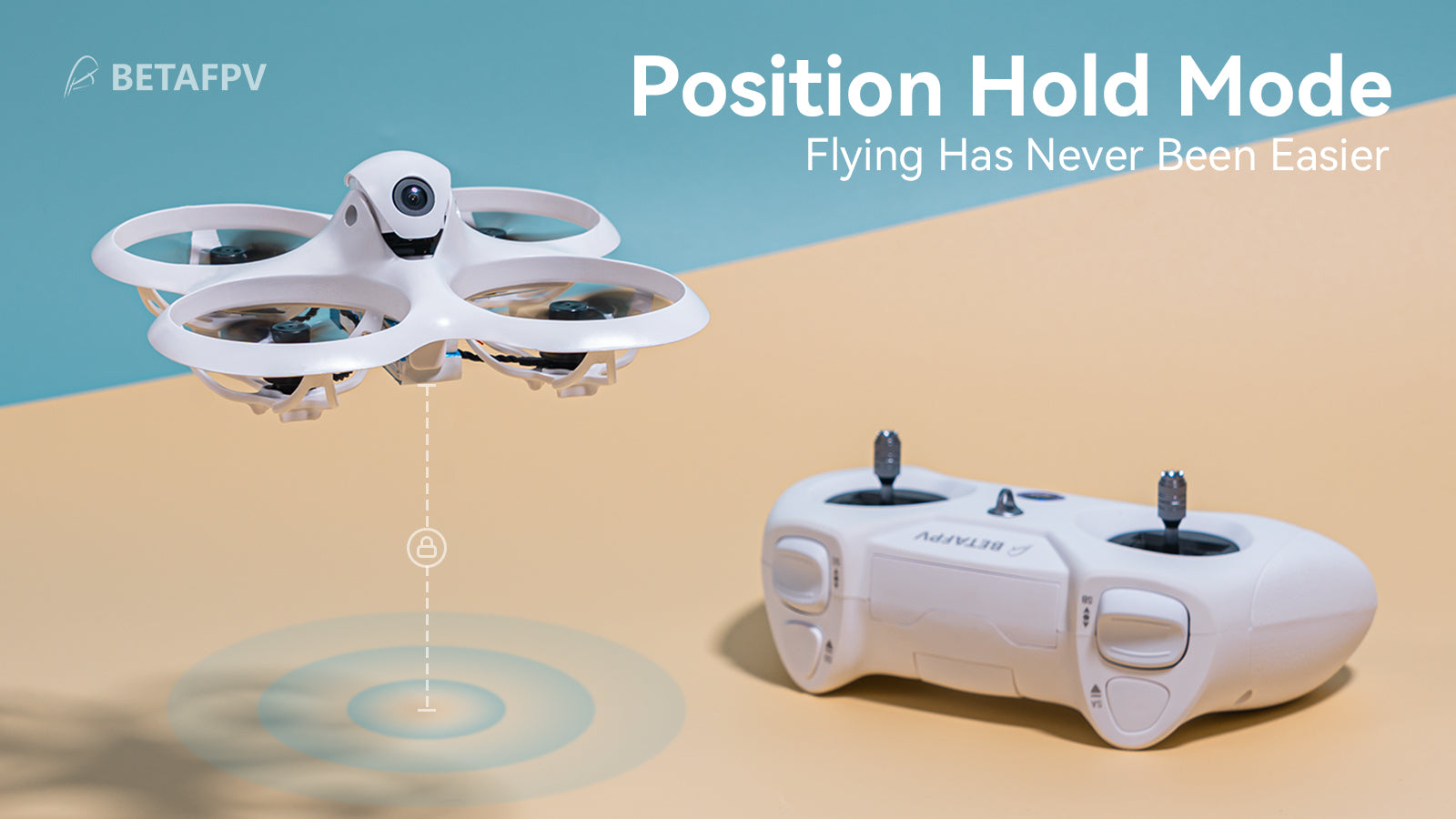

Auxiliary Flight Function

Built-in highly precise barometer to detect the height, the version with Cetus FC benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function also ensures an emergency landing of the drone whenever loses control or is on low battery. Meanwhile, its stable flight allows you to catch the best footage with the FPV Goggles. It really does an immense amount of fun and ease of flight for all pilots.

Powered by 2S, Cetus X has loads of punch and speed, making it smoother and more suitable for outdoor practice, great for the next level. For indoor practice, the Cetus Pro with 1S power, which has the same auxiliary flight function, is easier for initial pilots to control and fly.

Note: The position hold function is only available in N mode.

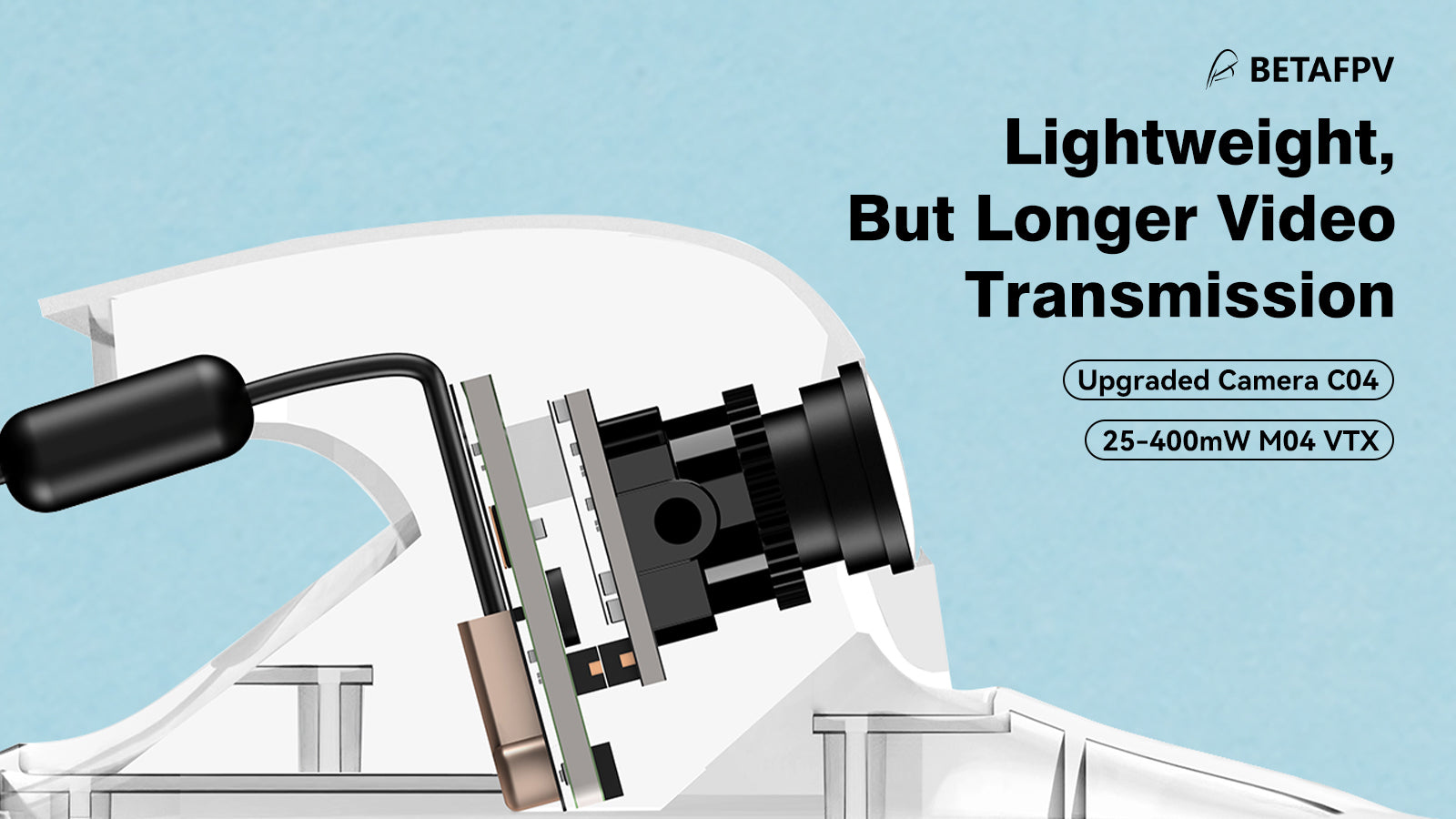

Improved Video Transmission

Cetus X Brushless Quadcopter comes with M04 25-400mW VTX and C04 FPV camera. The VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G/Frsky D8, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared with C02 FPV camera.

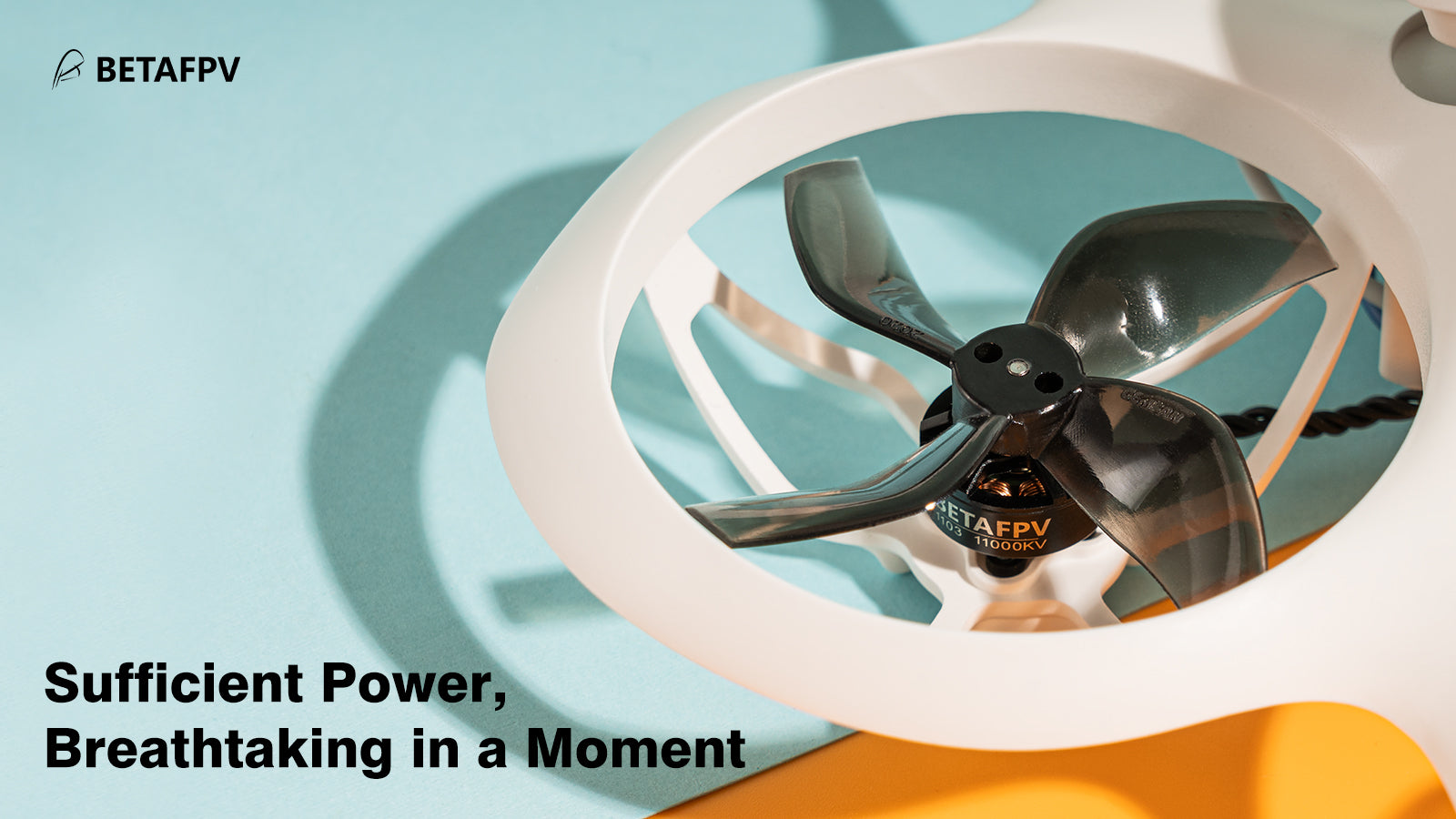

Powerful Propulsion System

Equipped with 1103 11000KV Brushless Motor and Gemfan 2020 4-blade props . 1103 motors are designed for 2S quadcopters with incredible power, smooth and quiet operation, and light enough. Besides, Cetus X quadcopter adopts 2020 4-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.

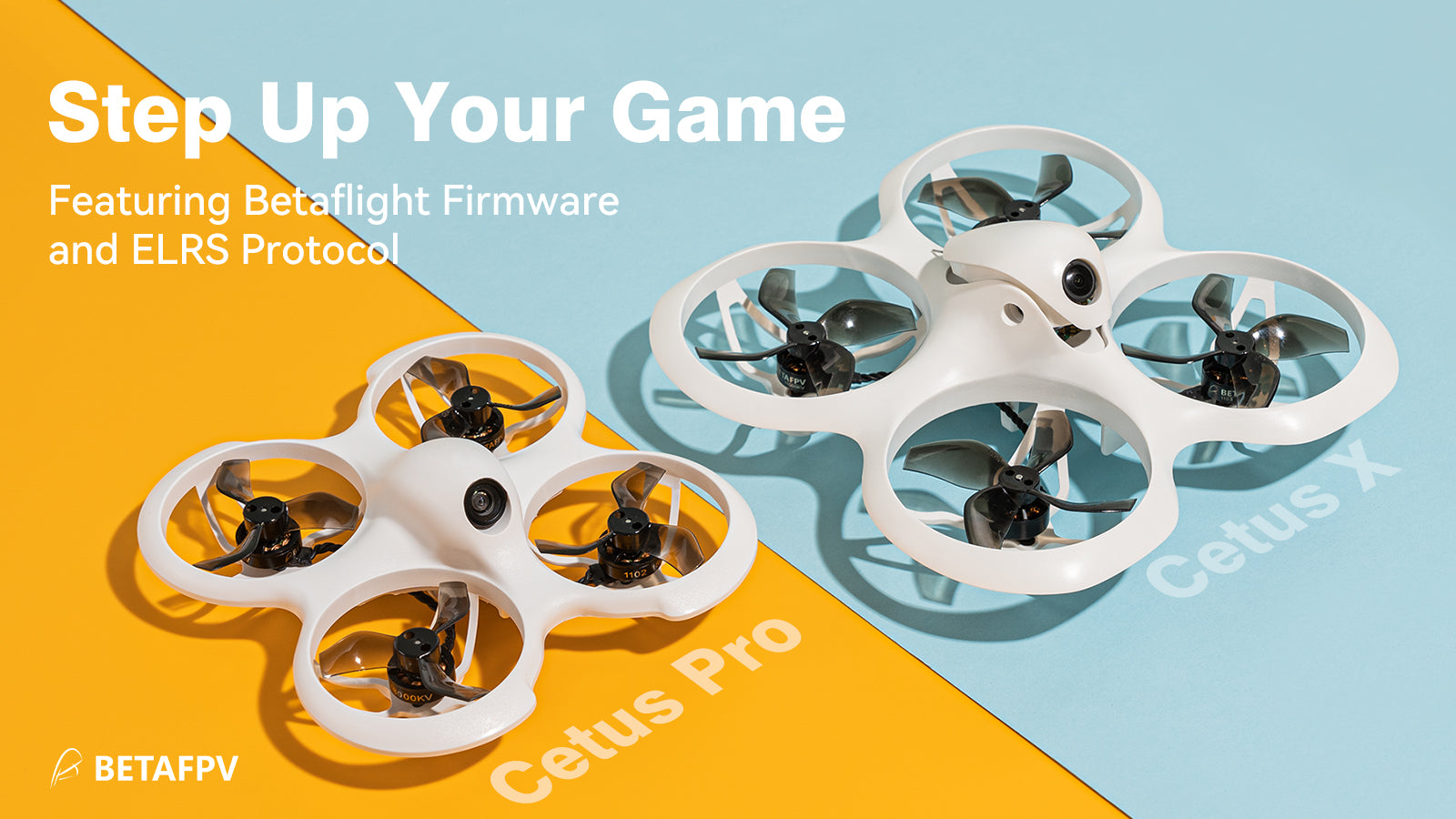

Primary Choice for Next Level

Cetus X Brushless Quadcopter Betaflight FC version supports configuring on Betaflight configurator. It is a primary choice for beginners who start to learn drone configuring, which helps beginners to get advanced level. With the Betaflight configurator, you can calibrate accelerometer, custom OSD content, adjust the video transmitter and etc.

Note: Please DO NOT configure ESC or Motor settings on Betaflight configurator.

Betaflight Flight Controller

Cetus X brushless quadcopter is built-in F4 1S 12A FC board, supporting ELRS 2.4G, or default Frsky D8 protocol. The ELRS 2.4G version comes with betaflight 4.3.1 FC firmware so it supports ELRS V2.0. The Frsky version can be switched to the Futaba SFHSS protocol through the Betaflight configurator. The ESC on the new board powered by BB51 hardware comes with Bluejay 48k ESC firmware, allowing F4 1S 12A FC SPI Frsky
 to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1-2S 12A FC.

  Cetus X (ELRS 2.4G) Cetus X (Frsky D8)
FC Inside F4 1S 12A FC SPI ELRS 2.4G F4 1S 12A FC SPI Frsky
Gyro BMI270 BMI270
FC Firmware BETAFPVF411SX1280 BETAFPVF411RX
ESC Firmware C_X_30_48_ for Bluejay BB51 hardware C_X_30_48_ for Bluejay BB51 hardware

For Cetus X ELRS 2.4G version, the Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For Frsky D8 version, we recommend using BETAFPVF411RX 4.2.11 firmware and CLI dump file offered by BETAFPV.

The default flight controller firmware enables bidirectional D-shot and is compatible with Bluejay ESC firmware. If you update the 4.3.0 and up firmware for ELRS 2.4G from the Betaflight official site, please flash the CLI dump file for Cetus X.

Download the firmware and CLI dump file for Cetus X ELRS 2.4G or Frsky.

The Bluejay firmware could support the BB51 hardware now. Both ELRS and Frsky boards are powered by BB51 hardware. If you want to setup the ESC specification, please use the BLHeliSuite16714902A_Beta or ESC-Configurator.

Note: Only ELRS 2.4G version supports motor direction set through Betaflight Configurator and SPI Frsky version does not support it. BLHeli Configurator and Bluejay Configurator are invalid for the BB51 ESC (both versions).

FAQ

  • ExpressLRS 2.4G is the most popular radio link now. Know more about ExpressLRS here.

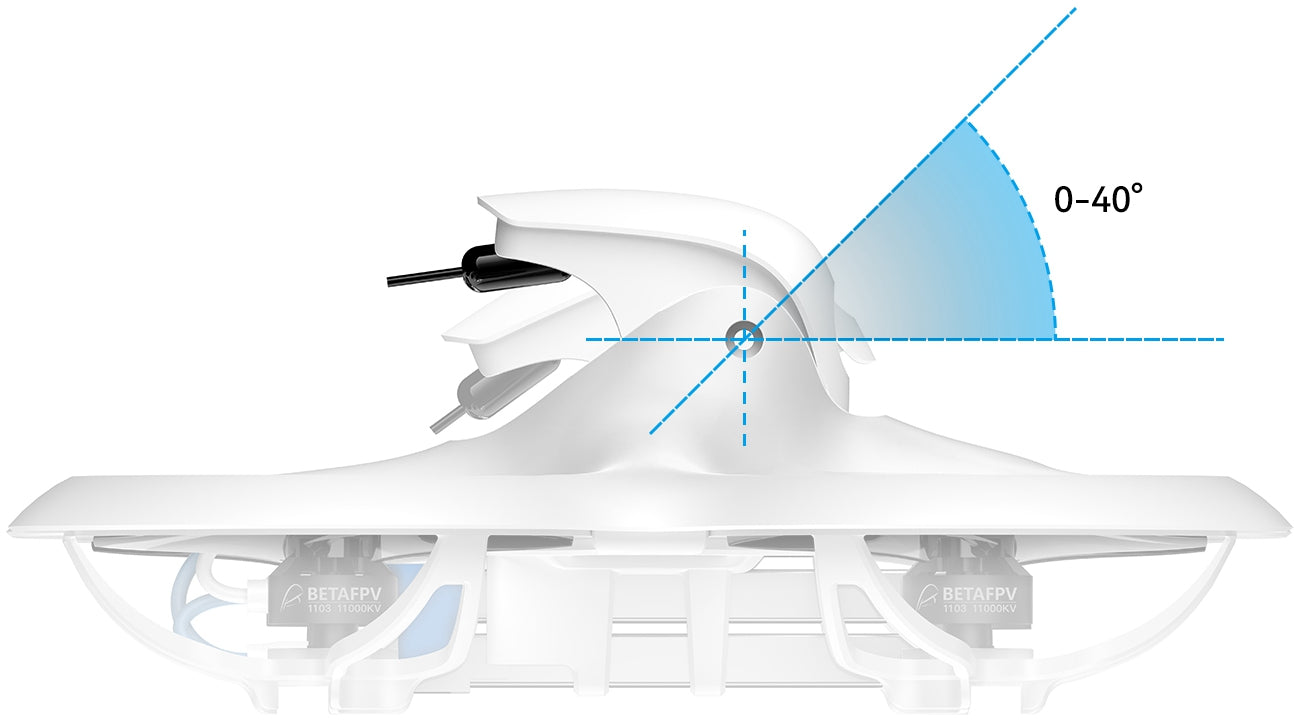

  • The frame and props are visible when the camera's angle is 0°. Adjust it to about 25°, then the frame and props are invisible when flying.
  • Click to download the CLI dump file for Cetus X (Betaflight FC version).
  • Click to download the CLI dump file for Cetus X (Cetus FC version).
  • Click to download the Manual for Cetus X (Betaflight FC version).
  • Click to download the Manual for Cetus X (Cetus FC version).
  • Cetus X Brushless Quadcopter should work with two 1S batteries. Do not recommend using different brand batteries. Highly recommend the original batteries BT2.0 450mAh 1S 30C Battery.



PACKAGE CONTENTS

  • 1 x Cetus X Brushless Quadcopter
  • 1 x BT2.0 Battery Charger and Voltage Tester
  • 2 x BT2.0 450mAh 1S 30C Battery
  • 1 x Phillips Screwdriver
  • 1 x Prop Removal Tool
  • 1 x Type-C Adapter
  • 4 x Gemfan 2020 4-Blades Props



Width:
15.00 (cm)
Height:
10.00 (cm)
Depth:
5.00 (cm)
Receiver Type:
ExpressLRS
