Axisflying Argus Mini F7 55A 20X20 Stack

Axisflying

MSRP: $185.99
$178.99
(You save $7.00 )
Currency: CAD
SKU:
AX-H2
Adding to cart… The item has been added

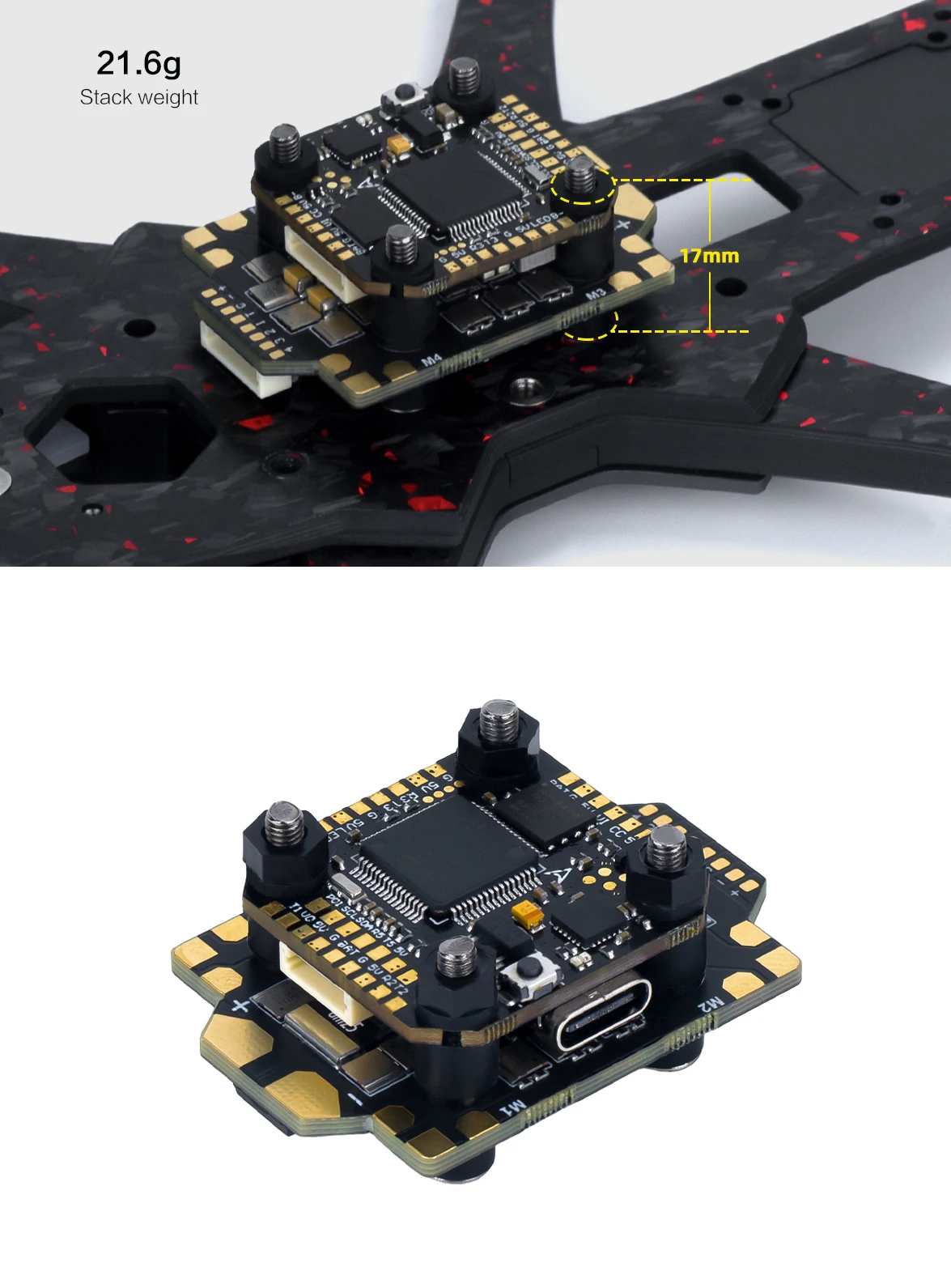

Axisflying Argus Mini F7 55A 20X20 Stack

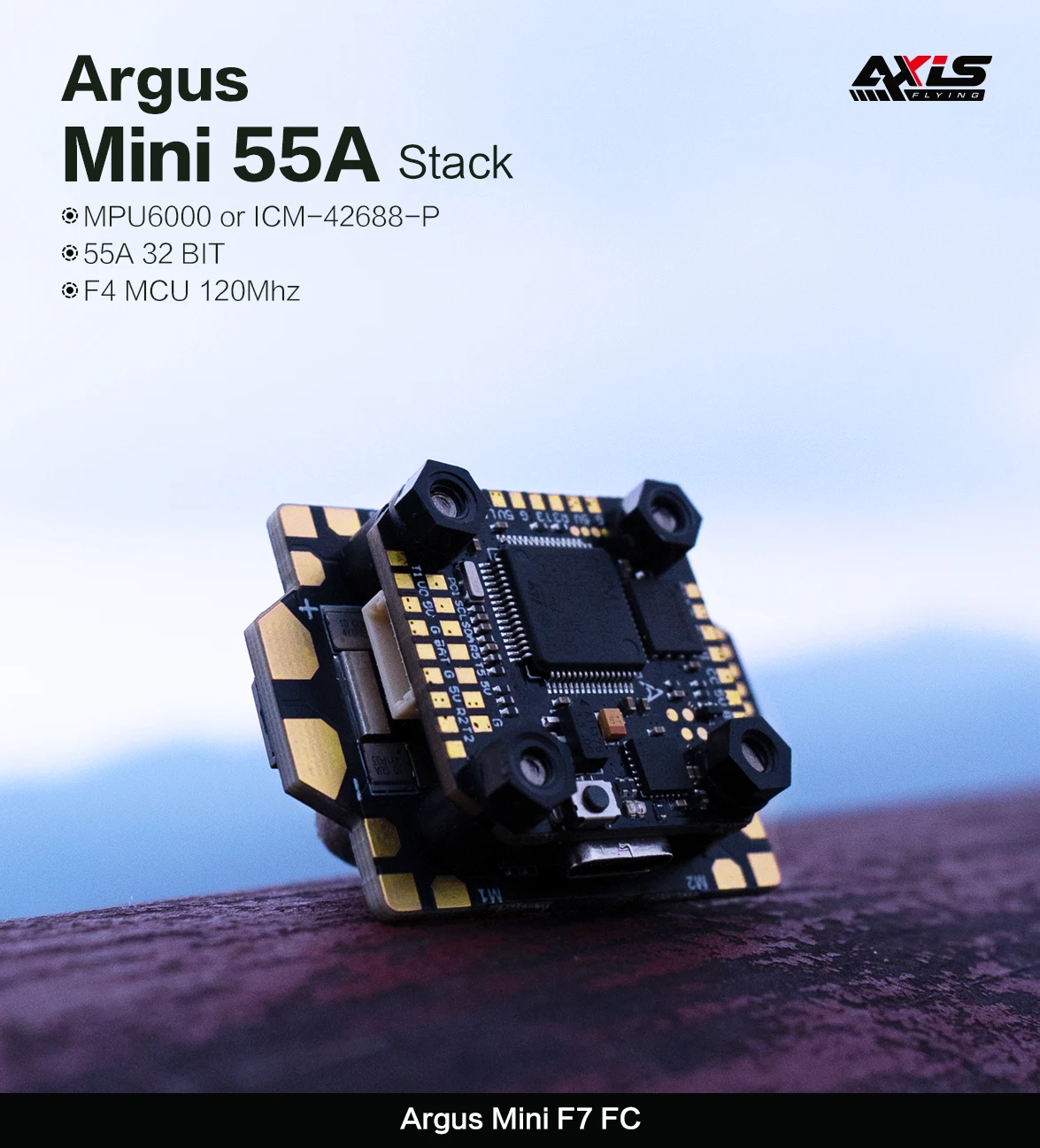

Axisflying Argus Mini 55A Stack – F7 Pro Flight Controller & 55A ESC

The Axisflying Argus Mini 55A Stack is a high-performance flight controller and ESC combo designed for FPV freestyle drones. Built with premium components, it delivers exceptional stability, low latency, and precise control. Featuring an F7 Pro flight controller and BLHeli32 55A ESC, this stack is ideal for pilots seeking reliability and responsiveness in extreme flight conditions.

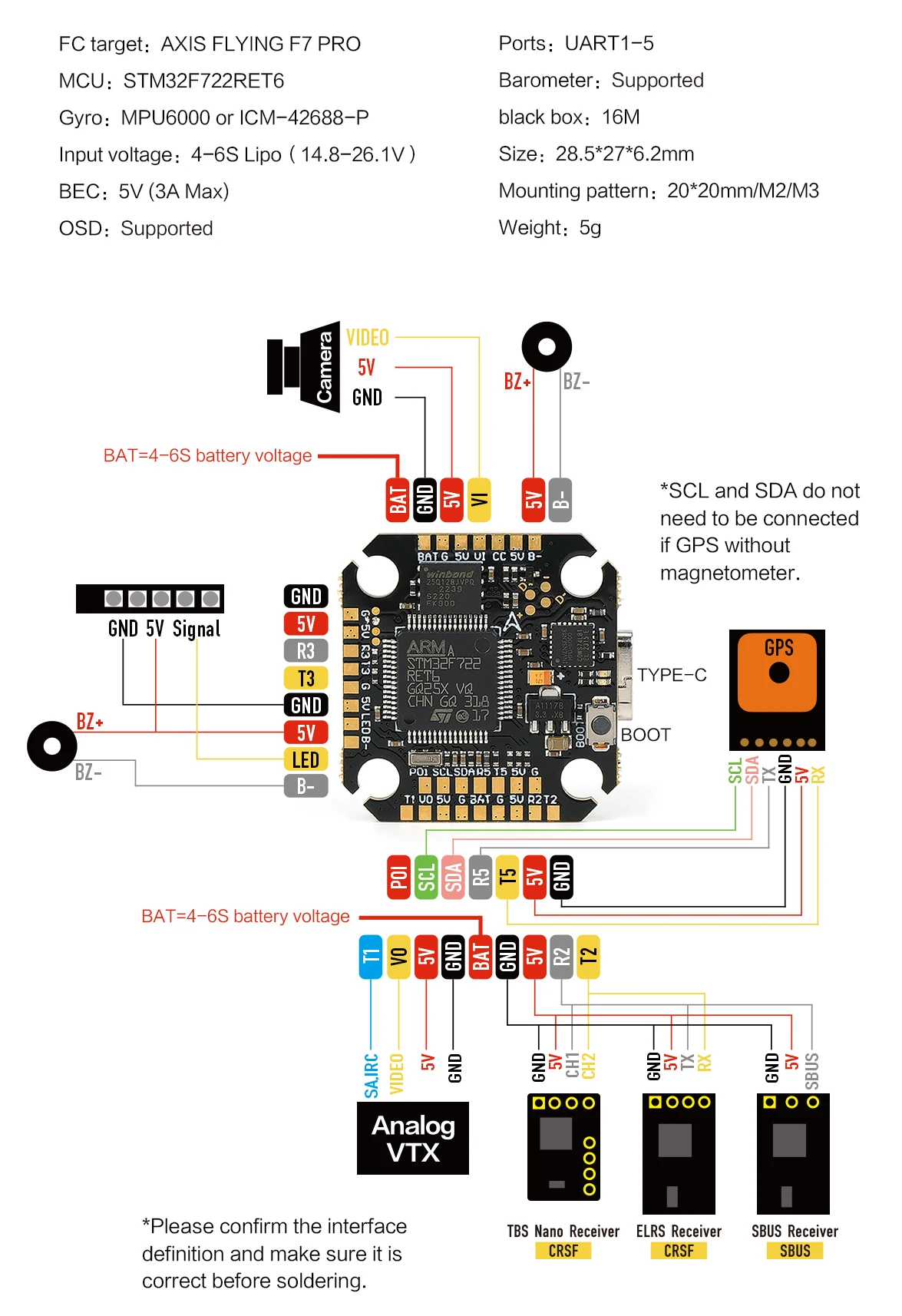

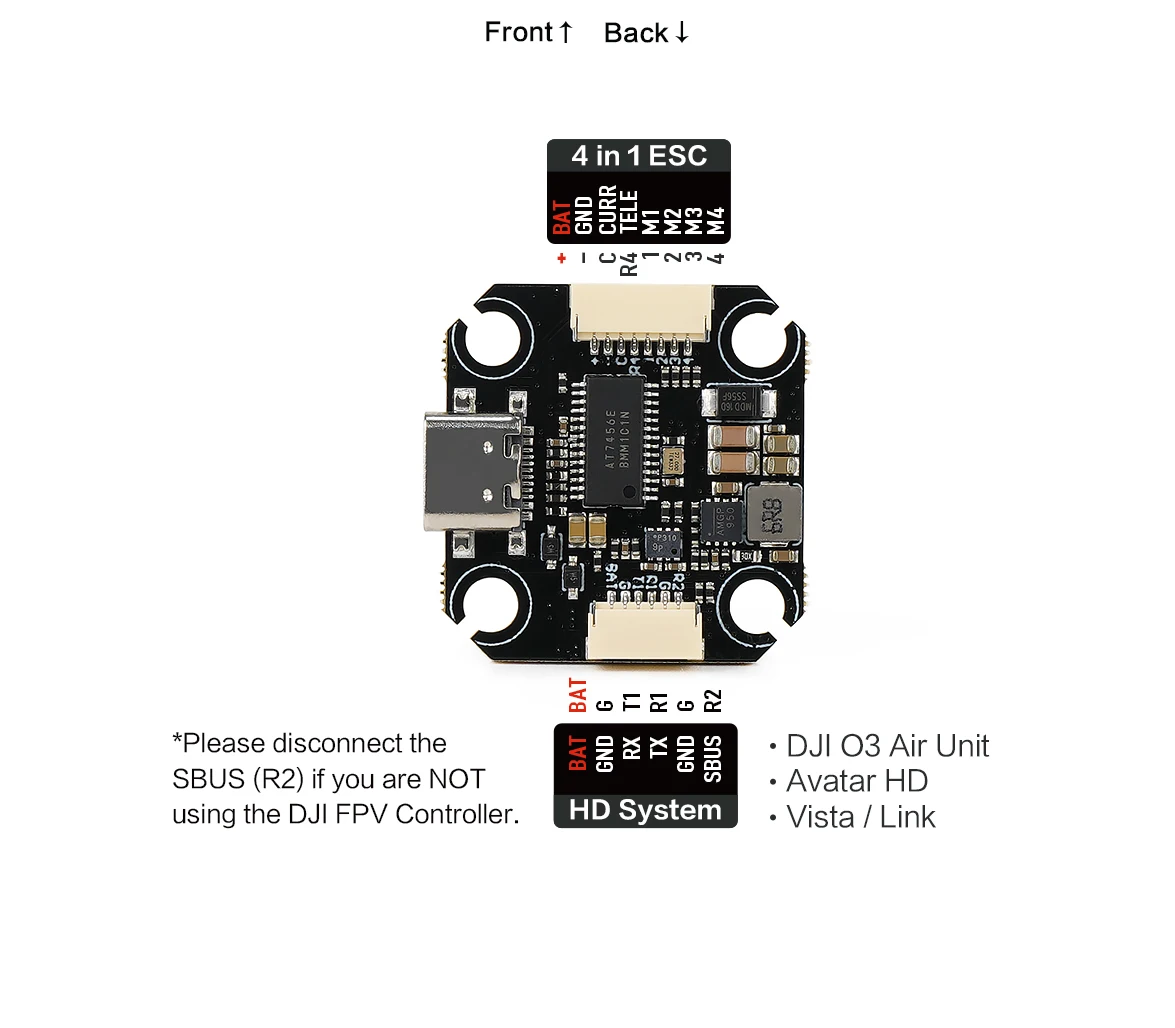

Flight Controller: Argus Mini F7 Pro

Specifications

  • Target: AXIS FLYING F7 PRO
  • MCU: STM32F722RET6
  • Barometer: Supported
  • Black Box: 16M
  • Input Voltage: 4-6S LiPo (14.8-26.1V)
  • BEC: 5V (3A Max)
  • OSD: Supported
  • Ports: UART1-5
  • Mounting Pattern: 20x20mm (M2/M3)
  • Dimensions: 28.5 x 27 x 6.2mm
  • Weight: 5g

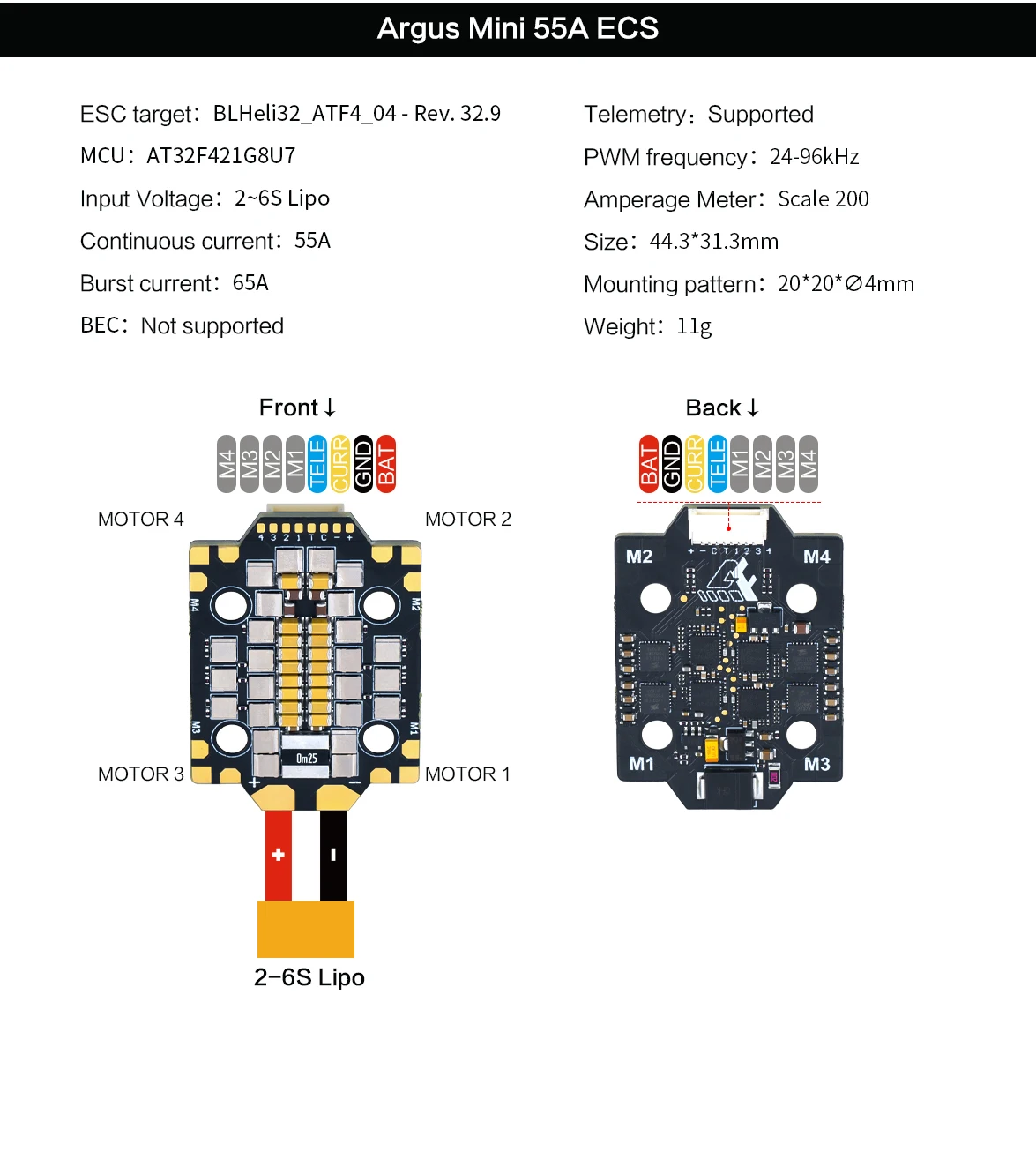

Electronic Speed Controller (ESC): Argus Mini 55A

Specifications

  • Target: BLHeli32_ATF4_04 (Rev. 32.9)
  • MCU: AT32F421G8U7
  • Input Voltage: 2-6S LiPo
  • Continuous Current: 55A
  • Burst Current: 65A
  • Telemetry: Supported
  • PWM Frequency: 24-96kHz
  • Amperage Meter: Scale 200
  • BEC: Not Supported
  • Mounting Pattern: 20x20mm
  • Dimensions: 44.3 x 31.3mm
  • Weight: 11g



Package Contents

  • 1 x FC&ESC Connection Cable
  • 1 x Buzzer Connection Cable
  • 1 x GPS Connection Cable
  • 1 x DJI O3 Connection Cable
  • 1 x Receiver Connection Cable
  • 5 x M3 Shock-Absorbing Ball
  • 5 x M2 Shock-Absorbing Ball
  • 1 x Camera Connection Cable



Mounting:
20x20
CPU:
F7
Amps:
55
