Aocoda F480 V3.2 Stack - F405+80A AM32 8S

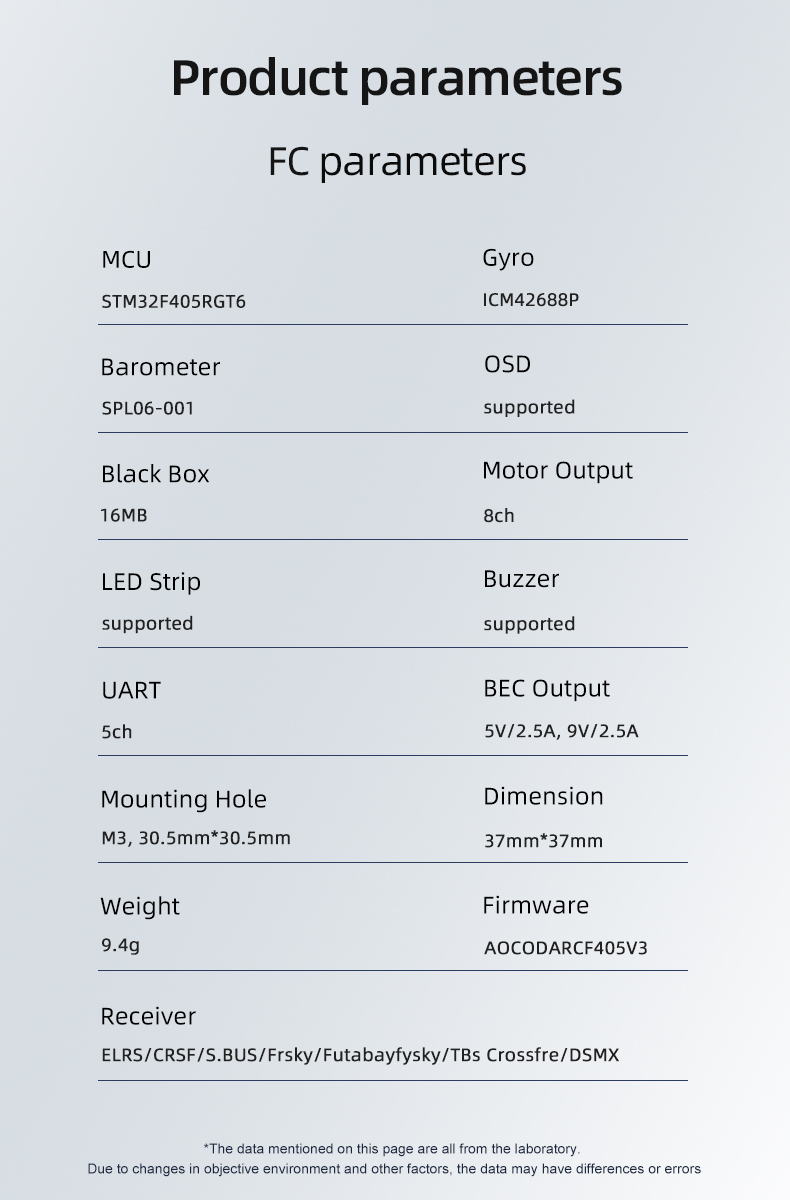

SPECIFICATIONS

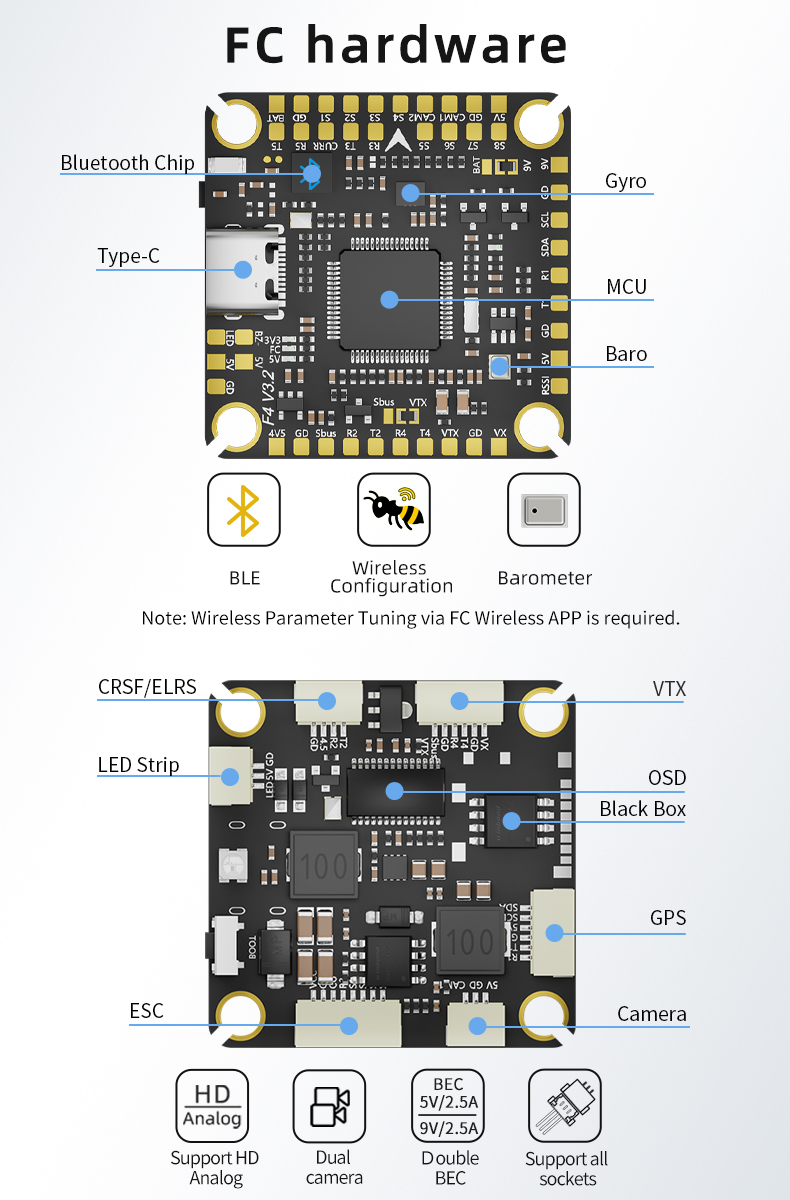

• Flight Controller
  • MCU F405
  • Gyro: ICM42688P
  • Barometer: SPL06-001
  • OSD: Yes
  • Blackbox: 16MB
  • Motor Outputs: 8
  • UARTs: 5
  • BEC:
    • 5V@2.5A
    • 9V@2.5A

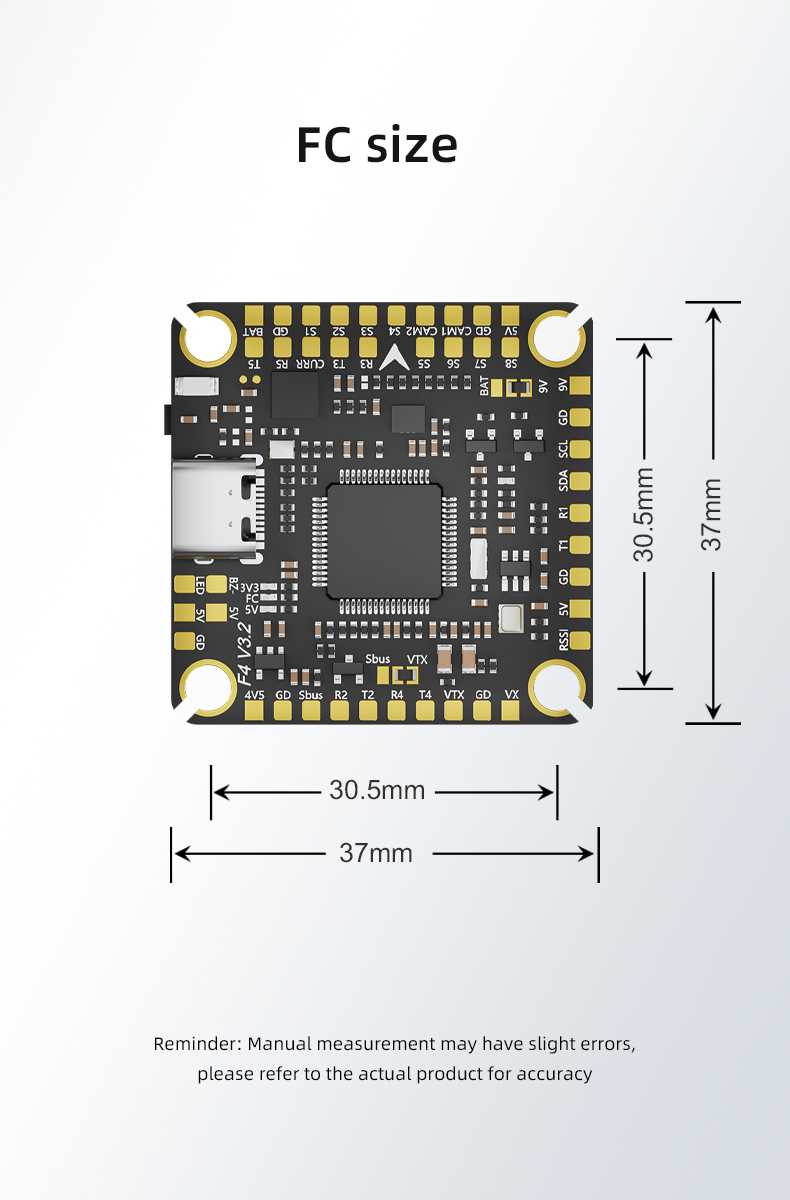

  • Mounting: M3 / 30.5x30.5mm
  • Dimensions: 37*37mm
  • Weight: 9.4g
  • Firmware: AOCODARCF405V3

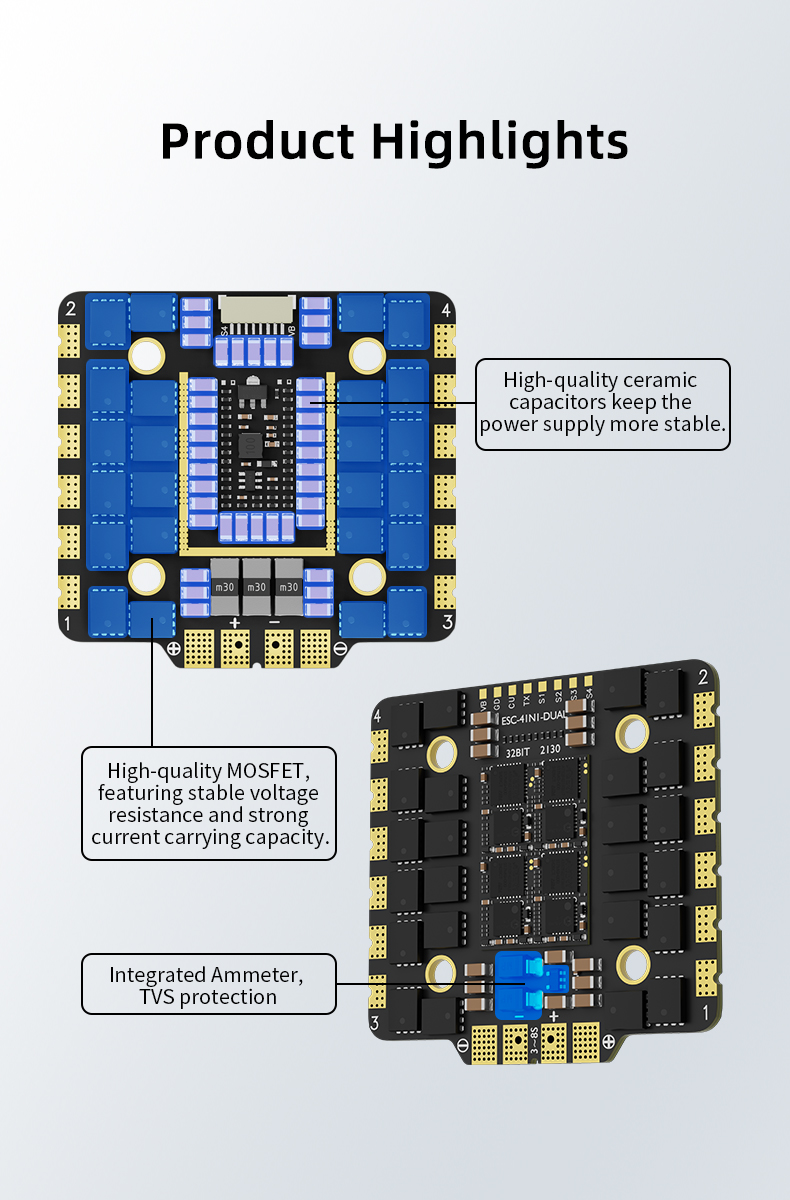

• ESC
  • Firmware: AM32_AORC_K_A_F421_2.16.hex
  • Continuous Current: 80A
  • Burst Current: 100A
  • Telemetry: Yes
  • Input Voltage 3-8S
  • Dimensions: 55*52mm
  • Mounting: M3 / 30.5x30.5mm
  • Weight: 33g
  • Input Signal: DShot150-600/Multishot/Oneshot/Proshot/PWM

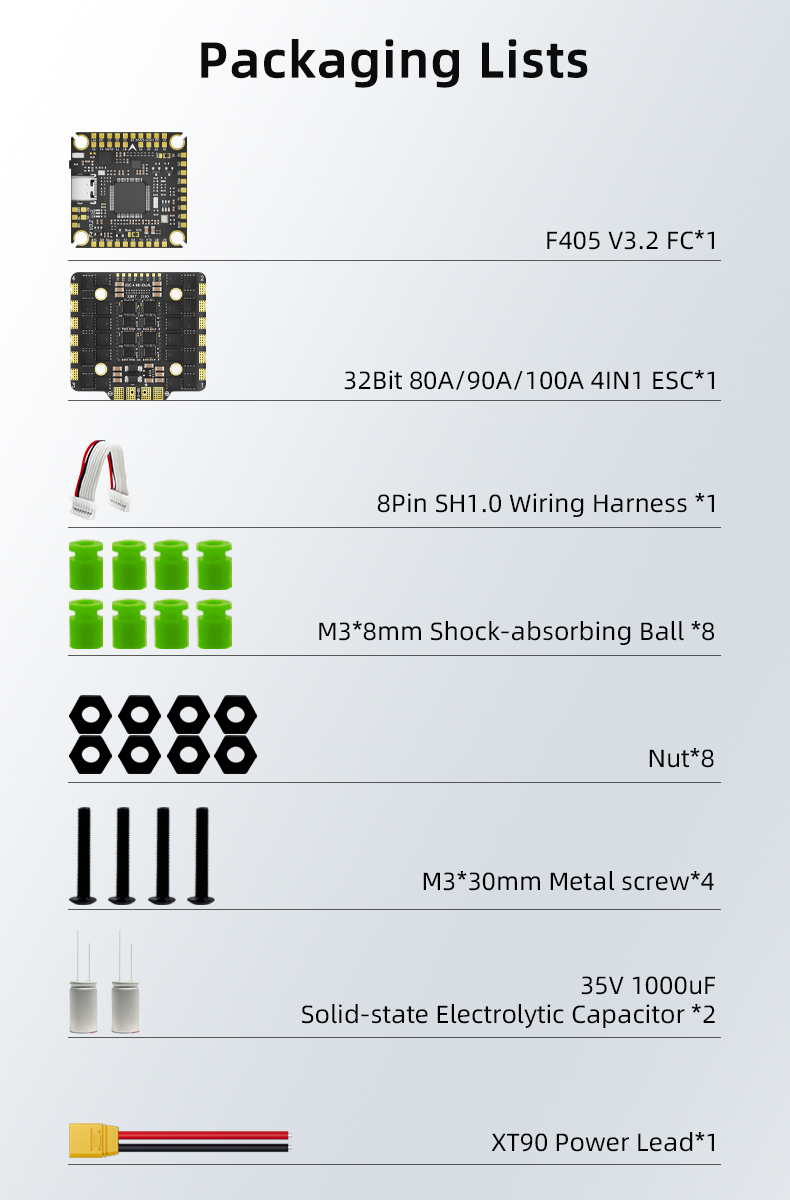

Package Contents

• FC & ESC Combo
• Wiring Harness
• Gummies & Hardware
• XT90 Lead with Capacitors
