SkyStars F722 HD Pro2 & KM50 Pro Combo Stack

SKU:
SK-H1
$125.99

SkyStars F722 HD Pro2 & KM50 Pro Combo Stack

The SkyStars Fly Tower Stack features an F722 HD Pro2 Flight Controller and a Kramam KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC with a 30x30  mounting pattern.

Features

  • High efficiency heatsink (low specific heat capacity) for better cooling
  • PCB uses 3 oz copper which reduces heat and increases system efficiency
  • Rubber vibration isolation to prevent cracking in the event of a fall
  • Supports telemetry functions (voltage, RPMS and current)
  • Flashed with the latest Blheli_32 firmware
  • Panasonic ZLH Ultra Low ESR Capacitor
  • Supports custom ESC startup sounds
  • Large motor pads for easy soldering
  • Using aluminum alloy for heatsink
  • F722 HD Pro2 Flight Controller
  • Built-in overcurrent protection
  • KM50 Pro 50A ESC

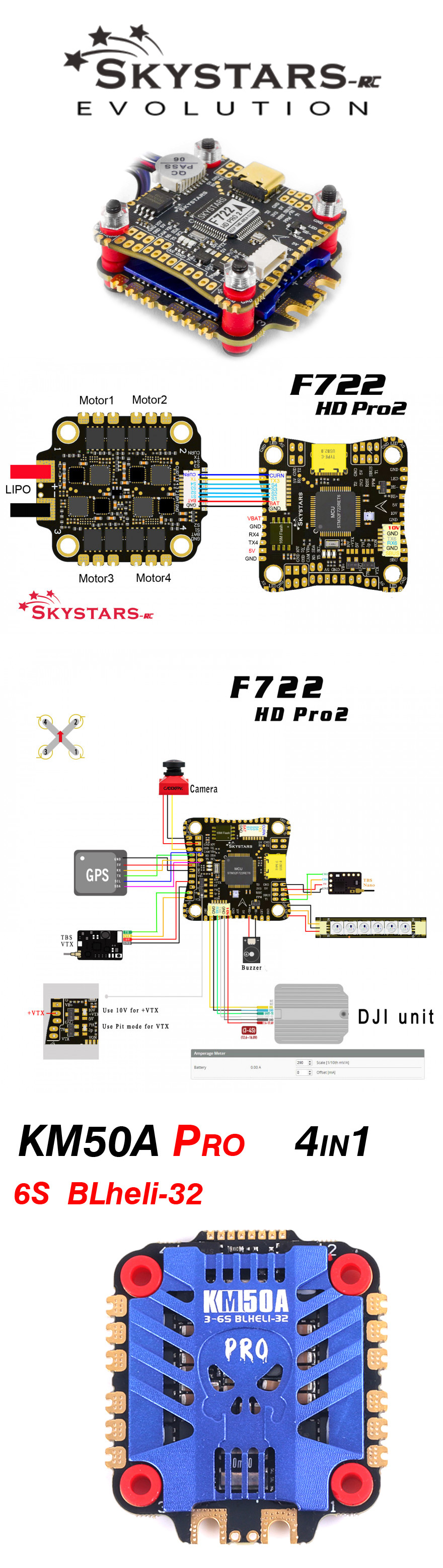

skystars-fly-tower-stack-f722-hd-pro2-fc-km50-pro-50a-3-6s-4-in-1-blheli-32-esc-30x30-info.jpg

Specifications

  • KM50 PRO 50A ESC
    • Mounting Hole Pattern : 30.5mm / M3
    • Input voltage : 3-6S LiPo / LiHV
    • ESC Protocol : Dshot 600/1200
    • Product size : 41x46x7.6mm
    • Overcurrent Protection : Yes
    • Peak Current : 60A (10S)
    • Continous Current : 50A
    • Firmware : Blheli_32
    • Weight : 17g
    • BEC : NO
  • F722 HD PRO2 FC
    • Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX. Built-in inverter, support 3.3v spectrum satellite receiver, support PPM receiver. The default receiver input is UART 1, the F7 has a built in inverter that can be used in any free UART.
    • LED: 4 independent LED pads, support WS2812 programming
    • Mounting Holes: Standard 30.5mm square to center of holes
    • Item name: F722HD Pro 2 Betaflight Flight Controller
    • OSD: Betaflight OSD & DJI HD OSD (UART6)
    • Input Voltage: 3-6S LiPo(11.1V~22.2V)
    • 6 Hardware UARTS (UART123456)
    • MCU: STM32F722RGT6 216MHz
    • Firmware: SKYSTARS F7HD
    • Dimensions: 38.5x40x6.2mm
    • USB connection: USB-C
    • IMU: MPU6000 (SPI)
    • BEC 5V 3A & 10V 3A
    • Buzzer Pad: YES
    • Black box: 16MB
    • CURR pad: YES
    • RSSI Pad: YES
    • Weight: 6.8g

Package contents

  • 1x SkyStars Fly Tower Stack - F722 HD Pro2 FC + KM50 Pro 50A 3-6S 4-in-1 BLHeli_32 ESC - 30x30
  • 1x Connecting Cable
  • 1x XT60 Connector
  • 1x Capacitor
Width:
4.00 (cm)
Height:
4.00 (cm)
Depth:
0.50 (cm)
Mounting:
30.5x30.5
CPU:
F7
Amps:
50
