RadioMaster CNC AG01 Mini Hall Gimbal Set - Zorro & TX12

$138.99
SKU:
RM-O2

Out of Stock

Out of Stock

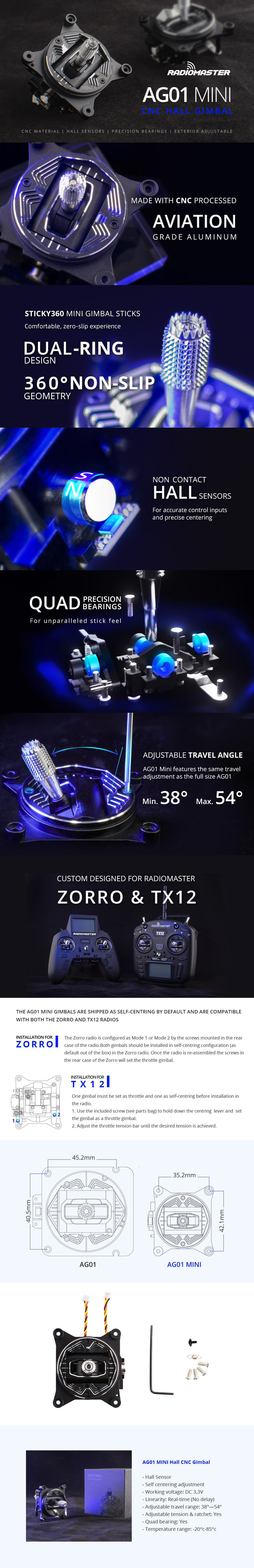

RadioMaster CNC AG01 Mini Hall Gimbal Set - Zorro & TX12

The AG01 MINI is CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel. Featuring front-accessible tension and travel adjustment for easy fine-tuning.

A fantastic upgrade for users of the Radiomaster Zorro and TX12.  Like the full-sized AG01, these are some of the smoothest and most precise gimbals you will ever have the chance to use. They won't make you fly like a pro, but you will feel like a pro flying with these.

Features

  • Made with CNC processed aviation-grade aluminum.
  • Sticky360 Mini Gimbal Sticks as standard.
  • Non-contact hall sensors for accurate control inputs and precise centering.
  • Quad precision bearings for unparalleled stick feel.
  • Adjustable vertical travel angle (Min. 38°, Max. 54°).
  • Custom designed for RadioMaster Zorro & TX12.
  • Set includes one throttle gimbal and one self centering gimbal

Specifications

  • Name: AG01 Mini CNC Hall Gimbal
  • Sensor type: Hall Sensor
  • Working voltage: DC 3.3V
  • Linearity: Real-time (No delay)
  • Adjustable vertical travel range: 38°—54°
  • Self-centering adjustment: Yes
  • Easy mode adjustment
  • Adjustable tension & ratchet: Yes
  • Quad bearing: Yes
  • Temperature range: -20°C-85°C
  • Size: 49*42*48mm
  • Weight: 42g(±0.3g)


Package contents

  • 2 x Radiomaster AG01 Mini CNC Hall Gimbals (1 Throttle, 1 centering)
  • 2 x Hex Tool
  • 8 x Installation Screws
  • 2 x Spare normal-tension Springs
  • 2 x Throttle tension Screws
Width:
15.00 (cm)
Height:
10.00 (cm)
Depth:
5.00 (cm)
