Diatone Mamba Easy F722 X8 MK1 F55_128K Combo Stack

SKU:
DT-F2
$123.99

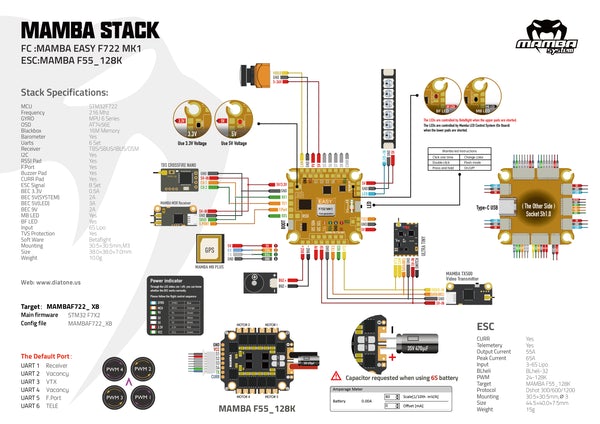

Diatone Mamba Easy F722 X8 MK1 F55_128K Combo Stack

Note: Since STM32 F722 Heats Up, Please Leave At Least 5mm Interspace At Both Sides Of The Fc With Nothing Covered To Make Sure A Good Air Circulation.

FC specifications

  • MCU: 216MHz STM32F722
  • GYRO: MPU6 Series
  • Barometer: Yes
  • OSD: Yes
  • Blacbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Signal:8Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED/MB LED4 Set 2812 LED
  • I2C:Yes
  • F.Port: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25.2V)
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 2A ( System Power) & 5V 3A(LED)& 9V 2A
  • MOUNTING: 30.5mm,M3

ESC Specifications

  • INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
  • CONTINUE CURRENT:55A×4
  • BURST CURRENT:65A (10S)
  • BEC: No
  • TargetBLHeli_32 MAMBA F55_128K
  • SOFT: Dshot300/600/1200
  • PWM:24~128K
  • TVS Protection: Yes
  • MOUNTING: 30.5mm/M3


Package Contents

  • 2 x 8pin sh1.0
  • 1 x AMASS Original XT60
  • 1 x High Frequency 470uF/35V
Width:
6.00 (cm)
Height:
6.00 (cm)
Depth:
1.00 (cm)
Mounting:
30.5x30.5
CPU:
F7
Amps:
55
